Reach PoE4N/10G Tester Manual 1.1
© 2016-2020 Reach Technology, part of Novanta
All Rights Reserved
Information contained in this user documentation is subject to change without notice and does not
represent a commitment on the part of Reach Technology. Reach Technology assumes no
responsibility or liability for any errors or inaccuracies that may appear in the user
documentation.
Reach PoE4N/10G Tester Manual 1.1
Model RT-PoE4N/10G
Software Version 1.0 and above
June 15, 2020
06/15/2020
Reach Technology
www.reachtech.com
Sales
408-754-4176
sales@reachtech.com
Support
503-675-6464
techsupport@reachtech.com
Page 1
Advertisement
Table of Contents
Related Manuals for Reach Technology PoE4N/10G
Summary of Contents for Reach Technology PoE4N/10G
- Page 1 Information contained in this user documentation is subject to change without notice and does not represent a commitment on the part of Reach Technology. Reach Technology assumes no responsibility or liability for any errors or inaccuracies that may appear in the user documentation.
-
Page 2: Table Of Contents
BOOT ............................17 ECHO ............................18 PORT / GROUP PREFIX ......................18 CAL ............................18 CAP ............................18 CLASS ............................19 UPOE ............................19 CONNECT ..........................19 DETECT ............................ 20 EXT ............................20 Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 2... - Page 3 ) ............26 OWER TATUS AND OVERLOAD E) ............... 26 OWER TATUS AND OVERLOAD (IEEE 802.3 ) ............ 26 ATA TRANSMISSION UNDER POWER APPENDIX C - SPECIFICATIONS ..................27 ..................27 EASUREMENT PECIFICATIONS Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 3...
-
Page 4: Revision History
Revision History RT-PoE4N/10G - Base Model 1.1. The Model RT-PoE4N/10G is the initial version in production. It can be recognized by the version string as follows (see VERSION command; also seen on power-on). Reach PoE Tester Model RT-PoE4N/10G/24 PN 53-0004-11 Rev A 01 SW 1.03 11/01/2016 Copyright (C) 2005-2016 by Reach Technology Inc. -
Page 5: General

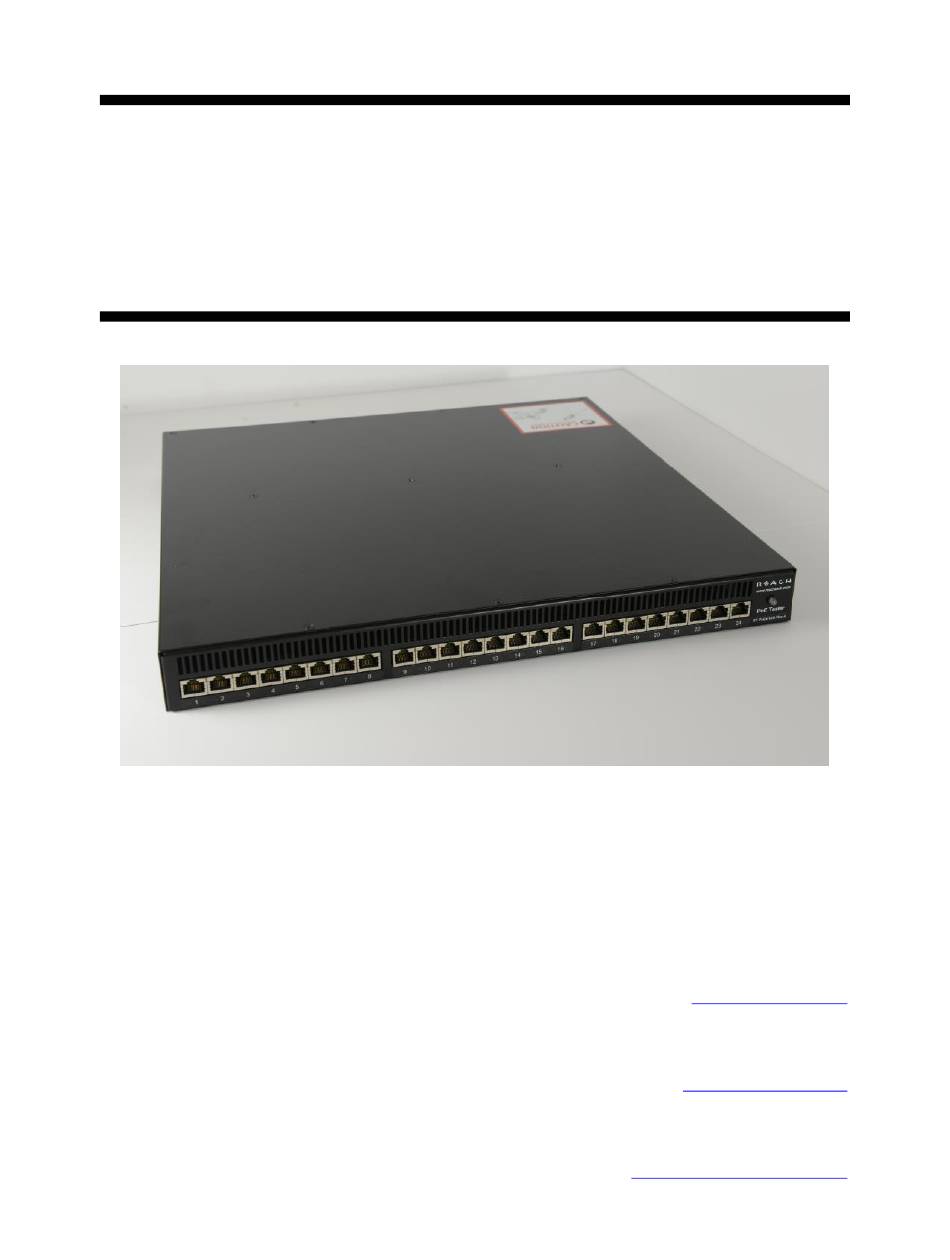

Powered Device (PD) loads in a 1U high chassis. Each RT-PoE4N/10G section has a “UUT” port (Unit Under Test). The UUT port is connected to the PSE and acts as a PD load to that port. The UUT data path is connected via power-isolating magnetics to the adjacent UUT port (1 to 2, 3 to 4, 5 to 6, etc.). -
Page 6: Features
1.74" high Electrical Characteristics 2.5. The RT-PoE4N/10G is powered via a locking power DIN 4 pin connector and requires 12V DC at a maximum of 8.5 Amps. The unit is supplied with a worldwide universal AC input power supply brick. Its characteristics are: 85-264VAC input, 87.5% efficient, 0 to 40C operation, IEC320/C14 input... -
Page 7: Configuration Guide
Reference section. Characters are echoed as they are typed (full duplex). RJ-45 Connector: Signal (DTE name) RS232 data output (TxD) Ground Ground RS232 data input (RxD) ** these signals are connected to each other Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 7... -
Page 8: Uut Connections
UUT Connections 3.3. The RT-PoE4N/10G has 24 test ports, configured as 12 pairs (1-2, 3-4, 5-6, etc.). Each port has the ability to act as a PD load to the UUT. In addition, each port pair can be configured to pass data from one port to the other via internal straight through connections, allowing the loads to be applied while passing traffic. -
Page 9: Connectors And Jumpers
RJ-45 Ethernet Connectors 4.1. Picture 2: Far left side of RT-PoE4N/10G front panel There are 24 numbered UUT ports. The RJ connector should be cabled to the corresponding PSE port using a standard Ethernet 1-1 jumper cable. When enabled via software command, the data component of the port N (N=1,3,5,…) will be connected to... -
Page 10: Ethernet Power Selection
The unit contains two separate power paths for pairs 1,2 / 3,6 and 4,5 / 7,8. These have the standard full wave bridge so any polarity is accepted. The voltage measurement function handles either polarity and can be used to validate the expected PSE port polarity. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 10... -
Page 11: Operational Overview
The data path section allows the UUT port data to be in two states: disconnected, or connected to the data of the next UUT port. This allows data to pass from port to port for testing. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 11... -
Page 12: Power Input
"connect" command Each UUT port can have either power pair measured (reported voltage can be positive or negative depending on polarity), or connected to the Full Wave Bridge and subsequent load circuits. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 12... -
Page 13: Signature, Class, And Load
(not shown) is charged and can be monitored via the “status” command. This command reports the status of each of the two PoE PD controllers. This will indicate which pairs are powered. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 13... -
Page 14: Fans
“power-good” status of the IEEE controller goes active. The “status” command can also be used to report the “power-good” status of each PoE PD controller. The yellow LED will be lit when a setting is changed on the port. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 14... -
Page 15: Ethernet Cables
(ports 1-2, 3-4, etc.). The data path connections are made through magnetics and signal relays for compatibility with Phy-based cable diagnostics. When passing 10GBASE-T traffic through the PoE4N/10G data path, it is important to consider the type of cable, plugs and jacks used as part of that link. -
Page 16: Command Reference
This section describes the commands available. For typical command sequences, see Appendix When the unit is ready for a command, it issues the default prompt "RT-PoE4N/10G>". The prompt may be changed via the "hostname" command so that a unit can be identified by its prompt. -
Page 17: Error Check
"Console baud set to 19200. Cycle power or issue Response: *boot to effect change." BOOT Description Resets the system to the power-on state. This is the same as if the unit has its power cycled. *boot Command Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 17... -
Page 18: Echo
Controls the 10uF capacitor across the full-wave bridge. This represents either a legacy capacitive signature or an AC load. cap [on|off] Command: printf(":p%d cap %d\r\n", port, state); Response: state = 1 or 0 for on and off respectively. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 18... -
Page 19: Class
“connect 0,1” is entered then only the alternate pair will be connected to the load. conn[ect] [on|off|0,0|0,1|1,0|1,1] Command: printf(":p%d Connect Sig %d\n", port, state); Response: state = 1 or 0 for on and off respectively. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 19... -
Page 20: Detect
The “Cisco” standard 1,2 = negative, 3,6 = positive is reported as a positive voltage. meas[ure] Command: printf(":p%d %d.%uV\n\r",port,fval); Response: The result will be between 0.0 and 60.0 p1 meas Example: Example response: :p1 50.5V, 0.0V<CR><LF> Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 20... -
Page 21: Measure2
<value> Command: printf(":p%d %dmA\r\n",port,value); Response: printf(":p%d %dmA (min)\r\n",port,value); g2 set 350 Example: Example response: :p9 350mA<CR><LF> :p10 350mA<CR><LF> :p11 350mA<CR><LF> :p12 350mA<CR><LF> :p12 350mA<CR><LF> :p14 350mA<CR><LF> :p15 350mA<CR><LF> :p16 350mA<CR><LF> Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 21... -
Page 22: Status
= 1 or 0 for on and off respectively. TEMPERATURE Description Reports the temperature of the drain pin of the MOSFET load, as measured on the line card PCB. temp[erature] Command: printf(":p%d %3d C\n", port, tempC); Response: Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 22... -
Page 23: Appendix A - Operational Notes
This takes around 10 seconds. While calibrating, the unit flashes the front panel LED and displays the following messages. The prompt "RT-PoE4N/10G>" indicates that the unit is ready for commands. RT-PoE4N/10G>”(revision dependent version string)”... -
Page 24: Error Messages
! invalid arguments Command argument(s) are invalid (other messages) There are other messages that begin with an exclamation point that are internal errors. If these appear, the unit needs to be repaired. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 24... -
Page 25: Appendix B - Test Setups
Appendix B - Test Setups Overview This Appendix gives an overview of basic test setups. No port or group prefixes are shown. PSE, PD as defined in IEEE 802.3af. The RT-PoE4N/10G commands are issued in the order shown. Signature Detect... -
Page 26: Power Status And Overload (Ieee 802.3Af)
Verify that PSE sees that device powers up. status (verify that power is ext on Run traffic test between port pairs 1 and 2, 3 and 4,…23 and 24. Verify no errors. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 26... -
Page 27: Appendix C - Specifications
5mA load guaranteed less than 5mA 10mA load guaranteed greater than 10mA Current setting, class load ± 2% or ±0.5mA whichever is greater All specifications subject to change at any time without notice. Reach PoE4N/10G Tester Manual 1.1 06/15/2020 Page 27...
