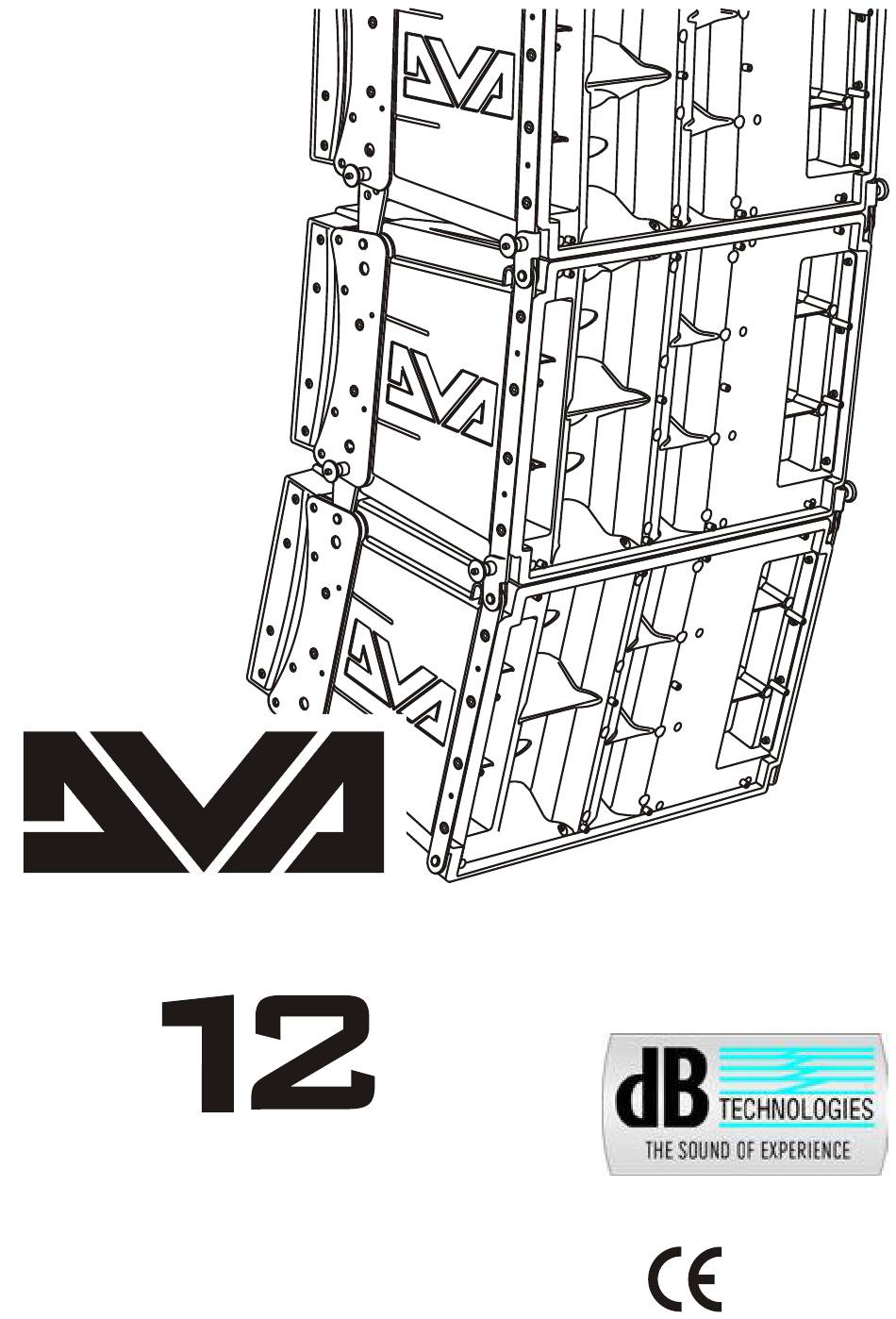

- Page 1 Digital Vertical Array Digital Vertical Array MANUALE d’USO - Sezione 1 USER MANUAL - Section 1 BEDIENUNGSANLEITUNG - Abschnitt 1 CARACTERISTIQUES TECHNIQUES - Section 1 Made in Italy COD. 420120184 Rev 3.0...
- Page 2 100° 10° DVA Network DVA T12 is equipped with proprietary network interface, called RDNET, for PC interface through a device (RDNET control). For this purpose, a proprietary communication protocol has been developed for receiving and sending data; this connection permits real-time monitoring of the diffuser parameters, such as output power, amplifier temperature, limiter status, etc...
-
Page 3: Controls And Functions
CONTROLS AND FUNCTIONS "Balanced Audio" section " INPUT” INPUT CONNECTOR Balanced input at line level. It is able to accept “XLR” sockets. "LINK” OUTPUT CONNECTOR The “XLR” connector connected in parallel with input (1) can be used to send the input audio signal to another amplified speaker. - Page 4 Refer to the table for the correspondence of the equalization curve. 14) “Service Data USB” Connector Via this USB connector, it is possible to update the firmware of the DVA T12 amplifier module using the computer and a dedicated program.
- Page 5 CHARACTERISTICS AND PROTECTION Front Grille The speakers’s components in the box are protected by 1.2mm metal steel grille covered by foam on backside. Cooling Thermal control is managed by the main microprocessor that interacts with the local microprocessors (amplifiers and power supply) and communicates the data to the DSP for any corrections.
-
Page 7: Technical Specification
TECHNICAL SPECIFICATION System Active 3-Amps Type of amplifier Digital - Class D DIGIPRO G2 technology RMS power 1410W High (HF) RMS 350W Mide (MF) RMS 350W Low (LF) RMS 710W Musical power 2820W Frequency response (-6dB) 60-19.000Hz Crossover MF-HF (Mid-High) 1900Hz 24dB/Oct Crossover LF-MF (Low-Mid) -
Page 8: Configuration System
DVA T12 QUICK CONFIGURATIONS RESPONSE NAME CURVE Flat Response Front Field CONFIGURATION SYSTEM N U M B E R SHAPE ANGLES OF BOXES STRAIGHT from 0° to 1,5° CURVED from 3° to 10° STRAIGHT from 0° to 1,5° CURVED from 3° to 10°... -
Page 9: Setup Examples
SET-UP EXAMPLES °OF BOXES: °OF BOXES: set-up 2 set-up 6 set-up 6 set-up 2 set-up 3 set-up 6 set-up 3 set-up 6 set-up 6 set-up 7 set-up 7 set-up 7 set-up 8 set-up 8... - Page 10 DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS...
- Page 11 SCHEMA A BLOCCHI - BLOCK DIAGRAM BLOCKSCHALTBILD - SCHEMAS FONCTIONNELS...
- Page 12 DRK 10 accessorio Accessory DRK 10 Appeso Hanging on Appeso INSTALLAZIONE INSTALLATION Hanging on INSTALLATIONEN INSTALLATIONS Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6...
- Page 13 Phase 7 Phase 8 Phase 9 Phase 10 INCLINAZIONE INCLINATION NEIGUNG INCLINAISON 6° DVA T12 6°...
- Page 14 DRK 10 accessorio Accessory DRK 10 Appeso Hanging on Appeso INSTALLAZIONE INSTALLATION Hanging on INSTALLATIONEN INSTALLATIONS Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6...
- Page 15 Phase 5 Phase 6 INCLINAZIONE INCLINATION NEIGUNG INCLINAISON 6° DVA T12 5° 5° 5° 5° 2,5° 2,5° 2,5° 2,5° 0° 0° 0° 0° -2,5° -2,5° -2,5° -2,5° -5° -5° -5° -5° -7,5° -7,5° -7,5° -7,5° GROUND STACKED GROUND STACKED USE ONLY...
- Page 16 DVA T12 + DVA S30 (DRK-10 support) Utilizzo in appoggio verticale (DVA T4 montaggio “Ground stacking”) Supported use (DVA T4 ““Ground stacking” assembling)
- Page 17 SICHERHEITSHINWEISE / I NSTRUCTIONS DE SÉCURITÉ POUR LES ACCESSOIRES Contattare dB Technologies per gli accessori da utilizzare a corredo. Si declina ogni responsabilità da un utilizzo inappropriato degli accessori o di dispositivi aggiuntivi non idonei allo scopo. Contact dB Technologies for accessories to be used with speakers.
- Page 18 A.E.B. INDUSTRIALE s.r.l. Via Brodolini, 8 - 40056 Crespellano (Bo) - ITALIA Tel. + 39 051 969870 - Fax. + 39 051 969725 Internet: www.dbtechnologies.com E-mail: info@dbtechnologies-aeb.com...
