FINE (Analog input only)
Improves focus, clarity and image stability by increasing or decreasing the setting.
If the [AUTO ADJUST] and [H.SIZE] functions do not give you a satisfactory picture setting, fine tuning can be
performed by using the [FINE] function.
A Moiré test pattern can be used for this. If the [FINE] value is incorrectly calibrated, the result would look like the left
drawing. The image should be homogeneous.
INPUT RESOLUTION (Analog input only)
Selects one of the following pair of resolutions as the input signal priority:
1360 x 768 or 1280 x 768 or 1024 x 768 (vertical resolution 768),
1600 x 900 or 1280 x 960 (horizontal frequency 60kHz),
1680 x 1050 or 1400 x 1050 (vertical resolution 1050).
VIDEO LEVEL (HDMI input only)
NORMAL: Setting for use with a computer. Displays all input signals of 0-255 steps.
EXPAND: Setting for use with audio visual equipment. Expands input signals of 16-235 steps to 0-255 steps.
OVER SCAN (HDMI input only)
Some video formats may require different scanning modes in order to best display the image.
ON: Image size is larger than what can be displayed. The image edge will appear cropped. Approximately 95% of the
image will be shown on the screen.
OFF: Image size stays within the display area. The whole image is displayed on the screen.
EXPANSION
Sets the zoom method.
FULL: The image is expanded to full screen regardless of the resolution.
ASPECT: The image is expanded without changing the aspect ratio.
Note: The resolution of 1280x768, 1360x768, 1280x720 and 1920x1080 are always [FULL] (EA231WU only).
Color
Color Control System: Color presets are available for adjusting color settings.
1, 2, 3, 4, 5: Increases or decreases the [RED], [GREEN] or [BLUE] color depending upon which is selected.
The change in color will appear on screen and the direction (increase or decrease) will be shown by the bars.
sRGB (color preset mode [4]) dramatically improves the color fidelity in the desktop environment by a single standard
RGB color space. With this color-supported environment, the operator could easily and confidently communicate color
without further color management overhead in most common situations.
NATIVE: The LCD panel's original colors that cannot be adjusted.
L/B (LOW BLUE LIGHT): Reduces blue light emitted from monitor. This item cannot be adjusted.
NOTE: You can directly change to [L/B] (LOW BLUE LIGHT) mode by touching the [INPUT] key for 3 seconds
or more. For changing to other settings from [L/B] mode, touch the [MENU] key to show OSD menu
and enter [Color Control System].
When [L/B] is selected in [Color Control System], [CONTRAST] and [DV MODE] are disabled.
DICOM SIM.: The white point color temperature and the gamma curve are set to a DICOM simulation. This item cannot
be adjusted.
PROGRAMMABLE: The gamma curve is adjustable through application software.
NOTE: When [MOVIE], [GAMING] or [PHOTO] is selected as the [DV MODE], [NATIVE] is selected
automatically and cannot be changed.

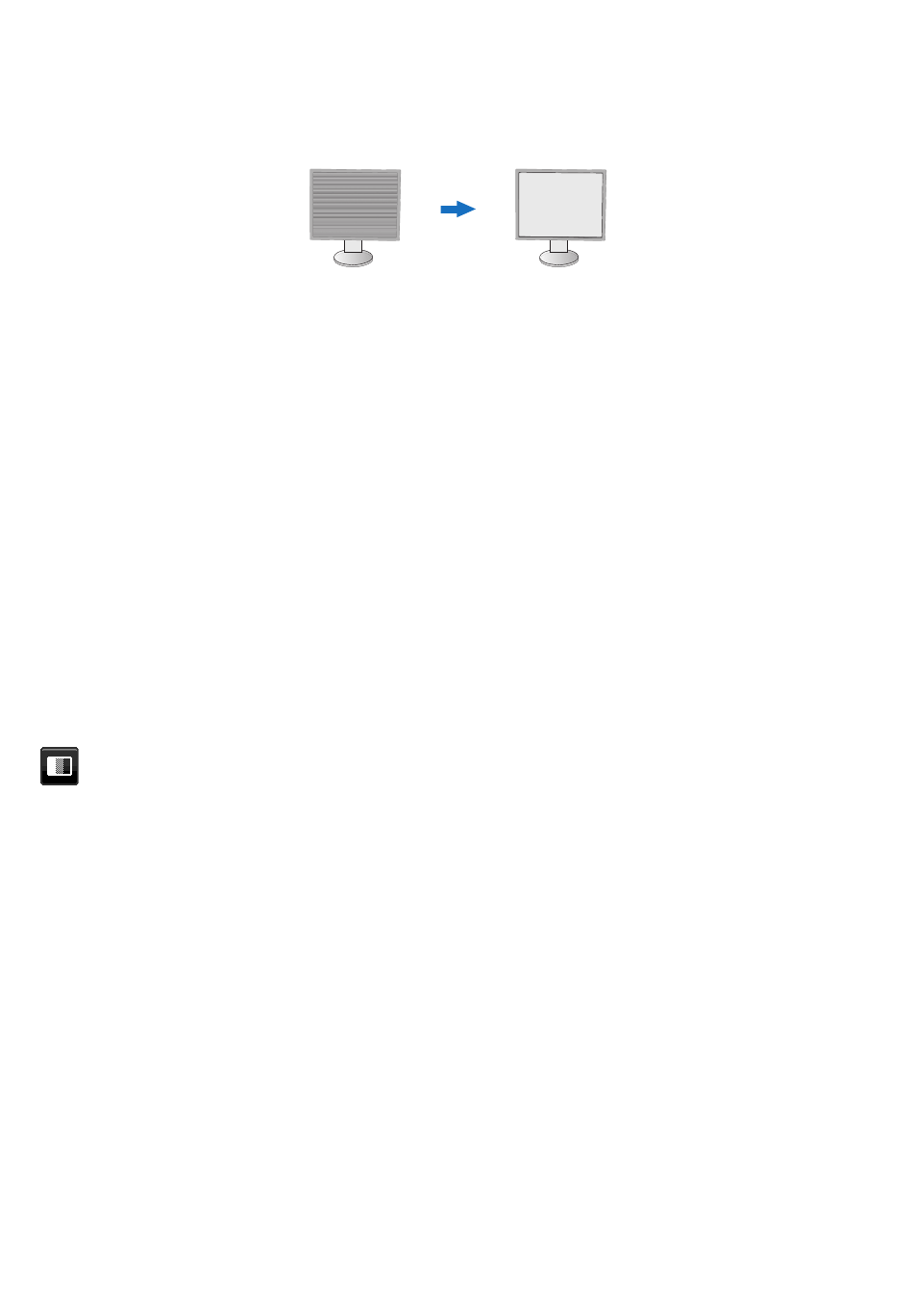

When [FINE] value is
wrong.
English-16
When [FINE] value is
correct.
