© 2017 Johnson Health Tech. All Rights Reserved. Specifications subject to change without notice.

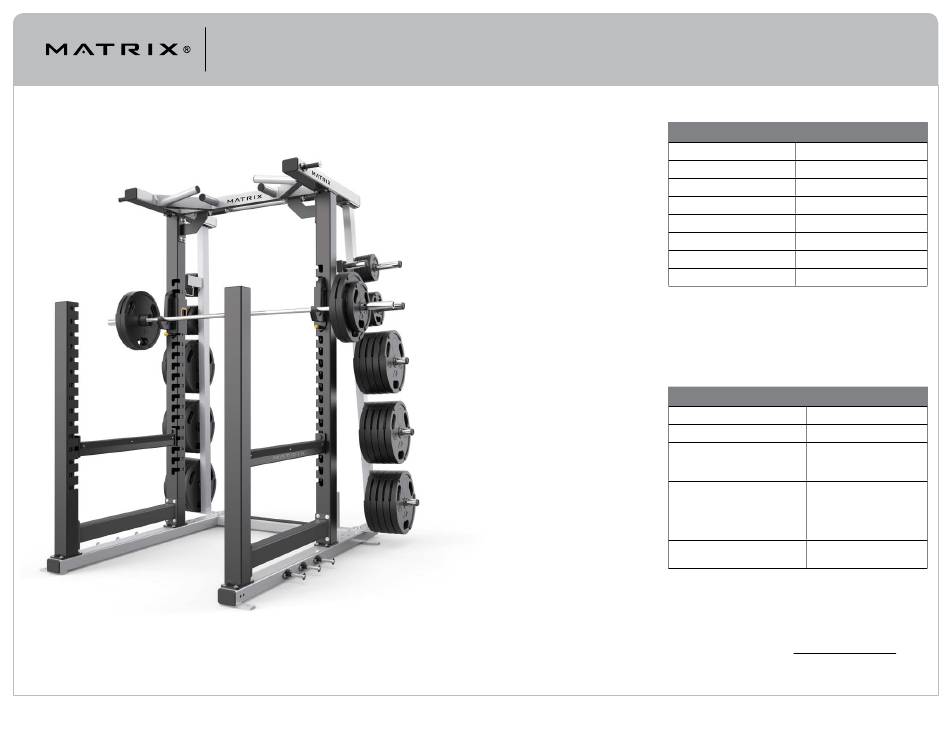

M AG N U M SER IE S

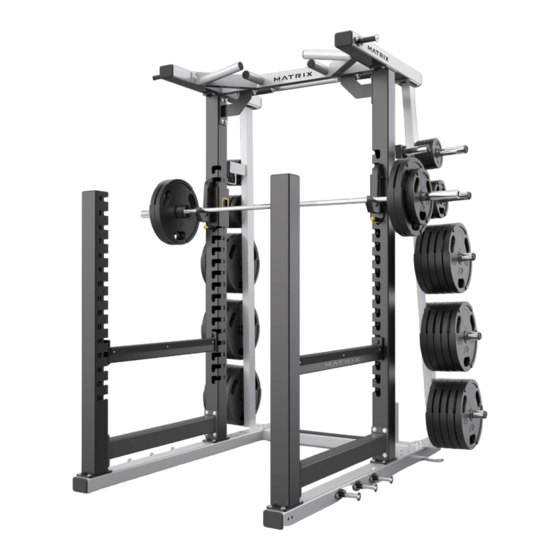

MG-MR694-04 / MEGA OPEN RACK
PROPER USAGE
1.
Do not exceed weight capacity of this
equipment.
2.
If applicable, set safety stops to
appropriate height.
3.
If applicable, adjust seat pads, leg
pads, foot pads, range of motion
adjustment, or any other type
of adjustment mechanisms to a
comfortable start position. Make
certain that the adjusting mechanism is
fully engaged to prevent unintentional
movement and to avoid injury.
4.
Sit on bench (if applicable) and get into
appropriate position for exercise.
5.
Exercise using no more weight than
you can safely lift and control.
6.
In a controlled manner, perform
exercise.
7.
Return weight to its fully-supported
start position.
Maintenance CHECKLIST
ACTION
FREQUENCY
Clean Upholstery *
Daily
Inspect Cables
Daily
Clean Guide Rods
Monthly
Inspect Hardware
Monthly
Inspect Frame
Bi-Annually
Clean Machine
As Needed
Clean Grips *
As Needed
Lubricate Guide Rods †
As Needed
* Upholstery & Grips should be cleaned with a mild soap and water or
a non-ammonia based cleaner.
† Guide rods should be lubricated with Teflon based lubricant. Apply the
lubricant to a cotton cloth and then apply up and down the guide rods.
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight
181.5 kg / 400 lbs.
Maximum Training Weight
408.5 kg / 900 lbs.
Product Weight
MG-MR694-04 (8 ft)
249.5 kg / 550 lbs.
MG-MR694-9-04 (9 ft)
356 kg / 784 lbs.
Overall Dimensions (L x W x H)*
MG-MR694-04 (8 ft)
206 x 207 x 246.5 cm /
81" x 81.5" x 97"
MG-MR694-9-04 (9 ft)
205 x 207 x 277 cm /
81" x 81.5" x 109"
Weight Horn Diameter
47.63 mm / 1.875"
(Weight Plate Storage)
* Ensure a minimum clearance width of 0.6 meters (24") for access to
and passage around MATRIX strength equipment. Please note, 0.91
meters (36") is the ADA recommended clearance width for individuals
in wheelchairs.
WARRANTY
For North America, please visit www.matrixfitness.com
for warranty information along with warranty exclusions
and limitations.
Rev 1.2
