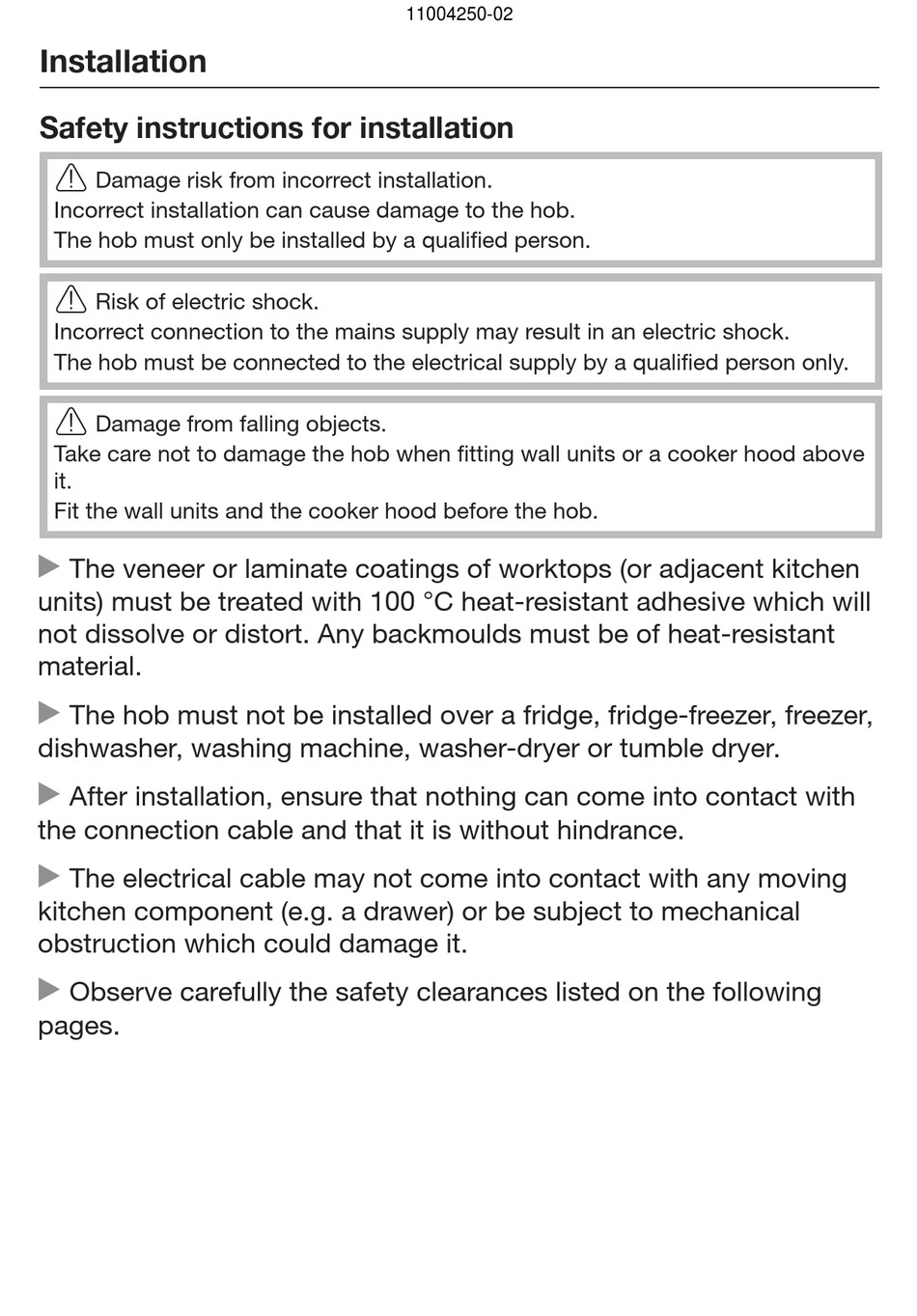

Installation
Safety instructions for installation
Damage risk from incorrect installation.
Incorrect installation can cause damage to the hob.
The hob must only be installed by a qualified person.
Risk of electric shock.
Incorrect connection to the mains supply may result in an electric shock.
The hob must be connected to the electrical supply by a qualified person only.
Damage from falling objects.
Take care not to damage the hob when fitting wall units or a cooker hood above
it.
Fit the wall units and the cooker hood before the hob.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100 °C heat-resistant adhesive which will
not dissolve or distort. Any backmoulds must be of heat-resistant
material.
The hob must not be installed over a fridge, fridge-freezer, freezer,
dishwasher, washing machine, washer-dryer or tumble dryer.
After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
The electrical cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
Observe carefully the safety clearances listed on the following
pages.
11004250-02

Advertisement

loading

Related Manuals for Miele KM 6565 FR

Summary of Contents for Miele KM 6565 FR

  • Page 1 *INSTALLATION* 11004250-02 Installation Safety instructions for installation  Damage risk from incorrect installation. Incorrect installation can cause damage to the hob. The hob must only be installed by a qualified person.  Risk of electric shock. Incorrect connection to the mains supply may result in an electric shock. The hob must be connected to the electrical supply by a qualified person only.
  • Page 2 *INSTALLATION* 11004250-02 Installation Safety distances Safety distance above the hob The safety distance specified by the manufacturer of the cooker hood must be maintained between the hob and the cooker hood above it. If combustible objects are installed above the hob (e.g., cabinets, utensil rail, etc.), a minimum safety distance of 600 mm must be maintained.
  • Page 3 *INSTALLATION* 11004250-02 Installation Safety distances to the sides and back of the appliance It is advisable to install the hob with plenty of space either side of it. The minimum distance  shown below must be maintained between the back of the hob and a tall unit or wall.
  • Page 4 *INSTALLATION* 11004250-02 Installation Interim shelf It is not necessary to fit an interim shelf underneath the hob but one may be fitted if you wish. If an interim shelf is fitted under the hob, there must be a minimum gap of 110 mm between the top of the worktop and the top of the shelf.
  • Page 5 *INSTALLATION* 11004250-02 Installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e.g. wood) a minimum safety distance ...

  • Page 6: Installation Notes

    *INSTALLATION* 11004250-02 Installation Tiled worktops Installation notes Seal between the hob and the worktop Grout lines  and the hatched area underneath the hob frame must be smooth and even. If they are not the hob will not sit flush with the worktop and the sealing strip underneath the ...

  • Page 7: Building-In Dimensions

    *INSTALLATION* 11004250-02 Installation Building-in dimensions All dimensions are given in mm. KM 6565 FR a Front b Mains connection box with mains connection cable Mains connection cable L = 1.440 mm c WiFi stick connection d Spring clamps...

  • Page 8: Installation

    *INSTALLATION* 11004250-02 Installation Secure the spring clamps Installation The exact positioning of the spring Preparing the worktop clamps is shown in the individual hob  Create the worktop cut-out. diagrams. Remember to maintain the minimum safety distances (see “Installation – Wooden worktops Safety distances”).
  • Page 9 *INSTALLATION* 11004250-02 Installation Natural stone worktops Install the hob You will need heavy duty double-sided  Feed the mains connection cable for adhesive tape (not included with the the hob down through the worktop hob) to fasten the spring clamps. cut-out.

  • Page 10: Electrical Connection

    The connection data is quoted on the maintenance and repairs can cause data plate. Please ensure these match considerable danger for the user. the household mains supply. Miele cannot be held liable for Please see wiring diagrams for damage or injury caused by connection. unauthorised installation,...
  • Page 11 The mains cable must only be replaced by a qualified electrician. When replacing the mains cable only use cable type H 05 VV-F with a suitable cross section. A suitable connection cable is available from your Miele dealer.
  • Page 12 *INSTALLATION* 11004250-02 Installation Wiring diagram Some connection methods are not permitted in all installation locations. Ensure compliance with national regulations and any additional regulations issued by the local electricity provider.
