Visit the Frigidaire Web Site at:
http://www.frigidaire.com

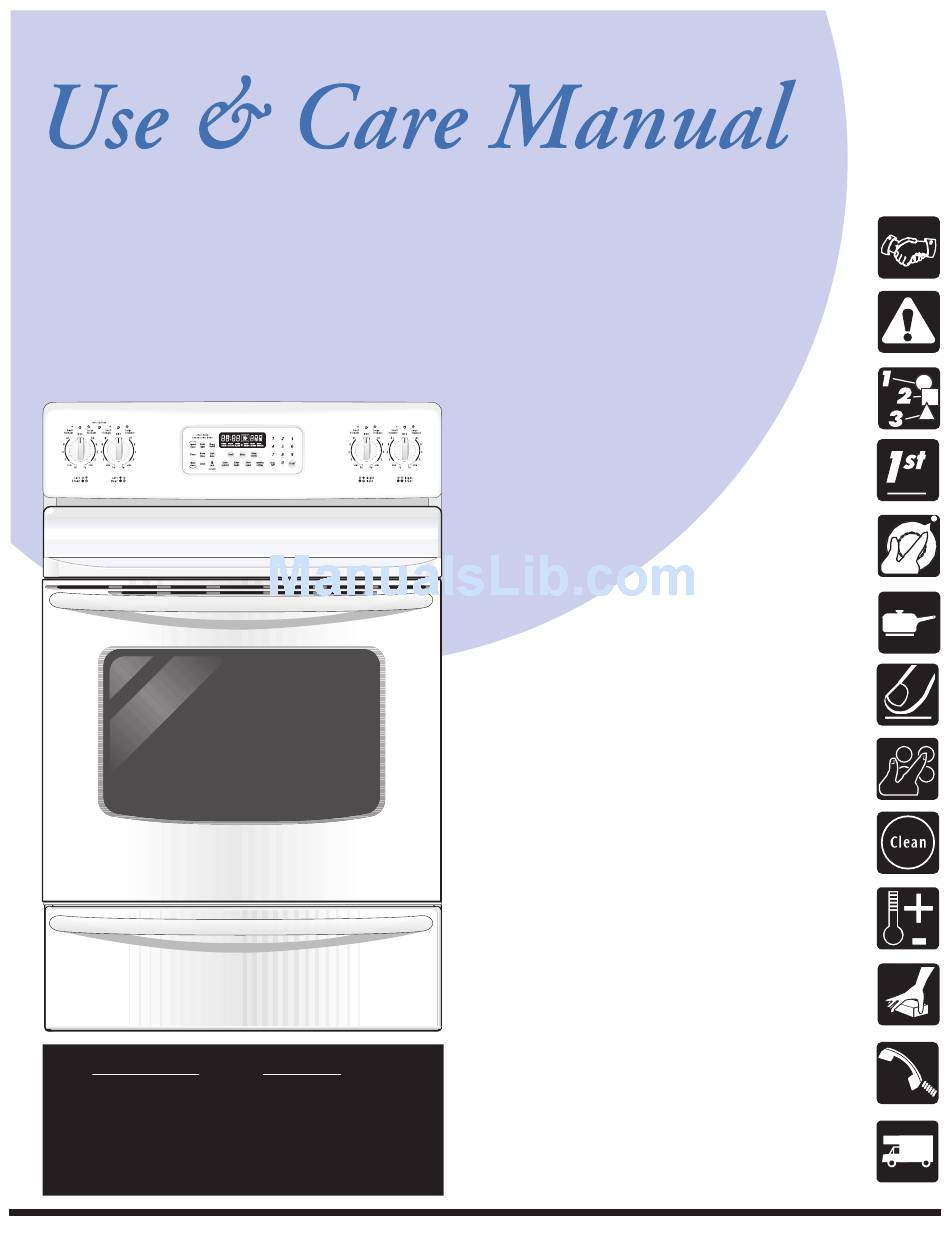

Electric
Range
Welcome .......................................... 2
ES510 Control, Self-Cleaning Oven
Important Safety Instructions .....3-4
with Ceramic Cooktop
Features at a Glance ...................... 5
Before Setting Oven Controls ....... 6
Setting Surface Controls ............... 7
Surface Cooking............................. 8
Control Pad Features ..................... 9
Setting Oven Controls ............ 10-23
Self-Cleaning .......................... 24-26
Adjusting Oven Temperature ....... 27
General Care & Cleaning ....... 27-30
Questions or for Service Call:
31
1-800-944-9044
Solutions to Common Problems ........................
(U.S.)
1-800-668-4606
(Canada)
Warranty ......................... Back Page
READ AND SAVE THESE INSTRUCTIONS
p/n 316417023 (0603)
Advertisement
Table of Contents
Related Manuals for Frigidaire GLEF387FCC
Summary of Contents for Frigidaire GLEF387FCC
-
Page 1: Table Of Contents
Visit the Frigidaire Web Site at: http://www.frigidaire.com Electric Range Welcome ... 2 ES510 Control, Self-Cleaning Oven Important Safety Instructions ...3-4 with Ceramic Cooktop Features at a Glance ... 5 Before Setting Oven Controls ... 6 Setting Surface Controls ... 7 Surface Cooking... -
Page 2: Welcome
Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases. PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS This Use &... -
Page 3: Important Safety Instructions
Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency. • User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals. - Page 4 • Do Not Clean Door Gasket—The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket. •The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.
-
Page 5: Features At A Glance
Your Electric Range Features Include: 1. Electronic Oven Control with Kitchen Timer. 2. Left Front Element Control (some models) or Dual Element Control (some models). 3. Left Rear Single Element Control (some models) or Dual Element Control (some models). 4. Right Rear Element Control (some models) or Dual Element Control (some models). -
Page 6: Before Setting Oven Controls
Turkey, roast or ham use Roasting Shelf (some models) Types of Oven Racks & Roasting Shelf Your range may be equipped with one or more of the oven rack types shown; Flat Oven Rack (Fig. 5) and Roasting Shelf (Fig. 6; some models). -
Page 7: Setting Surface Controls
Element ON & Hot Surface Indicator Lights Your appliance is equipped with two different types of radiant surface control indicator lights that will glow on your range— the Element ON indicator lights and the Hot Surface indicator light (Refer to Fig. 3). -
Page 8: Surface Cooking
Suggested Radiant Surface Element Settings Table The suggested settings found in Fig. 1 are based when cooking with medium-weight aluminum pans with lids. Settings may vary when using other types of pans. Note: The size and type of utensil used, and the amount and type of food being cooked will influence the setting needed for best cooking results. -
Page 9: Control Pad Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Manual. OVEN LIGHT—Use to turn the... -
Page 10: Setting Oven Controls
12 or 24 hour time of day operation. The clock has been preset at the factory for the 12 hour operation. When the range is first plugged in, or when the power supply to the range has been interrupted, the timer in the display will flash with power failure "PF"... - Page 11 Setting Continuous Bake or 12 Hour Energy Saving The TIMER ON/OFF and CLEAN control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking. INSTRUCTIONS To set the control for Continuous Bake or 12 Hour Energy Saving features:...
- Page 12 Setting Oven Lockout Feature pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the Warming Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven light.
- Page 13 INSTRUCTIONS To change control from normal sound operation to silent control operation: 1. To tell if your range is set for normal or silent operation press and hold for 7 seconds. "0:00" will appear and "DELAY" will flash in the display (Fig. 1).
- Page 14 Setting Bake The BAKE pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F). INSTRUCTIONS To set the Bake Temperature to 350°F: 1. Arrange interior oven racks and place food in oven. 2.
- Page 15 Setting Timed Bake The BAKE and BAKE TIME will turn the oven OFF after cooking for the desired amount of time you selected. INSTRUCTIONS To program the oven to begin baking immediately and to shut off automatically: (example below to bake at 350°F for 50 minutes): 1.
- Page 16 Setting Delayed Timed Bake The BAKE , BAKE TIME and START TIME timer of the Delayed Timed Bake will turn the oven ON and OFF at the time you select in advance. INSTRUCTIONS To program the oven for a Delay Start (Delayed Timed Bake) and to shut off automatically (example for baking at 350°F for 50 minutes and starting at 5:30): 1.
- Page 17 Setting Broil pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature between 400°F and 550°F.
- Page 18 Benefits of Convection Bake: —Some foods cook up to 25 to 30% faster, saving time and energy. —Multiple rack baking. —No special pans or bakeware needed. Setting Convection Bake The CONV BAKE pad controls the Convection Bake feature. Use the Convection Bake feature when cooking speed is desired. The oven can be programmed for Convection Bake at any temperature between 325°...
- Page 19 Setting Convection Roast The CONV ROAST pad is designed to give optimum cooking performance for this feature. The Convection Roast pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is not necessary for meats and poultry.
- Page 20 To set the Convection Convert Feature CONV CONVERT pad is used to automatically convert a standard baking recipe for convection baking. When set properly, this feature is designed to display the actual converted (reduced) temperature in the display. Convection Convert may ONLY be used with a Bake, Timed Bake or a Delayed Timed Bake setting. When used with a Timed Bake or a Delayed Timed Bake setting, the Convection Convert feature will display a "CF"...
- Page 21 Using the Favorite Settings Feature FAVORITE SETTING pad is used to record and recall your favorite recipe settings. This feature may store and recall from 1 to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake. This feature will not work with any other function including a Delayed Timed Bake setting.
- Page 22 Setting the Sabbath Feature (for use on the Jewish Sabbath & Holidays) BAKE TIME and START TIME pads are used to set the Sabbath feature. The Sabbath feature can only be used with the pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly change and no audible tones will be provided when a change occurs.
- Page 23 Setting the Sabbath Feature (cont’d) It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than the oven control can accept.
-
Page 24: Self-Cleaning
During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range. - Page 25 2 hours (using Speed Clean), 3 hours (using Clean) to 4 hours (using Maxx Clean). During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave small children unattended near the appliance.
- Page 26 INSTRUCTIONS When the Self-Clean cycle is done: 1. The time of day,"DOOR LOCKED" and "CLEAN" icon will remain in the display. 2. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" icon is no longer displayed, the oven door can then be opened.
-
Page 27: Adjusting Oven Temperature
4. Replace glass shield over bulb and snap wire holder into place. 5. Turn power back on again at the main source (or plug the range back in). 6. The clock will then need to be reset. To reset, see Setting the Clock. -
Page 28: Cleaning Table
Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may Insert (some models), become damaged during future heating. DO NOT use spray oven cleaners on the range top. Door Liner & Body Parts, Oven Bottom, Warming Drawer For Warming Drawer removal see Removing &... - Page 29 Prior to using your cooktop for the first time, apply the recommended cooktop cleaning cream to the ceramic surface (visit www.frigidaire.com for replacement cleaner). Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
-
Page 30: General Care & Cleaning
General Care & Cleaning Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean. •... -
Page 31: Before You Call
Range is not level - (1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range. -
Page 32: Warranty
Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
