Model W1767
***IMPORTANT UPDATE***
Applies to Models Mfd. Since 6/18
and Owner's Manual Revised 4/14
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
We made the following change to this machine since the manual was printed:
•
Updated Stand parts breakdown.
Aside from the information contained in this update, all other content in the owner's manual is
applicable and MUST be read and understood for your own safety.
IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further
questions, contact our Technical Support.

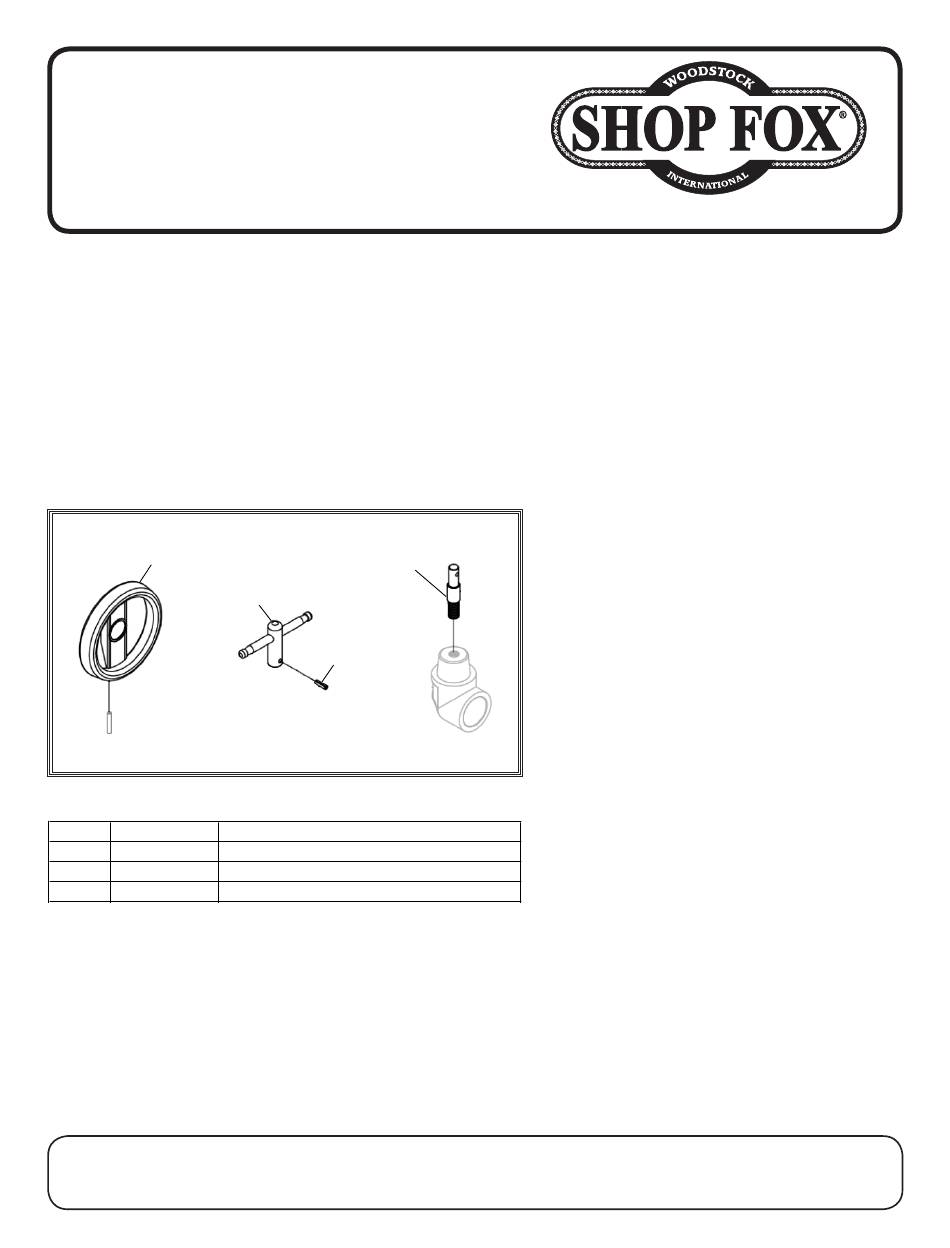

Revised Stand Parts Breakdown
163V2
REF
PART #
DESCRIPTION
104V2
X1767104V2
T-HANDLE V2.06.18
134
X1767134
ROLL PIN 6 X 22
141V2
X1767141V2
SHOULDER LOCK STUD V2.06.18
163V2
X1767163V2
CRANK HANDWHEEL V2.06.18
