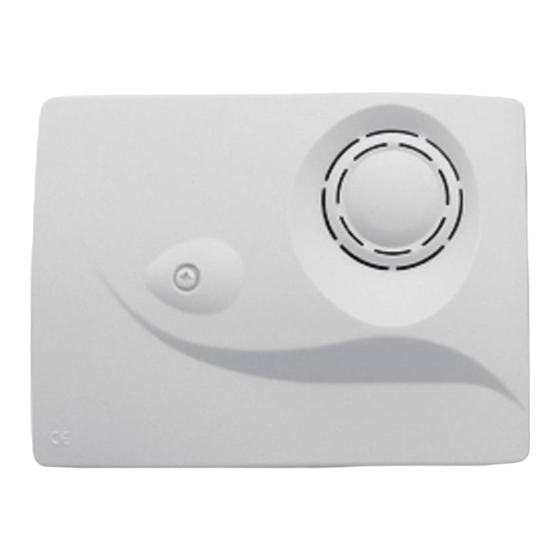

Altec SIRYNX RF Quick Start Manual

Range of wireless sirens 869 MHz
Made in FRANCE
This quick start guide allows quickly installing the PILOTE RF and its sirens in the factory settings.
For any other operation, please see the complete technical manual.

1- INSTALLATION

SIRYNX RF

2- CONNECTION OF THE SIRENS BATTERIES

Connect imperatively two batteries to the electronic card to ensure the autonomy of the
SIRYNX RF and of the SIRUS RF.

3- DESCRIPTION OF THE CONNECTION TERMINAL OF THE PILOTE RF

DC
Charge
OUTPUTS
INPUTS
A.P.
All manuals and user guides at all-guides.com
REQUESTED MOUNTING DIRECTION
SIRUS RF
TOP
SIRYNX RF
BATTERIES
CONNECTORS
The power 12V continues to be supplied by an uninterruptible power supply
0V
with limited power.
+12V
Output for supervision failure (by default = 0V)
1
Output for the failure of sirens low battery (by default = 0V)
2
Output for the failure of the PILOTE RF batteries (default = 0V)
3
Input of command configurable
CMD
Factory settings : Information Arm/Disarm
Input of sirens blocking configurable
BL.SIR
Factory settings : Triggering of all the sirens
Tamper protection
TAMPER
N O T D E M 0 U K 0 0 0 0 3 9 - V 1 . 0 1
QUICK START GUIDE
TOP
CAUTION
MANDATORY
Get the wires to
the bottom of
the housing
Alarm by disappear of 12V
Alarm by disappear of 12V
PILOTE RF
TOP
SIRUS RF
BATTERIES
CONNECTORS
