Altec SIRYNX RF Quick Start Manual

Range of wireless sirens 869 mhz

Advertisement

Range of wireless sirens 869 MHz
Made in FRANCE

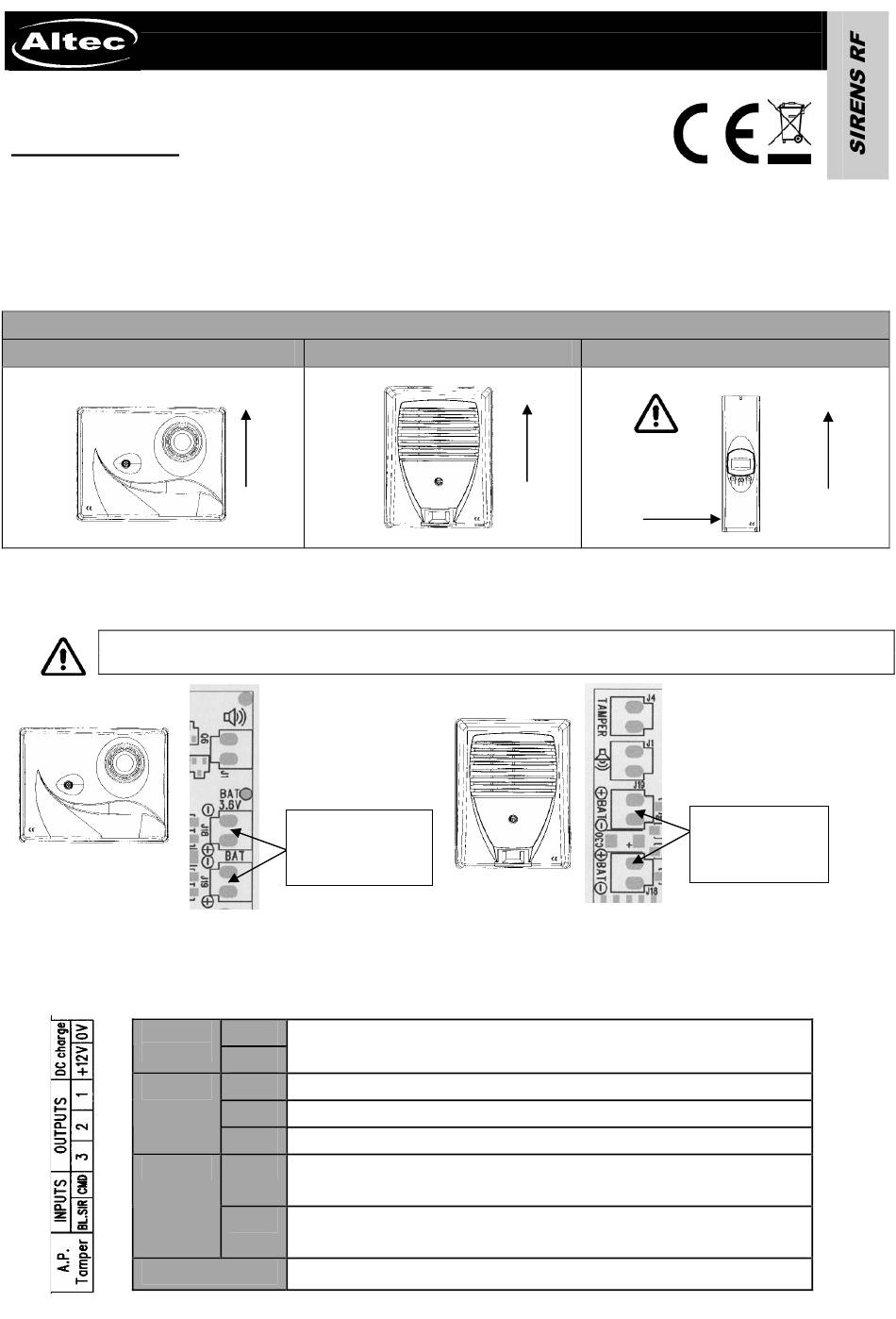

This quick start guide allows quickly installing the PILOTE RF and its sirens in the factory settings.
For any other operation, please see the complete technical manual.

1- INSTALLATION

SIRYNX RF

2- CONNECTION OF THE SIRENS BATTERIES

Connect imperatively two batteries to the electronic card to ensure the autonomy of the
SIRYNX RF and of the SIRUS RF.

3- DESCRIPTION OF THE CONNECTION TERMINAL OF THE PILOTE RF

Charge
OUTPUTS
INPUTS
A.P.
REQUESTED MOUNTING DIRECTION
TOP
SIRYNX RF
BATTERIES
CONNECTORS
The power 12V continues to be supplied by an uninterruptible power supply
DC
0V
with limited power.
+12V
Output for supervision failure (by default = 0V)
1
Output for the failure of sirens low battery (by default = 0V)
2
Output for the failure of the PILOTE RF batteries (default = 0V)
3
Input of command configurable
CMD
Factory settings : Information Arm/Disarm
Input of sirens blocking configurable
BL.SIR
Factory settings : Triggering of all the sirens
Tamper protection
TAMPER
QUICK START GUIDE
SIRUS RF
TOP
Alarm by disappear of 12V
Alarm by disappear of 12V
N O T D E M 0 U K 0 0 0 0 3 9 - V 1 . 0 1
PILOTE RF
CAUTION
MANDATORY
Get the wires to
the bottom of
the housing
SIRUS RF
BATTERIES
CONNECTORS
TOP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIRYNX RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Altec SIRYNX RF

  • Page 1 Get the wires to the bottom of the housing 2- CONNECTION OF THE SIRENS BATTERIES Connect imperatively two batteries to the electronic card to ensure the autonomy of the SIRYNX RF and of the SIRUS RF. SIRUS RF SIRYNX RF BATTERIES BATTERIES...
  • Page 2 4- ADD A SIREN To add a new siren on the PILOTE_RF, following the procedure: Supply the Connect the two PILOTE RF sirens batteries Push VALID Remove >ADD< Remove cover >SIREN< COVER Push VALID Waiting phase Push the siren The siren flashes pushing the siren button and beeps...
