INDUSTRIAL DC80
Non-Contact DC Voltage Tester
PATENT PENDING
Scan code for
product training
Operator Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AS SAFETY INDUSTRIAL DC80 and is the answer not in the manual?

Questions and answers

Related Manuals for GL McGAVIN AS SAFETY INDUSTRIAL DC80

  • Measuring Instruments GL McGAVIN ModieLamp Manual
    Measuring Instruments GL McGAVIN ModieLamp Manual
    Digital lamp and phase sequence meter, low input impedance, phase sequence testing, dangerous voltage alarm, 4.5-digit 6000 count lcd resolution, peak voltage capture mode, hold voltage reading mode, high accuracy true rms readings (17 pages)

Summary of Contents for GL McGAVIN AS SAFETY INDUSTRIAL DC80

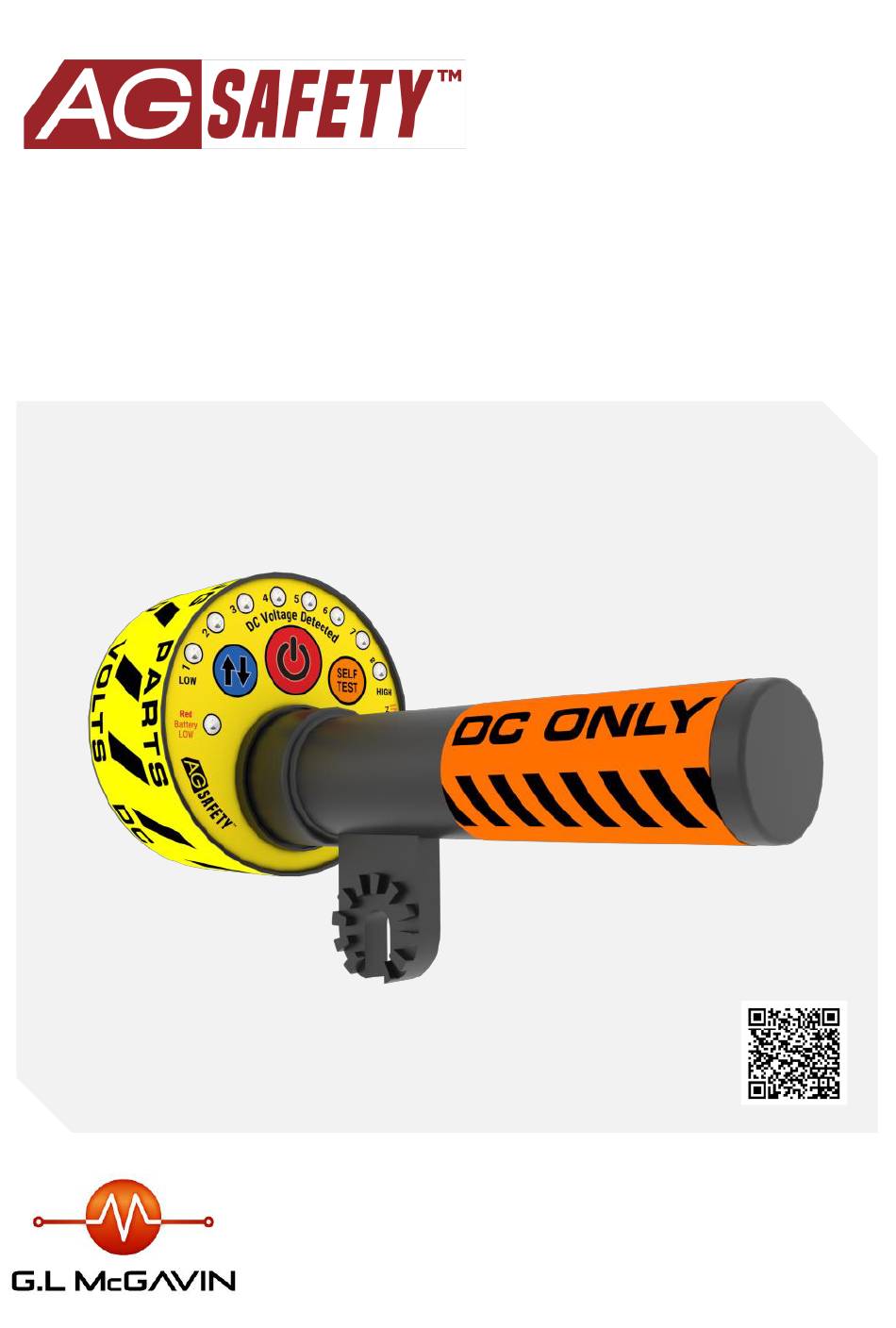

  • Page 1 INDUSTRIAL DC80 Non-Contact DC Voltage Tester PATENT PENDING Scan code for product training Operator Manual...
  • Page 2 Warning High voltage testing should only be carried out by trained personnel. Do not hold this instrument in your hand when testing uninsulated voltages above 300VDC. Fiberglass Operating sticks must be used. -------------- This device is for indication only and should only be used by trained personnel on the safe operations of the device.
  • Page 3 DC80 Touchpad...
  • Page 4 DC80 Kit...
  • Page 5 DC80 Unit Operations Turn on the device, press the Power Button. A single LED will illuminate Press the green start self-test button. The unit is now operational. SELF TEST button can be applied at any time the Indicator is functioning By pressing the blue arrow up and arrow down button, the single illuminated...

  • Page 6: How To Test

    How to Test Rub the foam lid of the case with your hand to build up static electricity (the more you rub the higher the voltage charge will be) 2000 volts + can be generated. Turn the indicator on and approach the lid, the Indicator will light up as you approach the lid of the case.
  • Page 7 Approach A known live conductor. As the indicator moves into an electric field the indicators LEDS from 1 to 8 will illuminate and an audio alarm will sound. When all of the LEDS up to number 8 are indicated the audio alarm will be on constant.
  • Page 8 Is the indicator picking up static electricity? A static charge is on most surfaces. If you are in an enclosed environment and you turn on the DC80 tester and it activates. Touch the black dissipative cap and the plate, if it has made contact with an object it may be statically charged.
  • Page 9 Static Electricity 10 volts to 10,000+volts The DC80 tester is designed to pick up an electric field emanating from an active DC source as low as 50v dc. Static electricity can be found on almost any surface. Static electricity is an imbalance of electric charges within or on the surface of a material.
  • Page 10 Once a DC power source is terminated in a plastic insulted cable, but not earthed (grounded), a static charge remains present on the insulation, this will slowly dissipate over time. The DC80 indicator will read this static residue left behind and over time the indicator sensitivity lights will stop indicating.
  • Page 11 Usages The indicator can be used where DC voltages are present. • Electric trains 1500 vdc • Electric trams 600vdc • Underground mining vehicles 1800 vdc+ • Power station’s 50-600 vdc • Control and switch gear 200 vdc • Under sea direct current power lines 1000vdc+ •...
  • Page 12 DC80 Specifications Size 225mm Long Charge Time 2 x batteries 7 Hours Voltage sensing 50 to range Light source 8 high intensity Leds Sound source 90 db piezo buzzer Operating -20 to 65 C deg temperature Water Resistance IEC IP6X (Safe when exposed to heavy rain). Weight 750 g Power System...

  • Page 13: Safety Information

    DC80 Voltage Detector Safety Information DC80 was designed as a DC Proximity device to eliminate the dangers of touch testing and earthing. It should be used by trained and qualified personnel only. When testing DC circuits always use caution and strictly adhere to proper safety practices.
  • Page 14 Overview DC80 is a non-contact DC voltage detector that alerts users when they approach an electrified source. Its advanced notification system is designed to warn the user of the presence of voltage and current within a proximate area. DC internal sensors were designed to detect both electrical (V/m) and magnetic (T) fields.
  • Page 15 Warnings Industrial DC80 only detects DC Voltage. Every energized DC conductor is surrounded by an electric field. As you move closer to the conductor, the electric field will become stronger. Lower voltages have a weaker field strength and will have a shorter warning distance. Electric fields that have a stronger field strength, will have a greater warning distance.
  • Page 16 Limited Warranty and Limitation of Liability Effective November 1, 2017, this warranty applies to all products manufactured and sold by G.L McGavin PTY.LTD. (the “Products”). NOTICE: READ THIS LIMITATION OF WARRANTY AND LIABILITY BEFORE BUYING OR USING THE PRODUCTS CONTAINED HEREIN. It is impossible to eliminate all risks associated with the use of the Products.
  • Page 17 freight prepaid. After receipt of a product that G.L McGavin determines is defective, G.L McGavin will, at its option, either (1) repair (or authorize the repair of) the Product or (2) replace the Product, subject to the following: The Products are made using parts sourced from a variety of manufacturers.
  • Page 18 OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY AND NON- INFRINGEMENT. 15. IN NO EVENT SHALL GL MCGAVIN EQUIPMENT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM THE USE OR HANDLING OF THESE PRODUCTS. THIS SHALL INCLUDE, BUT IS NOT LIMITED TO, LOST PROFITS OR REVENUE, LOSS OF USE OF THE PRODUCTS, COST OF SUBSTITUTE PRODUCTS, FACILITIES OR SERVICES, OR DOWNTIME.
  • Page 19 Problem Solution lights and Ground the cap and rotar.Turn the device off and back on, decrease buzzer are activated the sensitivity level down, the indicator is picking up an eclectic field, when the device is remember the field can also be a static charge. On setting 8 the first turned on indicator is extremely sensitive.
  • Page 20 Ensure the operation manual has been read and understood. The indicator is designed to be used as a visual and audible alarm device for the protection of the operator. Contact GL McGavin E: sales@dn.eng.com.au Ph: 02 4952 6304 Phone Int: +61 2 4952 6304...
