Allegion 8310-889 Installation Instructions

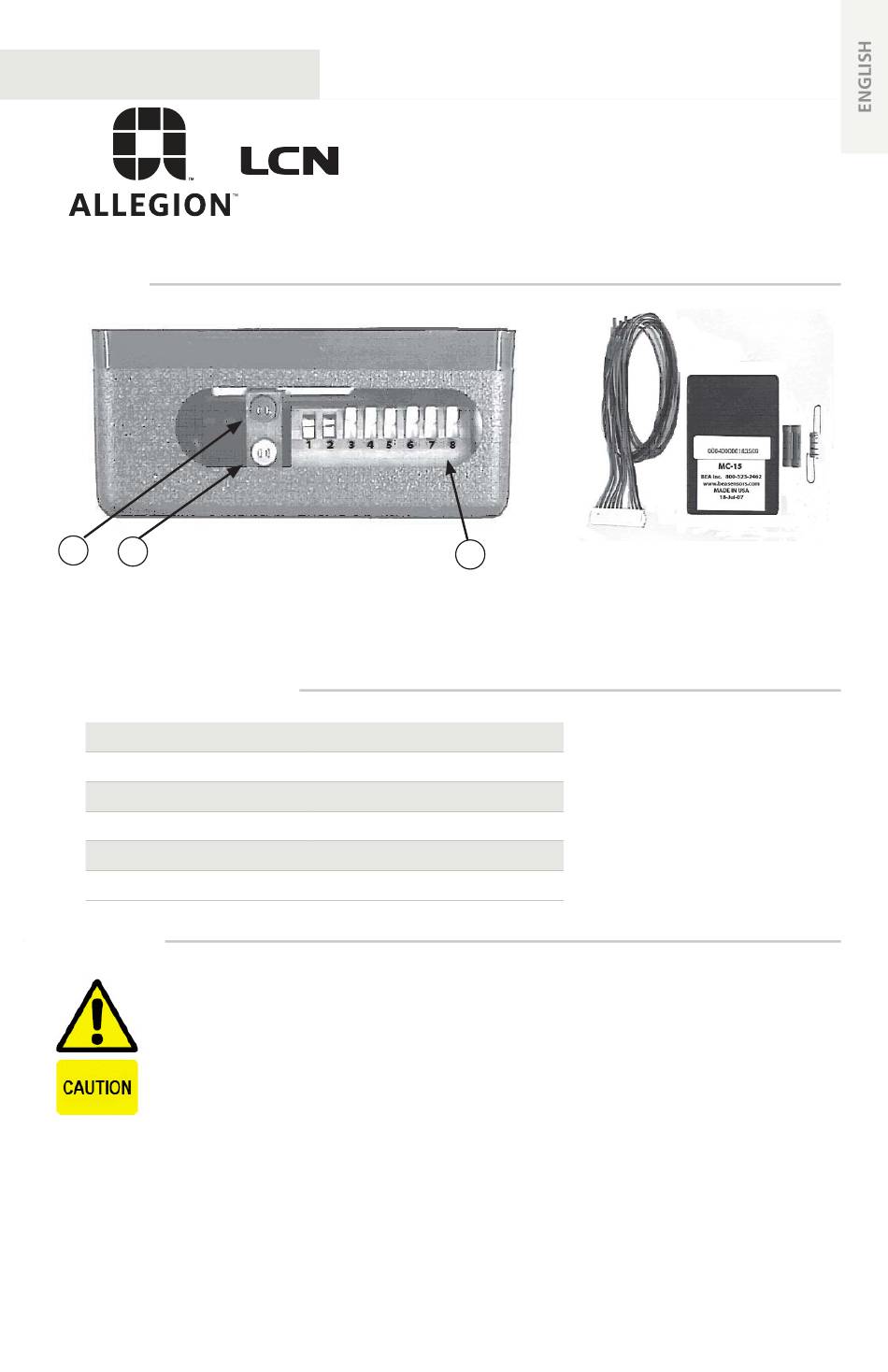

DESCRIPTION
2
3
TECHNICAL SPECIFICATIONS
Power supply:
Operating frequency:
Power consumption:
Output:
Max. voltage (relay contact):
Max. current (relay contacts):
PRECAUTIONS
‰ Shut off all power going to header before attempting any wiring procedures.
‰ Maintain a clean and safe environment when working in public areas.
‰ Constantly be aware of pedestrian traffic around the door area.
‰ Always stop pedestrian traffic through the doorway when performing tests that may result in
unexpected reactions by the door.
‰ ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge.
Before handling any board, ensure you dissipate your body's ESD charge.
‰ Always check placement of all wiring before powering up to ensure that moving door parts will not
catch any wires and cause damage to equipment.
‰ Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of
installation.
‰ DO NOT attempt any internal repair of the components. Unauthorized disassembly or repair:
75.5323.01 ALLEGION SAFETY MODULE 8310-889 20180702 75.5323.01 ALLEGION SAFETY MODULE 8310-889 20180702
8310-889 SAFETY MODULE
1. DIP swtiches
2. Red LED (safety)
3. Green LED (activation)
12 – 24 VAC/VDC
4 MHz (microprocessor)
10 mA at rest; 50 mA max.
2 SPST relays
60 VDC / 120 VAC
2.0A DC / 0.5A AC
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided
warranty.
1
Specifications are subject to change without
All values measured in specific conditions.
Lock-out relay
prior notice.
Page 1 of 4 Page 1 of 4
