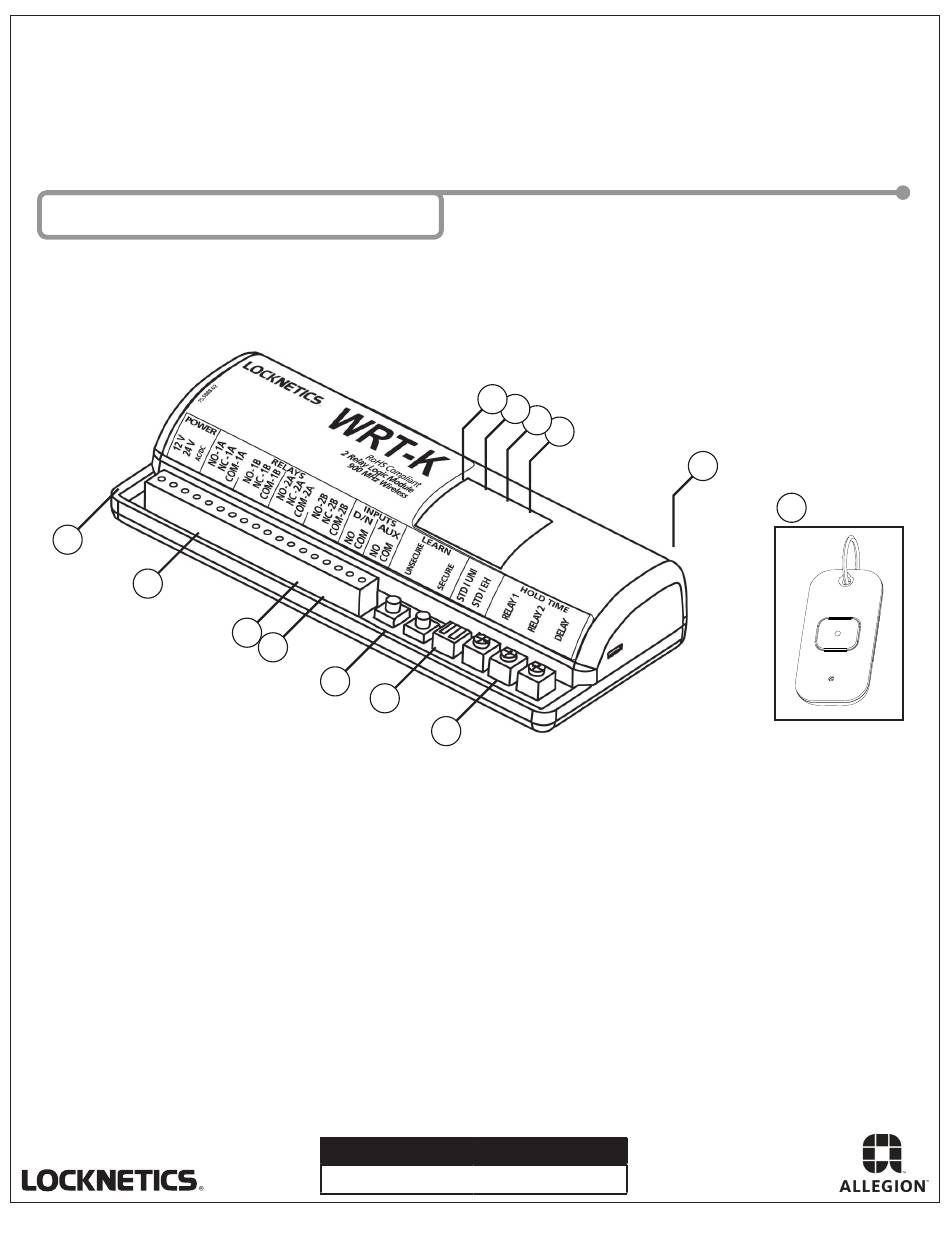

1 Receiver Description
1
2
1. Power input
2. Relay outputs
3. Day/Night input
4. AUX input
5. Learn buttons
75.5931.01 LOCKNETICS BR2-900 20190814
3
4
5
6
6. DIP-switches
7. Potentiometers
8. Radio frequency LED (red)
9. Relay 2 LED (white)
10. Relay 1 LED (blue)
For details regarding the limited warranty:
Customer Service
1-877-671-7011
2 RELAY LOGIC MODULE WITH BUILT-IN
8
9
10
11
7
11. Tri-color signal strength LED
12. Antenna
13. 1-button transmitter
www.allegion.com/us
WRT-K
900 MHZ WIRELESS TECHNOLOGY
12
13
(US version)
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Allegion WRT-K
Summary of Contents for Allegion WRT-K
- Page 1 WRT-K 2 RELAY LOGIC MODULE WITH BUILT-IN 900 MHZ WIRELESS TECHNOLOGY (US version) 1 Receiver Description 1. Power input 6. DIP-switches 11. Tri-color signal strength LED 2. Relay outputs 7. Potentiometers 12. Antenna 3. Day/Night input 8. Radio frequency LED (red) 13.
- Page 2 2 Precautions Shut off all power before attempting any wiring procedures. Maintain a clean & safe environment when. Constantly be aware of pedestrian traffic around the door area. Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door. CAUTION ...
- Page 3 4 User Interface DIP SWITCHES: can be set to achieve desired functionality based upon specific application requirements STATUS FUNCTION DESCRIPTION standard allows only learned/programmed transmitters to function mode universal UNI* allows learned/programmed and "universal transmitters" to function mode standard pressing/holding or pressing/releasing transmitter activates and holds relay according to mode HOLD TIME POTs (single shot) pressing/holding transmitter holds relay as long as transmitter is pressed/held –...
- Page 4 5 Setup OPTIONAL: see hub image on page 1 Set DIP-switches as Adjust POTs as desired. DELAY desired. clockwise = longer delay counterclockwise = shorter delay For DIP-switch settings, default / full CCW = no delay please refer to table on page 3.
- Page 5 6 Removing Transmitter Programming Single Transmitter All Transmitters Press BOTH learn buttons on the Press transmitter TWICE within Press BOTH Learn buttons on the receiver until red LED flashes once 10 seconds. receiver until blue LED illuminates (approx. 2 seconds). (approx.
- Page 6 9 Specifications DESCRIPTION SPECIFICATION Supply voltage: 12 – 24 VAC / VDC ±10% Current consumption: 45 mA DC 75 mA AC Frequency: 908 – 918 MHz (frequency hopping) Emitted radio power: -25 dBm (TX) Power consumption: 0.5 – 1.5 W Transmitter capacity (per receiver): Programmable (standard): Universal:...
