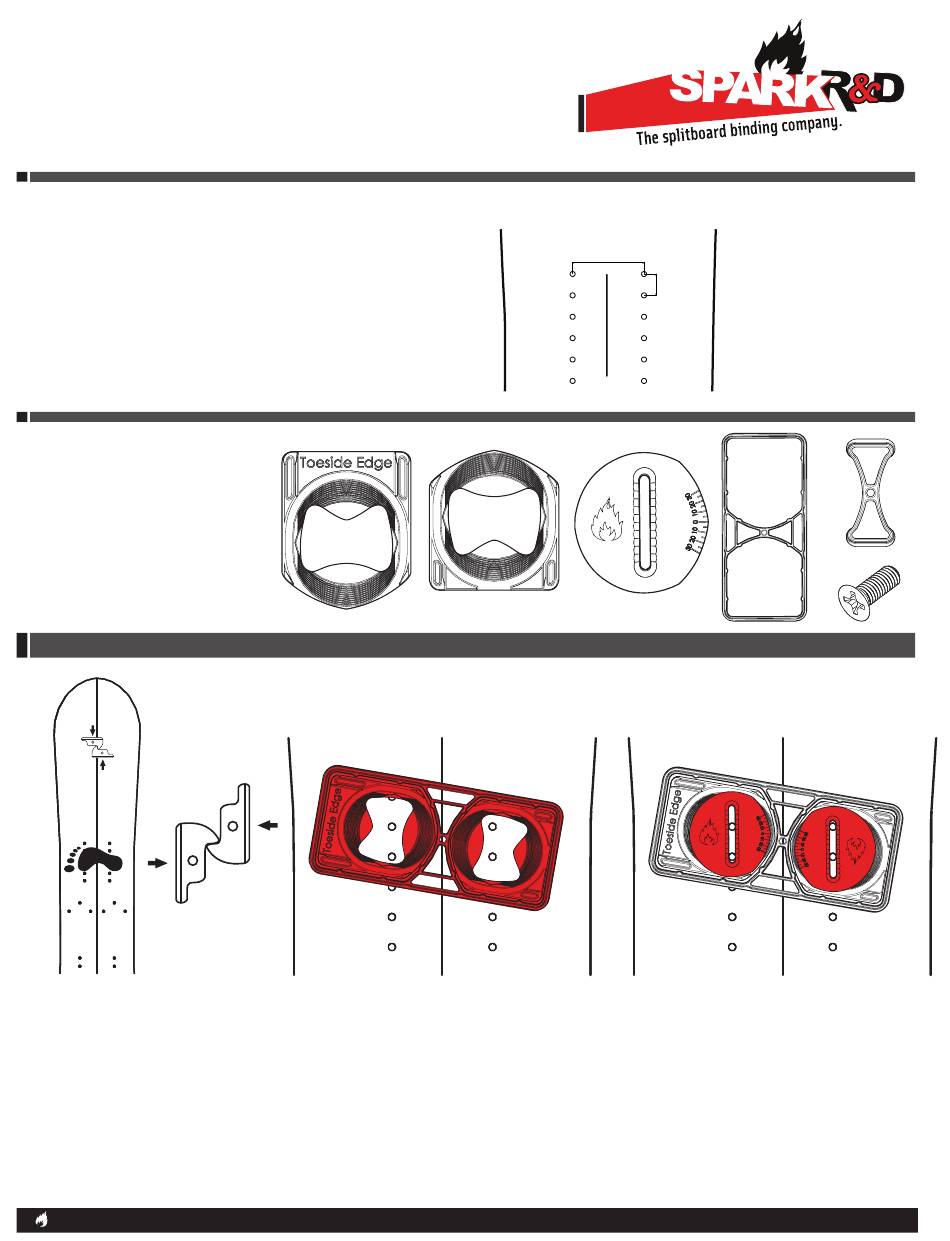

Spark R&D SPARK PUCKS 1718 Setup & User Manual

SPARK PUCKS
Setup & User Guide
Spark R&D will not be held liable for product damage due to user error. Read all instruc�ons before beginning!
Compa�bility:
Compa�ble with all factory built splitboards with the Voile hole
pa�ern: Puck inserts spaced 3.3" (85mm) across the width of the board
and 1" (25.4mm) along the length of the board. For use with all puck
compa�ble splitboard bindings (with the excep�on of the K2 Kwicker).
Not compa�ble with DIY splitboards (unless the Voile factory hole
pa�ern was used) or channel style boards from Voile, Burton and K2.

Included parts:

2 x Toeside puck
2 x heelside puck
4 x Aluminum center disks
1 x Full Alignment Tool
1 x Mini Alignment Tool
8 x M6 x 16mm Flathead screws

Required tools:

(Found in your Spark Tool)
#3 Phillips head screwdriver
Setup Instruc�ons: All Bindings
Assemble your split in board mode.
1.
If equipped with Voilé hooks clamp them
together.
Stand on your board and decide where you
2.
want your feet. Mark a dot where the center
of each foot will be on the board seam.
More info at sparkrandd.com
2x
Place the full alignment tool on the board. Insert a
3.
toeside puck (marked with "toeside edge") and a
heelside puck into the alignment tool.
Locate the tool over the center mark of one of
4.
your feet.
Call or email us with ques�ons: +1 866 725 2085 / sales@sparkrandd.com
[3.3
inch
[85
mm
Voilé Hole Pa�ern
2x 4x
]
]
[1 ]
inch
[25.4 ]
mm
1x
Drop an aluminum center disk into each of the pucks.
5.
Degree indicator marks should point toward the center
line of the board. Rotate so you can see the board
inserts through the slot in the disk.
More info:
1x
8x
