T1 HEEL LOCKER
Setup & User Guide
Spark R&D will not be held liable for product damage due to user error. Read all instructions before beginning!

Compatibility:

Compatible with Spark R&D T1 baseplates (Men's & Women's Arc and
Surge models) and Ibex crampons. Not compatible with Spark R&D Tesla
baseplates (Magneto, AfterBurner), the Burton Hitchhiker, Sabertooth
crampons, or pin mount baseplates (Blaze, Burner, Fuse, Ignition).

Included parts:

2x T1 Heel Lockers

Required tools:

(Found in your Spark Tool)
#3 Phillips head screwdriver

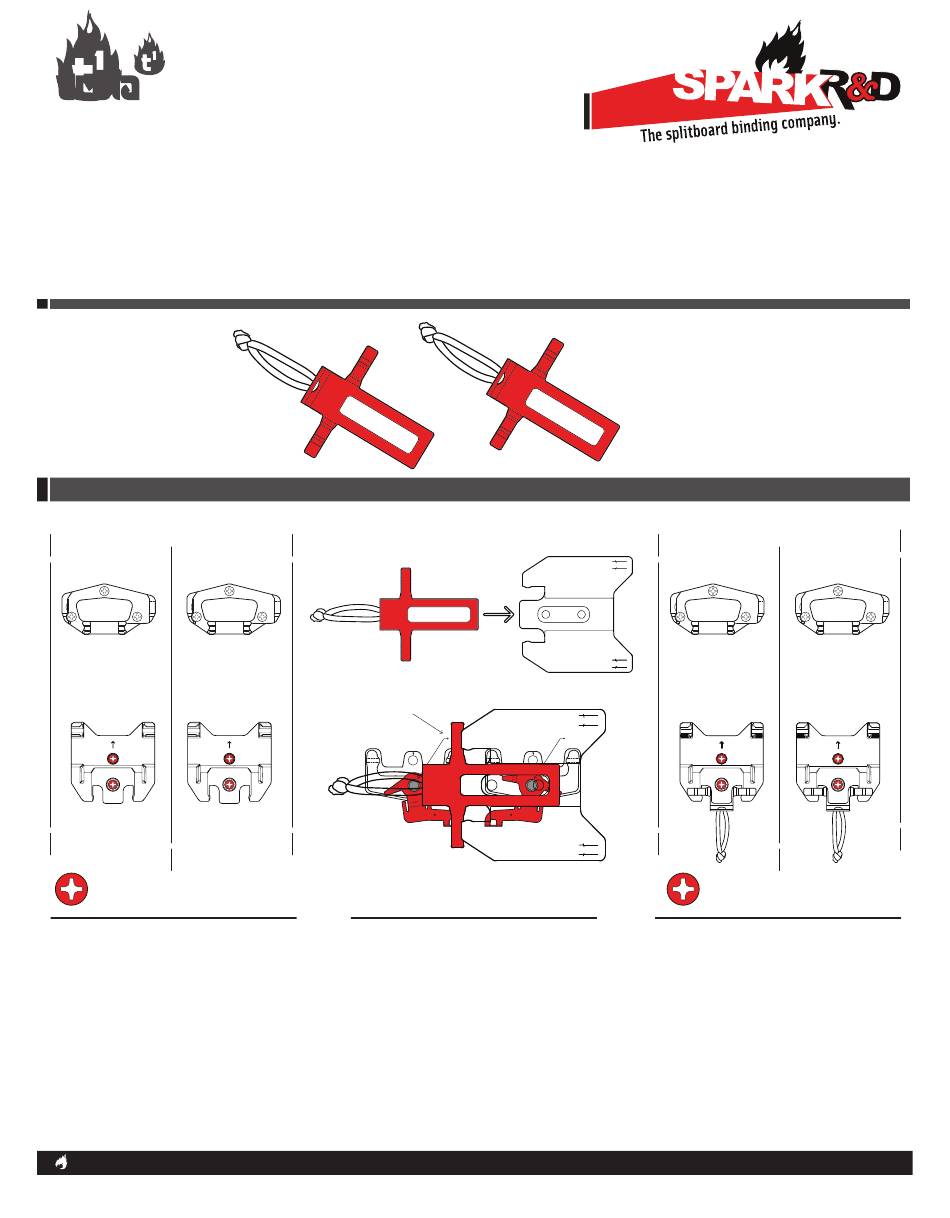

Setup Instructions:

Nose
Tail
1. Set up your splitboard in ride mode.
2. Remove the 4 x M6-8mm flat head screws
from the T1 Heel Rests with the #3 Phillips
head screwdriver.
More info at sparkrandd.com
Underside of Heel Rests and Lockers
3. Flip Heel Rest upside down.
Insert locker from the rear end of
the Heel Rest, angled up slightly. Fit
Locker into groove in the bottom of
Heel Rest. Locker should be flush
with the bottom of the Heel Rest
when inserted properly.
Call or email us with questions: +1 866 725 2085 / sales@sparkrandd.com

Warning:

The Heel Locker is intended to be used as a touring and climbing aid.
Not to be used for high speed downhill skiing. Heel Lockers are
releasable and may release unexpectedly, potentially leading to a loss of
control. The toe pivots of these bindings are non-releasable.
4. Flip Heel Rest right side up and reattach
to your splitboard. Repeat for other side.
5. Check that you can slide your rear
binding on and off of your board. Some
stances may not allow enough room for
the Heel Locker levers, which may require
changing your rear foot angle or
placement. Putting the Lockers in the
locked position may also provide the
needed clearance.
Nose
Tail
