PLDT D801 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
D801

Advertisement

loading
Need help?

Need help?

Do you have a question about the D801 and is the answer not in the manual?

Questions and answers

Related Manuals for PLDT D801

Summary of Contents for PLDT D801

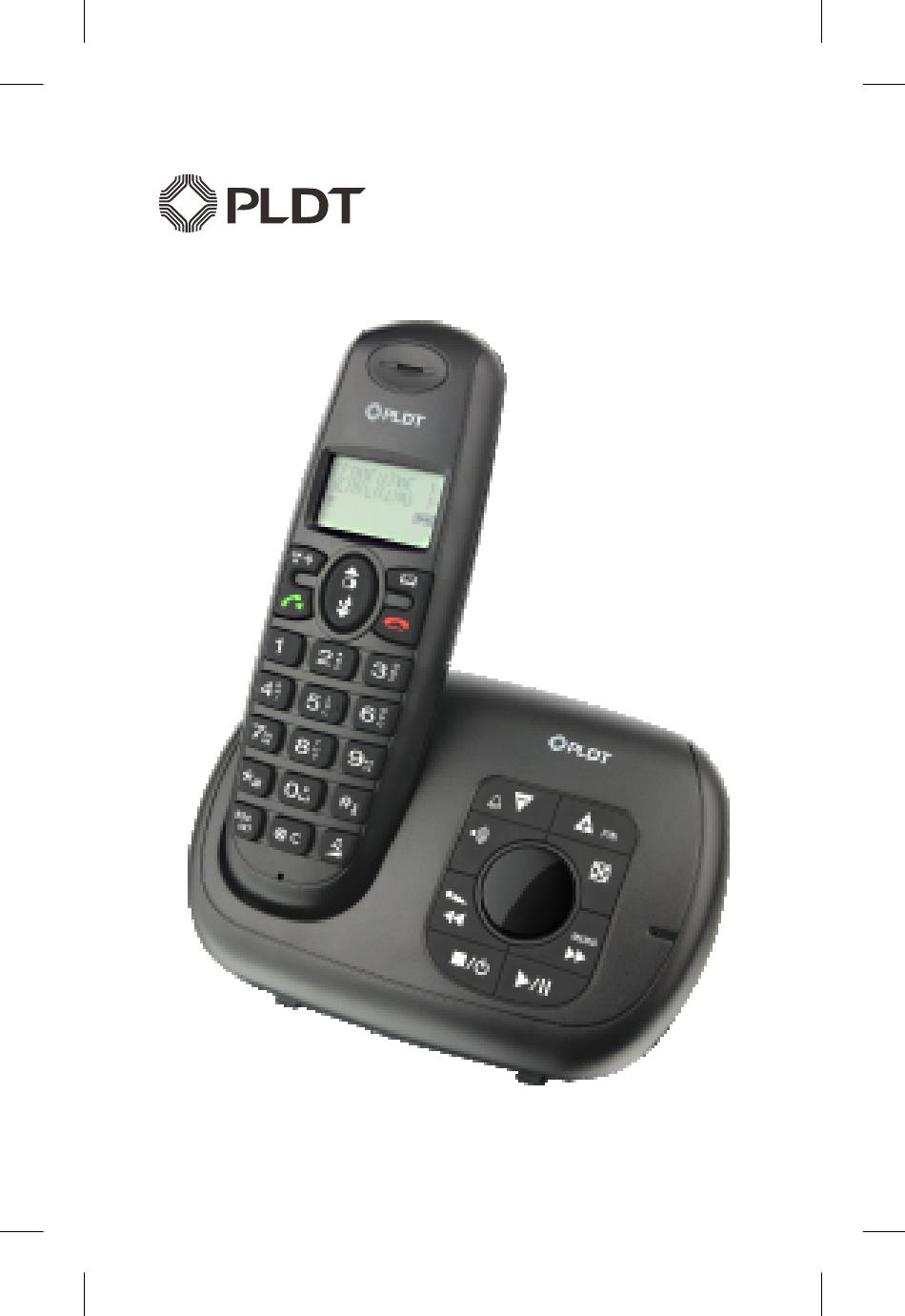

  • Page 1 D801...
  • Page 2 INDEX 2 Before Using the Product 2.1 Congratulations 2.2 Safety information 2.3 Package Contents 2.4 Knowing your device 3 Installation 3.1 Main Base 3.2 Batteries 3.3 Charging the battery of the handset 4 Operation 4.1 Making a Call 4.2 Receiving a Call 4.3 Making a Call Back (Redial) 4.3.1 Search and Call a Number from the Dialed Number List 4.3.2 Dialed Number List Options...
  • Page 3 6.5.4 Performing 3-Way Conference 6.6 Reset Handset 6.7 Reset Base 6.8 Handset Registration and Cancellation 6.8.1 Registering a handset in the D801 base (Procedure 1) 6.8.2 Registering a handset in the D801 base (Procedure 2) 6.8.3 Cancel Registration Handset 6.9 Changing the PIN 6:10 Area Code and Subscriber Category 6.10.1 Area Code...
  • Page 4 7.11.9 Password Configuration for Remote Access 7.11.10 Recording a Message through the Base 7.11.11 Playing recorded messages through the Base 7.11.12 Delete All Messages 7.12 Remote Operation 8. Product Features 9. Technical Specifications 10 Troubleshooting 11 Warranty Certificate 12 Approval PLDT...
  • Page 5 Before Using the Product 2.1 Congratulations Congratulations on purchasing a high-quality PLDT product. Please carefully this the user manual to understand all the features and how your phone works, so you can enjoy using the device. 2.2 Safety information To reduce the risk of electric shock and accidents, please follow the instruc- tions below before using the phone.
  • Page 6 2.3 Package Contents Make sure that all the items shown below are included on your telephone set: Charge Base Telephone handset Manual AAA batteries Plug adapter Line cord (RJ11) NA- MH 2.4 Knowing your device Phone Display Redial/Up Phonebook Menu/OK/Flash Talk off...
  • Page 7 The antenna icon will always be shown on the LCD, it indicates for signal strength, flashes when the handset is out of range. The icon will be displayed when the user pressed the TALK key. The alarm icon will be shown as steady when the alarm is set. The alarm icon will flash when the alarm is triggered.
  • Page 8 3 Installation 3.1 Main Base 1）Plug one end of the line cord (RJ11) in main dock connector and the other end to the jack of your phone line. Connect the terminal plug adapter in the main dock connector and then plug the adapter to the electrical outlet. 3.2 Batteries Put the rechargeable batteries that came with your telephone set.
  • Page 9 4 Operation For all instructions in this manual, assume that the handset is in stand-by mode. To put it in stand-by mode, briefly press the key 4.1 Making a Call Press the button and you will hear the dial tone Enter the desired number To end the call, press the In case of error in entering the desired number to call, you can correct it by following...
  • Page 10 4.3.2 Dialed Number List Options From the Dialed Number List you can store a number in phone book, delete a number from this list or delete the entire list: Press the key while in stand-by mode Press the buttons repeatedly until you find the desired number. When the desired number is displayed, press the key.
  • Page 11 2)Press the keys until you find the desired option. When the desired number is displayed, press the key. Press the keys until you find the desired option. a. ADIC. AGENDA : allows you to add the number in your phone book. For more details see chapter AGENDA.
  • Page 12 4.9 Pause The pause is useful when accessing Audible Response Units (or URA), as automatic systems of banks. Pause inserts a delay of about 3 seconds. If you want to insert a pause during dialing or when storing a number in memory, press and hold for 2 seconds.
  • Page 13 There are 6 available volume levels (including ringer option off). The handset plays while selecting a volume level. Notes: • When the volume is set to OFF, the handset will show the icon on the display. • You can also turn on and turn off the ringer by holding down button.
  • Page 14 handset for internal calls. To change the handset name, follow below instructions: Press the key Repeatedly press the buttons until you find the CONF option. Mono, then press the key Then press the button to select this option. Press the keys until you find the NAME mono option.
  • Page 15 Press the keys until you find the SETUP option. FLASH. Then press the button to select this option. Press the buttons to switch between 100 or 300. Then press the button to confirm your choice. Note: Flash options are equivalent to short and long, 100 milliseconds and 300 milliseconds respectively.

  • Page 16: Advanced Features

    6 Advanced Features For all instructions in this manual, assume that the handset is in stand-by mode.To put it in stand-by mode, briefly press the 6.1 Navigation Menu To access the menu option: Press the key Repeatedly press the buttons. Then press the button to confirm selection.
  • Page 17 6.3 Character Map To use a specific alphanumeric character, press one or more times a given key until the desired character appears. Press the key once for the first character, twice for the second and so on. This function is used when you want to include a name in the directory, name of the handset, etc.
  • Page 18 6.4.2 Viewing contacts on the agenda Press the key while on stand-by mode. Repeatedly press the keys until you find the desired name. Press the button again to select the name and see its number. 6.4.3Dialing a contact from the phonebook Press the key while on stand-by mode.
  • Page 19 6.5 Conference, Transfer and Internal Call If you have more than one handset registered on the same basis, you can make internal calls, transfer external calls to other handsets or hold conference to 3 people with two handsets and an outside call. 6.5.1 Performing an Internal Call 1) Press the key.
  • Page 20 If you buy extra handsets separately, you can register up to 5 handsets on the same base, thus allowing all these handsets to share a single telephone line service. 6.8.1 Registering a handset in D801 base (Procedure 1) 1)Remove power of the base where you want to register the handset and place it back after 5 seconds.
  • Page 21 1) Press and hold for 10 seconds the button located at the base. This will put the base in registration mode for 3 minutes. 2) Press the key while on stand-by mode. 3) Repeatedly press the keys until you find the REGISTRATION option. 4) Press the key to select this option.
  • Page 22 4) Press the keys until you find the MODIFY option. PIN. 5) Then press the button to select this option. 6) The display will show PIN message ?, asking you to enter the PIN code of the current base (the default PIN code at the factory is 0000) 7) Press to confirm.
  • Page 23 3) Then press the button to select this option. 4) Press the buttons until you find the NEMO option. 5) Then press the button to select this option. 6) Press the buttons to switch between ON and OFF. 7) Press the button to confirm selection.
  • Page 24 -Before you can select a main base, the handset must be duly registered on that base as indicated in the chapter "Handsets Registration and Cancellation" 7 Answering Machine Below functions and features are unique to D801 model. 7.1 Turning the Answering Machine 1)Press the key 2)Repeatedly press the buttons until you find the option SECRET ELETR,...
  • Page 25 Note: - MMENS. ATEND1 and MENS. ATEND2 are the two available greetings. The Outgoing Message 1 should be used when you want caller to leave a message while Outgoing Message 2 should be used when you don't want caller to leave messages.
  • Page 26 5) Press the keys until you find the options MENS. ATEND1 and MENS. ATEND2, select one from the two greetings then press the button to confirm. 6) Press the keys until you find the desired option; a. PLAY: the phone plays the selected greeting. b.
  • Page 27 1) Press the key 2) Press the buttons repeatedly until you find the SECRET option. ELETR, then press the key 3) Press the keys until you find the CONF option. S.E., then press the key 4) Press the keys until you find the PIN SE option, then press the key 5) The display will show the current password.
  • Page 28 3) Press the keys until you find the CONF option. . CAMP, then press the key 4) Press the keys until you find the VOLUME option, then press the 5) Press the keys until you find the desired option, then press the key to confirm There are 6 available volume levels (including ringer option off).
  • Page 29 3) Press the keys until you find the MESSAGE option. 4)Press the button to select this option, then the phone will ask you to start recording your message. 5) Press to confirm or press Esc to return to the previous menu. 7.10 Returning the answering machine to factory settings You can return your answering machine to the initial default settings.

  • Page 30: Recording Memo

    When the memory is full, the display will show "FL" and no new message can be recorded. 7.11.4 Recording Memo 1) While the answering machine is ON, hold the key to select between greetings A1 and A2, MENS. ATEND1 and MENS. ATEND2 respectively. For more information see “Configuring the Greetings”.
  • Page 31 2 seconds to delete all old messages that were already heard. New messages will be retained and not deleted. 7:12 Remote operation The D801 allows remote access, meaning you can have access to your messages from anywhere, you just have to call your answering machine.
  • Page 32 To use the remote access feature, follow below instructions: 1) Call your answering machine 2) The answering machine will function, play the greeting and then you will hear a beep. 3) After the beep type * * * to access the remote mode. 4) The answering machine will prompt you to enter the remote access 4-digit PIN (the default PIN from the factory is 0 0 0 0).
  • Page 33 • Low battery consumption • Stores up to 29 incoming calls • Key Tones • Low battery Alert • Low Signal Alert Unique features of the D801: • Answering Machine • Capacity of up to 59 messages • Remote access • Recording •...

  • Page 34: Technical Specification

    9.Technical Specification 60 duplx channels 10. Troubleshooting Symptom Action Check if the telephone line cord (RJ 11) is connected correctly to the Base unit. Check if the Base unit has power. Handset does Check if the ring volume level selected is in “OFF” level. not ring when called.
  • Page 35 Symptom Action Note: In order for your CALLER ID telephone to be able to display incoming call numbers, you should be registered with your service provider's CALLER ID service. To know if you are Number is not displayed registered with this service, please contact your service provider. on the Handset when Allow the phone to ring for few seconds as minor delay in identification is acceptable.

  • Page 36: Warranty Certificate

    11. Warranty certificate This Warranty Certificate is an additional advantage offered by COSUN to customer, however, for it to be valid, it is essential the legible copy is presented without amendments or erasures, invoice purchase the product, which must be broken down clearly and individualized in the body of this Note.
