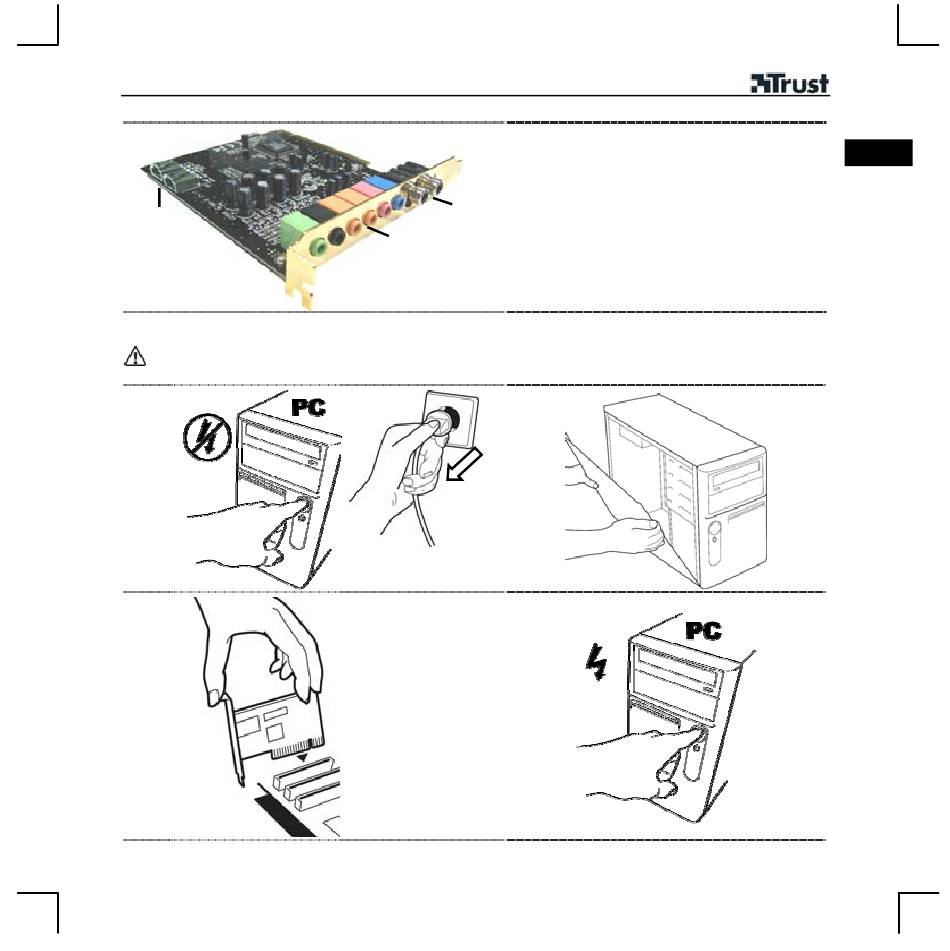

SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT)
Product information
C
Installation
Before installation: When you have an onboard soundcard, please disable it in the motherboard
remove the associated software and drivers.
1
2
A: Analog inputs and outputs
B: Digital S/PDIF input and output
C: Internal analog inputs
B
A
Connecting internal CD
players is optional.
When playing Audio CD's
with the newest version
of Windows Mediaplayer
this connection is not
needed.
Connection scheme in
step 12.
1
UK
BIOS
and
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trust SC-7200
Summary of Contents for Trust SC-7200
- Page 1 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Product information A: Analog inputs and outputs B: Digital S/PDIF input and output C: Internal analog inputs Installation Before installation: When you have an onboard soundcard, please disable it in the motherboard BIOS remove the associated software and drivers.
- Page 2 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) …...
- Page 3 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Connecting 7.1 speakers. Sub/Cent Out Front Out Side Out Rear Out Connecting 5.1 speakers. Sub/Cent Out Front Out Rear Out Connecting Headphones or Stereo speakers. Front Out...
- Page 4 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Connecting Microphone and Walkman. Line in (Stereo, 3.5mm) Microphone in (Stereo, 3.5mm) Portable audio player Connecting S/PDIF Digital in/out. S/PDIF Out (2Channel PCM, Coaxial) Decoder with S/PDIF input S/PDIF In (2Channel PCM, Coaxial)
- Page 5 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Configure and test 7.1 speakers. Advanced setup Bass Enhancement:: activate subwoofer for music. Center / Bass Output swap: check this box when center and bass channels are exchanged. Side / Back Surround Output Swap:...
- Page 6 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Selecting Microphone as recording source and Increasing sensitivity. Note: only one recording source can be selected at the same time. Installing and configuring WinDVD 5 for Dolby Digital EX 6.1 Windows XP...
- Page 7 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Windows XP / 2000 Windows ME (Disable swap, step 14) Windows 98 SE (No Dolby EX) Note: Dolby Digital EX 6.1 can only be selected if the DVD supports it. Note: In Windows 98 SE, 6 channels is the maximum number. Dolby EX won’t be selectable.
- Page 8 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Enabling S/PDIF out/in and listen to S/PDIF in through speakers. When using S/PDIF, set external audio equipment to PCM, 2 Channel or Stereo If S/PDIF output doesn’t work at 96 KHz, try lower sample rates.
- Page 9 SC-7200 7.1 Surround Sound Card (714DX 7.1 SOUND EXPERT) Configuring the Trust 714DX 7.1 Sound Expert as default device. Windows XP Other W indows versions.
- Page 10 If you experience problems with exchanged side and rear channels please use the Side / Back Surround Output Swap function described in step 15. Use with the Trust 8110B 7.1 Home Theatre System is recommended. Asio driver is not available.
- Page 11 Warranty & copyright • This product has a two-year manufacturer's warranty which is effective from the date of purchase. For more information see www.trust.com/warranty • Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.
