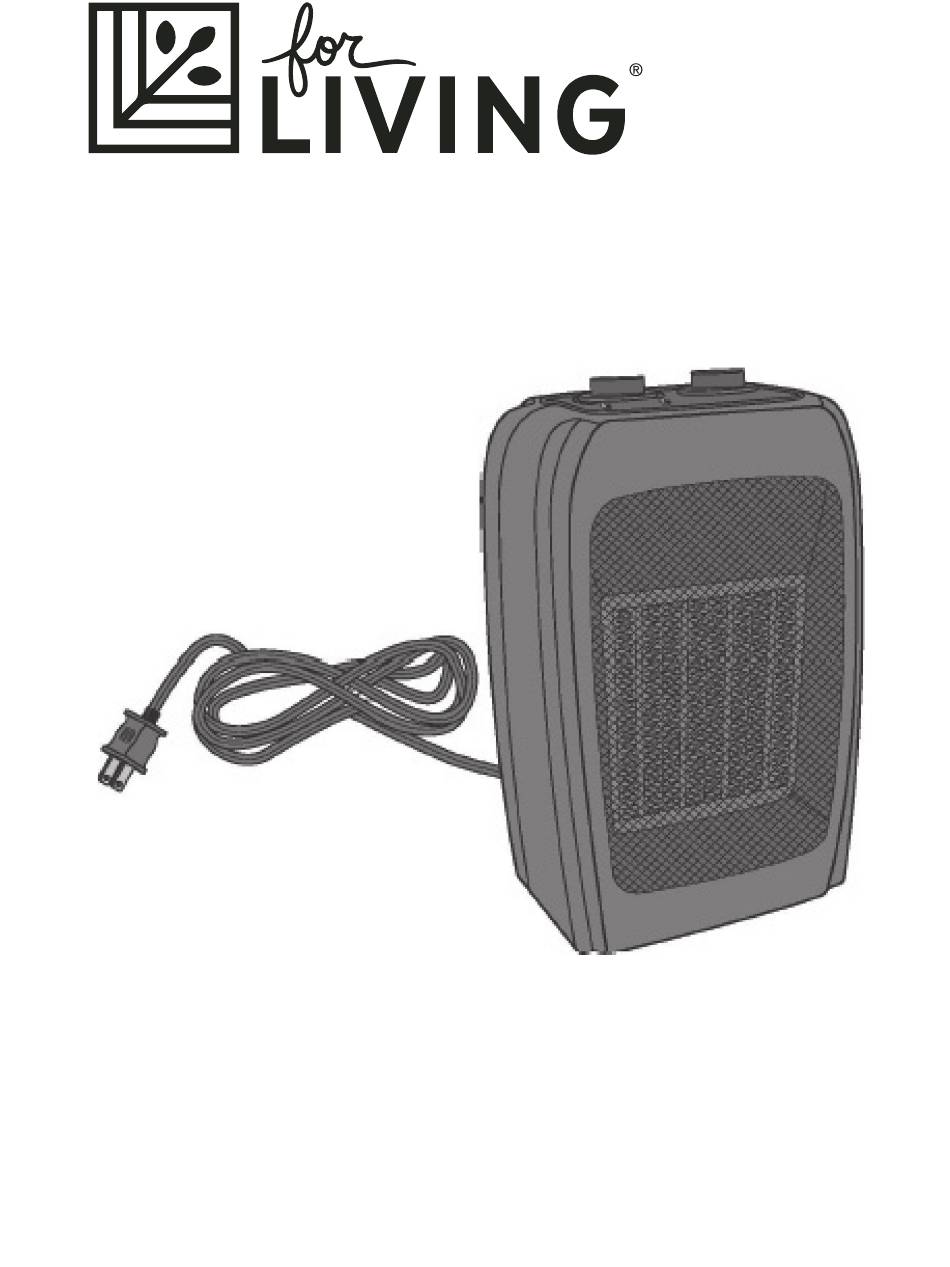

Ceramic Heater
Product No. 043-5877-2
Installation and User Manual
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Before beginning assembly of product, make sure all parts are present.
Questions? If you have any questions or need replacement parts, please call our toll-free helpline at
1-877-483-6759.
Keep this manual for future reference.
Advertisement
Table of Contents
Summary of Contents for Living 043-5877-2
- Page 1 Ceramic Heater Product No. 043-5877-2 Installation and User Manual IMPORTANT: Please read this manual carefully before beginning assembly of this product. Before beginning assembly of product, make sure all parts are present. Questions? If you have any questions or need replacement parts, please call our toll-free helpline at 1-877-483-6759.
- Page 2 Product No. 043-5877-2 Table of Contents Technical Data Important Safety Instructions Key Parts Diagram Important Information Operation Care and Maintenance Warranty Operating voltage 120 V Operating frequency 60 Hz Power 1500 W (high), 750 W (low) Maximum current 12.5 A...
- Page 3 Warning! When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Read all the instructions carefully and use the heater only as directed in the manual. Use of the heater in other ways may cause electric shock, fire, or damage to persons or property.
- Page 4 Product No. 043-5877-2 • This heater draws 12.5 A during operation. To prevent overload and blown fuses, always plug the heater into a dedicated electrical circuit. Do not plug in any other electrical appliance into the same outlet or another outlet on the same electrical circuit.
- Page 5 Tip-over switch Power indicator Power cord Power level switch Thermostat control...
-
Page 6: Thermostat Control
Product No. 043-5877-2 1. Features 1.1. Power indicator This indicator glows to indicate that the heater/fan is in the ON setting. 1.2. Power level switch The power level switch is used to turn the heater on or off. The heater will operate at different power ratings when the power level switch is set at fan, low, high and energy save positions. -
Page 7: Locating The Heater
Warning! • Read each step carefully before beginning any installation and make sure you understand each step. • Keep children and pets away during heater operation. • Do not use the heater without the grille in place. 1. Locating the heater •... - Page 8 Product No. 043-5877-2 3. Turning on the heater • Turn the power level switch (1) from the (OFF) position to (LOW), (HIGH), or (Energy Save), whichever is desired. The power indicator (2) glows when the power level switch is turned on (fig. 3).
-
Page 9: Turning On The Fan
1. Turning on the fan • Turn the power level switch (1) to the (fan) setting. The power indicator (2) glows when the power level switch is turned on (fig. 7). 2. Turning on the continuous fan mode • Turn the thermostat control (1) clockwise to the maximum position to let the fan run continuously (fig. - Page 10 Product No. 043-5877-2 Warning! • Before cleaning the heater, always turn off the power switch and unplug the heater. • Do not use the heater without the grille in place. It is recommended to clean the heater at least once a month and also before off-season storage.
-
Page 11: Additional Limitations
This product is guaranteed for 12 months from the date of original retail purchase against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
