USER GUIDE FOR BOTTOM MOUNT FROST FREE REFRIGERATOR E-WASTE GUIDELINE MANUAL Live Smart. Live Green. LIFE SMARTER LIFE BETTER PLANET Haier Customer Care Toll Free (24x7)-1800-102-9999, 1800-419-9999 Website: www.haier.com/in www.facebook.com/haierindia *Source Euromonitor International Limited; retail volume sales in units based on 2017 data.
Page 2
Dear Friend, At the outset, we at Haier thank you for your interest in our range of products. A unique and international range of appliances designed solely with the purpose of making modern life simpler. And how! The entire Haier range of...

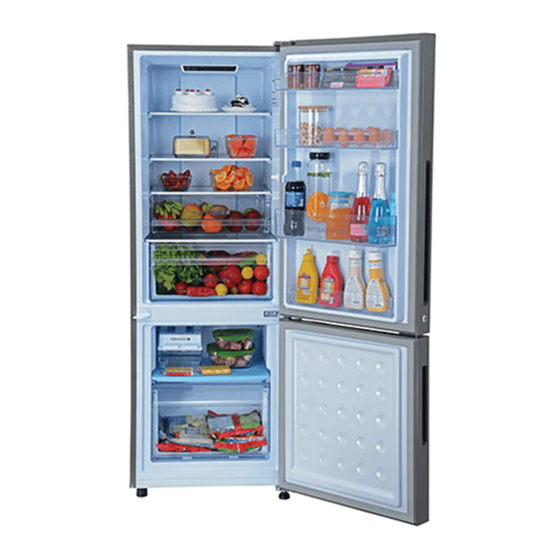

1. KNOW YOUR FRIDGE LED & Display Control Panel Door Rack Top Cabinet Shelf Utility Box Refrigerator Door Switch Compartment Fruit Box Cover Shelf Fruit Box Door Rack Big Veg. Box Cover Shelf Gasket-Ref. Fridge Vegetable Box Door Rack Mini Lock Bracket Ice Maker Cover Twist Ice Tray...
3. SAFETY SIGNS Respected user of Haier Products, Thank you for choosing Haier Refrigerator! Explanation of safety signs appearing in the instruction manual are given below. Read all the instructions carefully before using this appliance. Instructions with this sign is prohibited, it may cause damage to the product or personal safety of the user.
Page 6
4. SAFETY PRECAUTIONS Disconnect the power plug before cleaning or In case of gas leakage, don't touch the power repairing. (repairing to be done by authorized outlet and ventilate the room immediately. repair personnel only) Do not use or store inflammable, explosives, When you disconnect the power cord for corrosive, alkali materials near or in the fridge.
5. PRODUCT INSTALLATION GUIDELINES Level the fridge so that it rests firm on the floor, to do this there are two front adjustable legs, one at each front corner. Turn to the left to raise a corner and to the right to lower the corner.
6. BASIC INSTALLATION STEPS 1) Remove all the packing 2) Read user guide manual carefully. material such as packing box, packing bag, all cushions, bottom EPS and adhesive tapes from both exterior and interior of the fridge. 3) Install fridge at proper location and make 4) Gently wipe off interior and exterior of the sure leveling is done (refer fridge with soft cloth, while doing...
Page 9
7. HOW TO OPERATE Convertible Symbol Energy Saving Symbol Compartment Selection Symbol Energy Ref. Saving Convertible Energy Saving Temperature Indicator Compartment selection 7.2 Function Setting Guide a) Super Freezer: To set freezer compartment into Super Freezer mode, press and hold ‘Frz.’ button until ‘SF’...
8. FOOD STORAGE GUIDELINES Do not keep hot food in fridge, bring Wipe off excessive moisture gathered on food or it down to room temperature before containers or bags, this will lead storing it in. This will help to to retain food's freshness for reduce power consumption.
9. DEFROSTING Defrosting of freezer compartment is an automatic operation, no manual operation is required. During defrosting operation the heater turns ON and emit red light which causes freezer compartment look reddish. However, consumers are advised to not to worry as this operation does not cause any harm and will only help your fridge to work efficiently.
11. GENERAL SUGGESTIONS 3. During Holidays a) During moderate length holidays, leaving fridge in normal operation is preferable. b) During long holiday period, it is recommended to take out all food items, disconnect the power, clean interior properly and leave each door open to prevent adour formation.
13. BASIC TROUBLESHOOTING BY YOURSELF Problem Probable Root Cause What you can do ? Description Check fridge's main supply plug is connected to the socket Power supply off and the switch is ON. Fridge does not House fuse blown. Get this fixed with the help of an electrician. work Try connecting power plug directly to the wall socket, if it Stabilizer does not work.
We take pride on meeting the COMPLIANT toughest environmental standards in the world as represented by RoHS criteria. Contact for further information: Haier Appliances (India) Pvt. Ltd. Building -1, Okhla Industrial Estate Phase El, New Delhi-110020 Toll Free No. (24X7): 1800-102-9999 1800-419-9999 customercare@haierindia.com...
Page 15
Dealer Seal/Haier Seal:…………………………....................... HAIER WARRANTY HAIER APPLIANCES (INDIA) PVT.LTD.(here-in-after referred to as "the company") hereby offers the following warranty to the domestic purchaser commencing from the date of purchase. The company, at its own sole discretion, will free of charge repair or replace any defective part or parts which prove to be defective in workmanship and/or materials and not due to abnormal or improper usage by the customer/consumer.
Page 16
Haier is the biggest Home Appliances Brand*in the world. We represent a higher quality of life across 166 countries, and have transformed the way people live. Haier has touched millions of lives. Bringing to them a whole range of products that go far beyond mere appliances. Haier boasts of a product range of 15,100 models across 96 categories.
