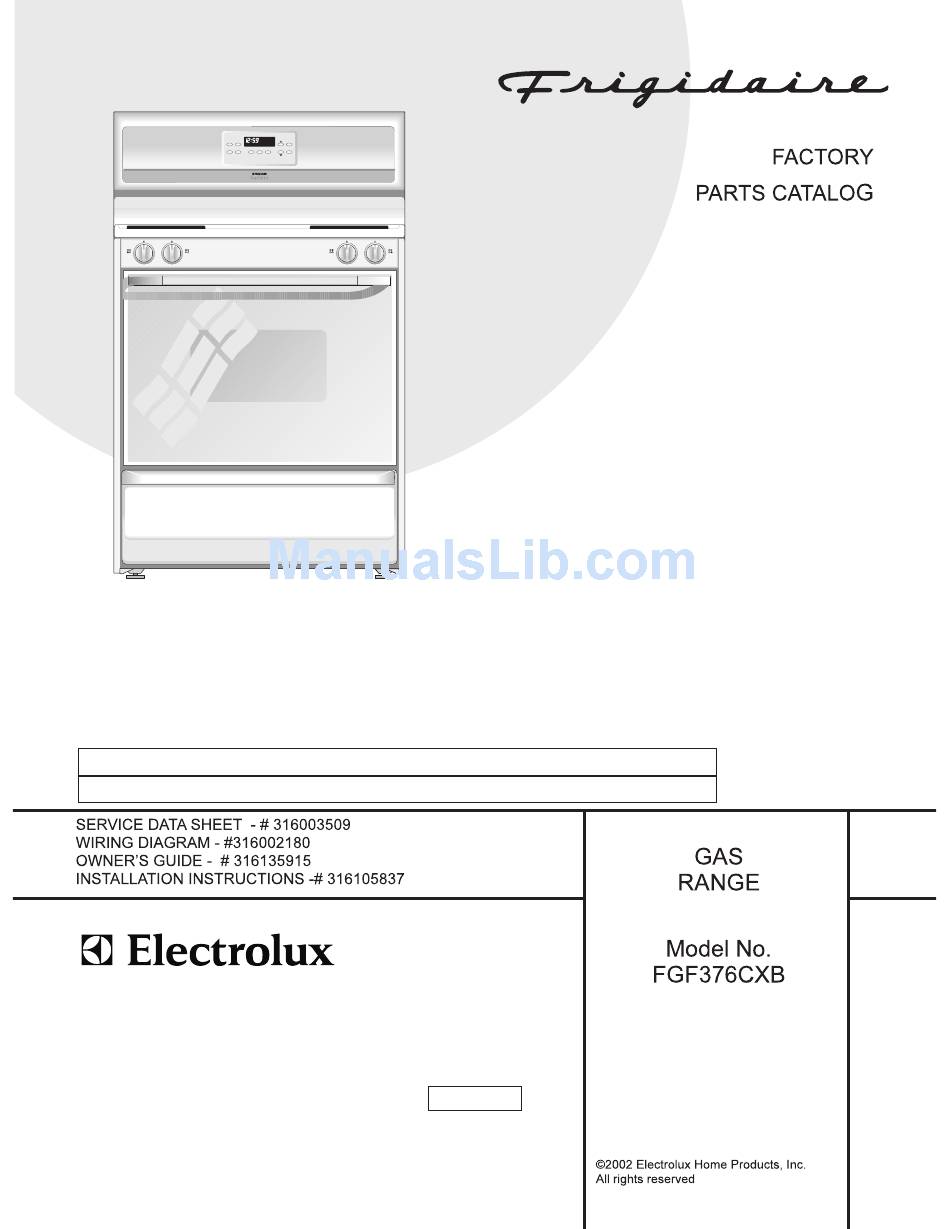

- Page 1 PRODUCT NO. BASE MODEL NO. FGF376CXBSA FGF376CXB C S INC. P. . Bo 21237 August a GA 30917 COLOR MARKET white North America Publication No. 5995374310 020613 -EN/SERVICE /ECL...
- Page 2 Publication No. FGF376CXBSA 5995374310 BACKGUARD 06/02...
- Page 3 POS. NO 20 # 24 # # = Fast-moving Parts * = Non-Illustrated Parts FGF376CXBSA BACKGUARD PART NO DESCRIPTION 316028700 Shield,backguard ,galv ,rear wall 316051600 Shield,backguard ,inner 316053800 Shield,backguard ,inner top 316083722 Trim,wrapper ,white ,textured,w/hole 316023108 Support,backguard ,RH 316023109 Support,backguard ,LH 316100581 Panel,backguard ,white 316080011...
- Page 4 Publication No. FGF376CXBSA 5995374310 BURNER 06/02...
- Page 5 POS. NO 2A # 2B # 10 # 10A# 10B# 13 # 14 # 16 # 17 # 18 # 19 # 22 # 23 # 24 # 26 # 47 # # = Fast-moving Parts * = Non-Illustrated Parts FGF376CXBSA BURNER PART NO...
- Page 6 Publication No. FGF376CXBSA 5995374310 BODY 06/02...
- Page 7 POS. NO 12 # 14 # 18 # 37 # 39 # 89 # 170* 170* 170* # = Fast-moving Parts * = Non-Illustrated Parts FGF376CXBSA BODY PART NO DESCRIPTION 316029416 Panel,main back 3131314 Shield,oven top 316081034 Panel,bodyside ,white ,RH 316081035 Panel,bodyside ,white ,LH 316011917...
- Page 8 Publication No. FGF376CXBSA 5995374310 TOP/DRAWER 06/02...
- Page 9 POS. NO 19 # 19A# 22 # 22A# 22B# # = Fast-moving Parts * = Non-Illustrated Parts FGF376CXBSA TOP/DRAWER PART NO DESCRIPTION 316011503 Drawer 5303288582 Liner,drawer ,galv steel ,front panel 316084405 Panel,drawer ,white 3051163 Glide,drawer ,rear 316114801 Maintop,white 316011417 Pan,burner ,large ,gray 316011409 Pan,burner ,small ,gray 316085304...
- Page 10 Publication No. FGF376CXBSA 5995374310 DOOR 06/02...
- Page 11 POS. NO 12 # # = Fast-moving Parts * = Non-Illustrated Parts FGF376CXBSA DOOR PART NO DESCRIPTION 316067804 Trim,oven door ,white 316089013 Glass,oven door ,white ,outer 316117601 Glass,door ,4mm ,airwash 316091404 Shield,wool 316117500 Glass,oven door ,heat barrier 316066619 Liner,oven door 5303280308 Screw,wafer hd sq dr ,10-24T x 2.00 ,handle mtg 316008401...
-
Page 12: Wiring Diagram
Publication No. FGF376CXBSA 5995374310 WIRING DIAGRAM 06/02...
