Summary of Contents for Frigidaire FGF376CXA

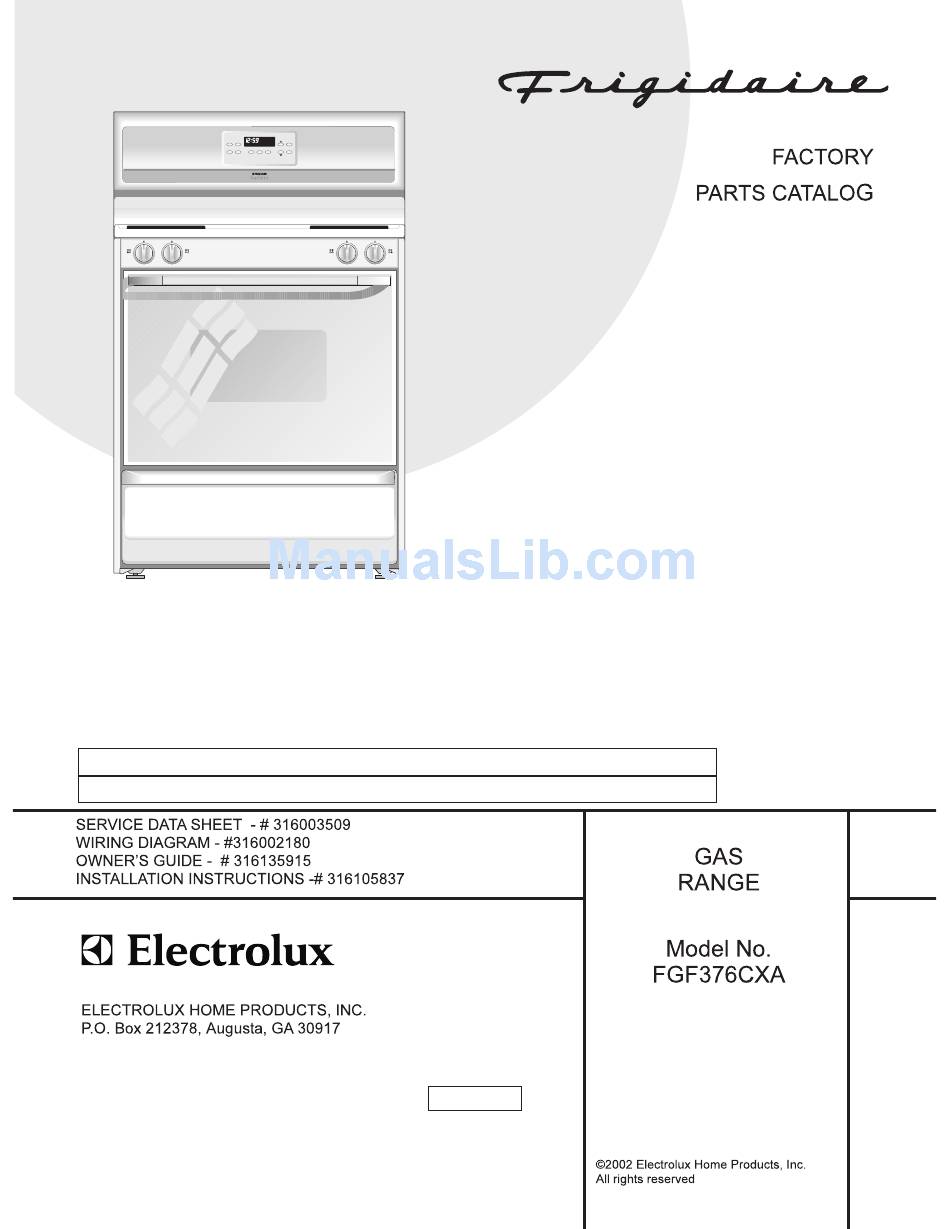

- Page 1 PRODUCT NO. BASE MODEL NO. FGF376CXASA FGF376CXA COLOR MARKET white North America Publication No. 5995373874 020610 -EN/SERVICE /ECL...
- Page 2 BACKGUARD 06/02...
- Page 3 BACKGUARD POS. NO PART NO DESCRIPTION 316028700 Shield,backguard ,galv ,rear wall 316051600 Shield,backguard ,inner 316053800 Shield,backguard ,inner top 316083722 Trim,wrapper ,white ,textured,w/hole 316023108 Support,backguard ,RH 316023109 Support,backguard ,LH 316100581 Panel,backguard ,white 20 # 316080011 Clock/Timer,slew 316089306 Overlay,clock 316033204 Bracket,timer 24 # 316118101 Switch,oven light ,white ,rocker 316109513...
- Page 4 BURNER 06/02...
- Page 5 BURNER POS. NO PART NO DESCRIPTION 316134501 Manifold Pipe,1 5303935184 Valve,top buner ,9K ,with mtg screws 2A # 5303935185 Valve-top burner,11K ,with mtg screws 2B # 5303935186 Valve-top burner,5K ,with mtg screws 316134300 Screw,10-24 ,valve mounting 316001824 Wiring Harness,w/igntr switch 316059612 Tube,burner ,red ,RF 316059613...
- Page 6 BODY 06/02...
- Page 7 BODY POS. NO PART NO DESCRIPTION 316029416 Panel,main back 3131314 Shield,oven top 316081034 Panel,bodyside ,white ,RH 316081035 Panel,bodyside ,white ,LH 316011917 Burner Box,with hole 08067757 Cover Plate,burner box 316129200 Screw,leveling ,plastic ,with stop 316067902 Rack,oven 316007005 Hinge,oven door , (2) 5303300701 Panel,oven bottom 316064600...
- Page 8 TOP/DRAWER 06/02...
- Page 9 TOP/DRAWER POS. NO PART NO DESCRIPTION 316011503 Drawer 5303288582 Liner,drawer ,galv steel ,front panel 316084405 Panel,drawer ,white 3051163 Glide,drawer ,rear 316114801 Maintop,white 20 # 316085205 Grate,gray ,(4) 316011308 Trim ring,gray ,small 316011307 Trim ring,gray ,large 22 # 316122101 Cap,burner ,small ,gray 22A# 316098509 Cap,burner ,large ,gray...
- Page 10 DOOR 06/02...
- Page 11 DOOR POS. NO PART NO DESCRIPTION 316067804 Trim,oven door ,white 316089013 Glass,oven door ,white ,outer 316117601 Glass,door ,4mm ,airwash 316091404 Shield,wool 316117500 Glass,oven door ,heat barrier 316066619 Liner,oven door 5303280308 Screw,wafer hd sq dr ,10-24T x 2.00 ,handle mtg 316008401 Washer,3/4 OD x 1/4 ID ,steel 12 # 5303131601...
-
Page 12: Wiring Diagram
WIRING DIAGRAM 06/02...
