Summary of Contents for EtiamPro EDS201B
- Page 2 Two-Wire Video Intercom User Manual Legal Information About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Two-Wire Video Intercom User Manual Data Protection During the use of device, personal data will be collected, stored and processed. To protect data, the development of our devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method; for fingerprint device, only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.
- Page 4 Two-Wire Video Intercom User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
- Page 5 Two-Wire Video Intercom User Manual Safety Instruction ● Warning The working temperature of the device is from -10 ºC to 55 ºC. ● All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. ●...
- Page 6 Two-Wire Video Intercom User Manual standard. ● The power supply must conform to LPS.
- Page 7 Two-Wire Video Intercom User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 8 Two-Wire Video Intercom User Manual designated collection point. For more information see:www.recyclethis.info Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
-
Page 9: Table Of Contents
Two-Wire Video Intercom User Manual Contents Chapter 1 Appearance ........................ 1 Chapter 2 Terminal Description ....................2 Chapter 3 Installation ......................... 3 3.1 Accessory Introduction ......................3 3.2 Surface Mounting with Gang Box ..................3 3.3 Flush Mounting with Gang Box ..................... 4 Chapter 4 Typical Application ..................... -
Page 10: Chapter 1 Appearance

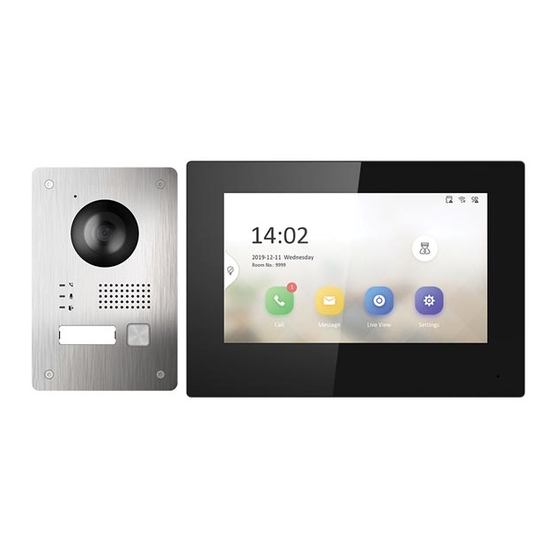

Two-Wire Video Intercom User Manual Chapter 1 Appearance Figure 1-1 Appearance Table 1-1 Description Description Microphone Calling Indicator Speaking Indicator Open Door Indicator Built-in Camera Supplement Light Loudspeaker TAMPER Call Button EDS201B... -
Page 11: Chapter 2 Terminal Description
Figure 2-1 Terminal Description Table 2-1 Terminal Description Interface Description Normally Close Normally Open Common Interface Normally Close Normally Open Grounding AIN1 Alarm Input 1 AIN2 Alarm Input 2 12V OUT Power Supply Output Grounding 2-WIRE Two-Wire Interface 2-WIRE Two-Wire Interface EDS201B... -
Page 12: Chapter 3 Installation
3.2 Surface Mounting with Gang Box Steps 1. Take the gang box and screws from the packing box. 2. Fix the gang box onto the wall with 4 screws. 3. Install the door station into the gang box, and fix it with 4 screws. EDS201B... -
Page 13: Flush Mounting With Gang Box
The suggested dimension of the installation hole is 103.5 mm × 162.5 mm × 40.5 mm. 2. Insert the gang box into the hole with 4 screws. 3. Install the door station into the gang box, and fix it with 4 screws. EDS201B... - Page 14 Two-Wire Video Intercom User Manual Figure 3-3 Flush Mounting with Gang Box EDS201B...
-
Page 15: Chapter 4 Typical Application
Figure 4-1 Typical Application Wire the door station to the indoor station with 2-wire cables. You can activate door station by indoor station. Set the open duration and other parameters by indoor station. Refers to the Indoor Station Configuration Guide for details. EDS201B... -
Page 16: Chapter 5 Video Intercom Operation
● When the supplement light is enabled, the backlight of key will be auto-enabled, otherwise, the door station will detect the brightness of live view and enable the backlight of key when the brightness of live view is lower than expected threshold. EDS201B... -
Page 17: Dimension
Two-Wire Video Intercom User Manual A. Dimension The dimension of the villa door station is shown below. Figure A-1 Dimension EDS201B...
