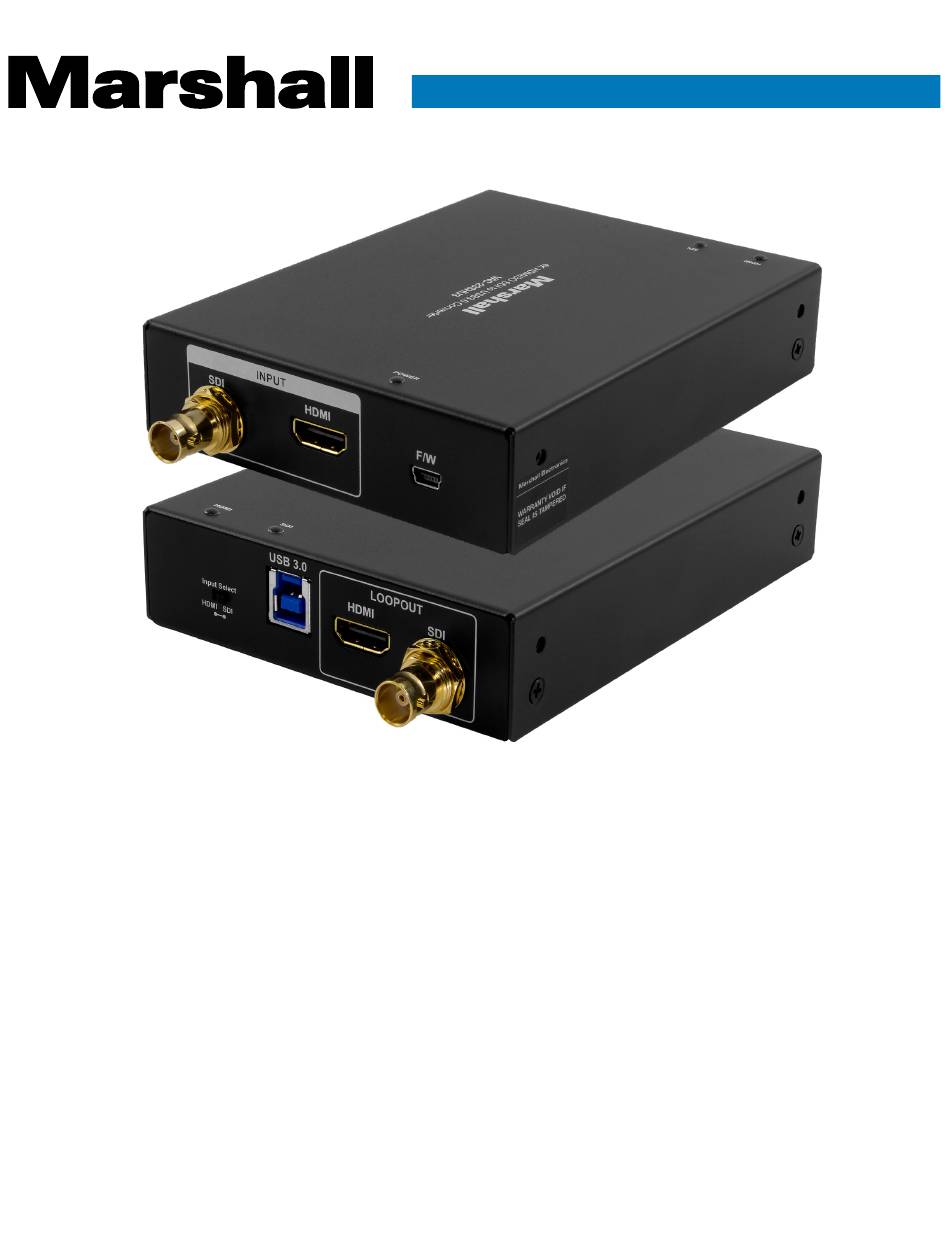

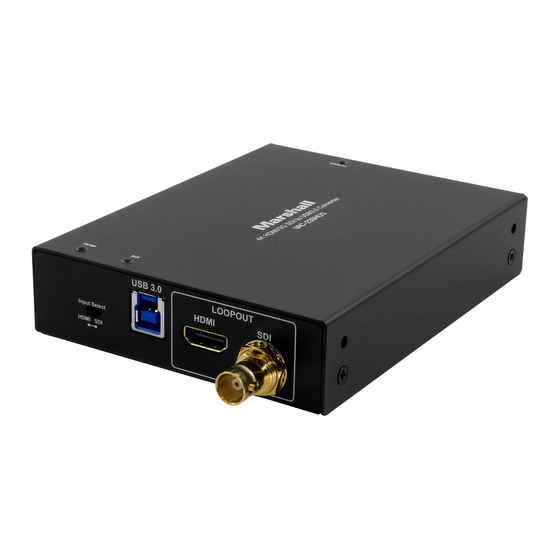

- Page 1 B r o a d c a s t A / V D i v i s i o n VAC-23SHU3 SDI/HDMI Video to USB 3.0 Adapter User Manual...
- Page 2 VAC-23SHU3 Manual 1. Introduction The Marshall VAC23-SHU3 advanced USB 3.0 adapter easily connects video and audio sources to a computer for video conferencing, video production and recording. Simple to use plug-and-play design seamlessly integrates professional video sources to your choice of PC-based applications. Table of Contents Select either an HDMI or SDI video source with the flip of a switch.
- Page 3 VAC-23SHU3 Manual 5. Connections and Indicators 6. Setup and Quick Start 1. Computer should be powered and operating. Connect the VAC-23SHU3 to the host computer Input Side using the USB 3.0 cable provided. The first time the unit is used, please allow about one minute for the computer to identify the unit and setup the drivers.
- Page 4 VAC-23SHU3 Manual 7. Specifications 8. Block Diagram HDMI Input and Output • HDMI Conforms to HDMI 2.0 standard • HDCP 1.4 and 2.2 compliant HDMI In HDMI Out • Video Frame Rates from 23.98 to 60.00 • Video Formats from 480i/p, 576i/p to 1080p50/60 USB 3.0 USB Process Input...
- Page 5 VAC-23SHU3 Manual 9. Tips and Fixes Note: SDI inputs do not have content protection. I’m trying to use VLC to test the VAC-23SHU3 but the picture looks wrong and the video format My computer says, “the USB device is not recognized” or “the device does not support the is incorrect as well.
- Page 6 Warranty Marshall warrants the VAC-23SHU3 HDMI to 3G/HD/SD-SDI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from an authorized Marshall dealer. Should this product fail to be in good working order within 1-year warranty period, Marshall will, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
