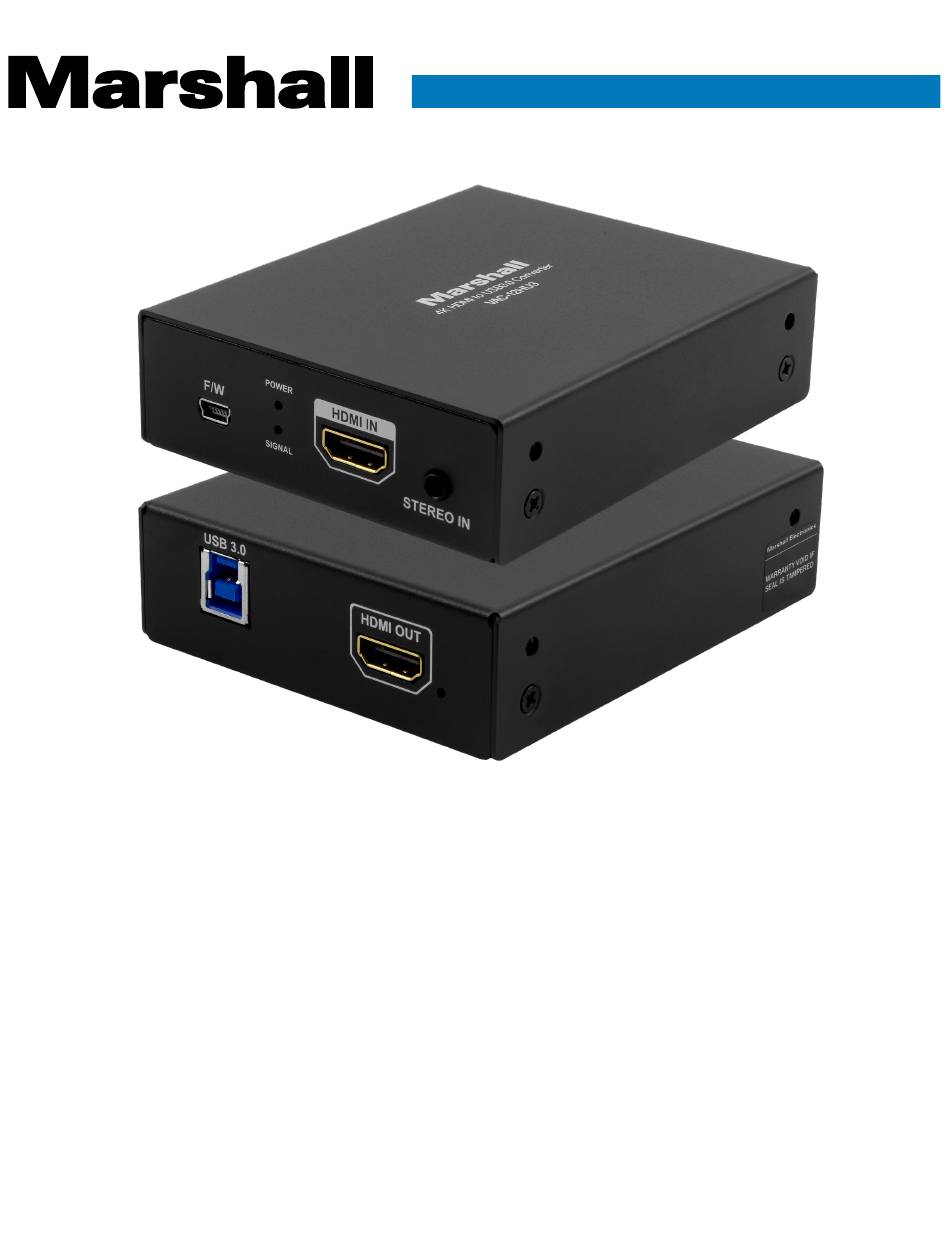

- Page 1 B r o a d c a s t A / V D i v i s i o n VAC-12HU3 HDMI Video / Audio to USB 3.0 Adapter User Manual...
- Page 2 VAC-12HU3 Manual 1. Introduction The Marshall VAC-12HU3 advanced USB 3.0 adapter easily connects video and audio sources to a computer for video conferencing, video production and recording. Simple to use plug-and-play design seamlessly integrates professional video sources to your choice of PC-based applications.
- Page 3 The on-screen message will change like the one below. This message will disappear after about 8 seconds. At this point, the VAC-12HU3 is operating and ready to use! Control of the VAC-12HU3 depends on the capabilities of the software being used for conferencing, recording, streaming, etc.
- Page 4 • Connected via USB 3.0, transfers formats up to 1080p60 sent to host computer • Connected via USB 2.0, transfers formats up to 720p60 sent to host computer VAC-12HU3 Functional Block Diagram • When connected to a USB 2.0 port, recommended input video source 720p or below.
- Page 5 1. Select the MEDIA tab then, select OPEN CAPTURE DEVICE First, be sure to use the USB cable that was supplied with the VAC-12HU3. If it becomes lost or 2. In the Window that appears, select MEI USB 3.0 CAPTURE DEVICE for the Video Device Name and damaged, please replace it with a “USB 3.0 type A-to-B”...
- Page 6 Warranty Marshall warrants the VAC-12HU3HDMI to 3G/HD/SD-SDI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from an authorized Marshall dealer. Should this product fail to be in good working order within 1-year warranty period, Marshall will, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
