ERGODYNE SQUIDS 19765 Quick Start Manual

SQUIDS
TOOL ATTACHMENTS
ELASTIC & WEB TOOL TAILS
WWW.ERGODYNE.COM // 800 225 8238

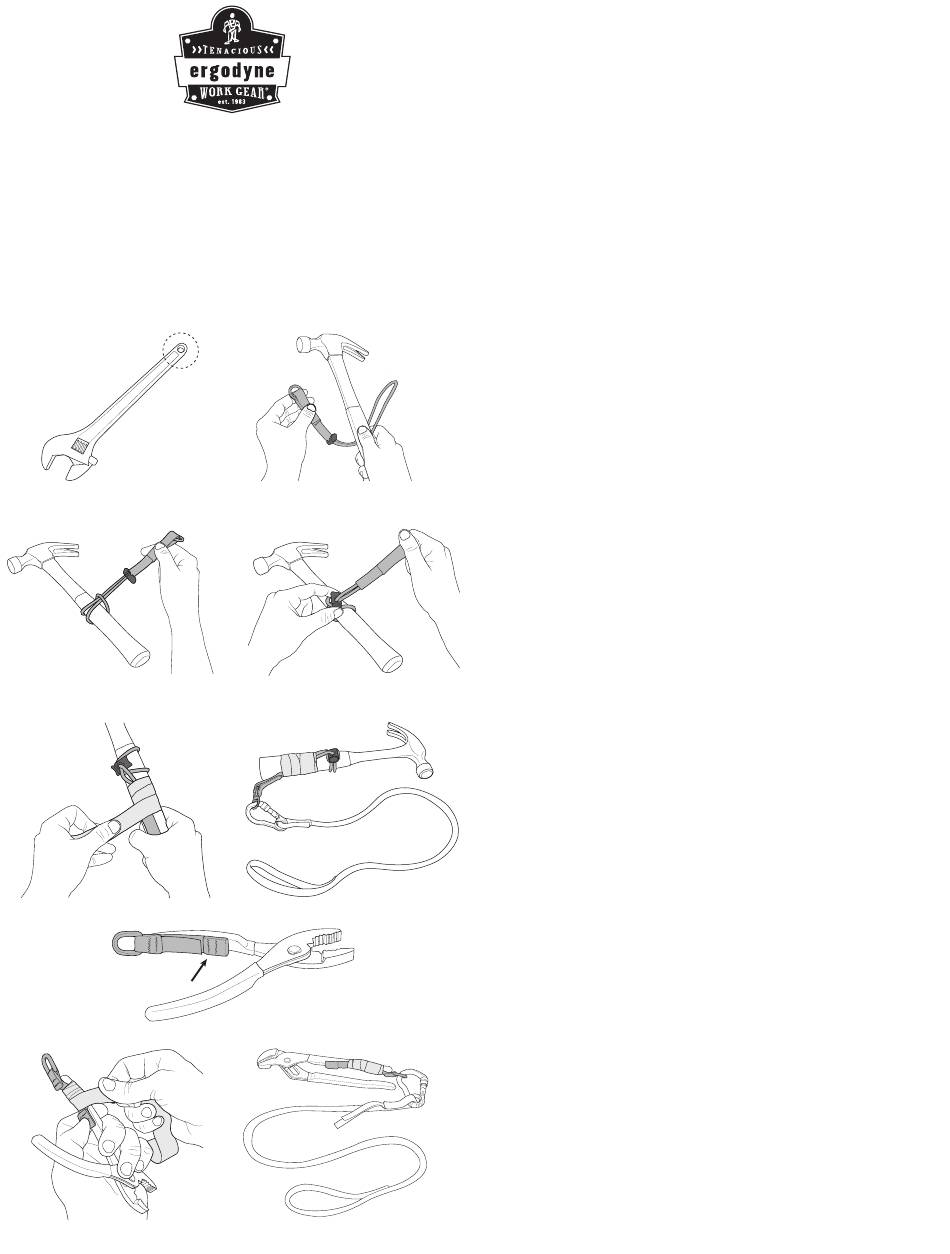

Fig. 1
Fig. 3
Fig. 5
Fig. 8
®
Fig. 2
Fig. 4
Fig. 6
Fig. 7
Fig. 9
The Squids® Elastic Loop/Cinch & Web Tool Tails™ are designed for ease-of-use, and to
help reduce the risk of dropped tools when used with an appropriate tethering system
(refer to Using A Tethering System instructions). The Squids® Tool Attachment Series
is designed and tested to create retrofit connection points on tools, allowing users to
safely tether them if a secure tool connection point is not available.
DEFINITIONS: "Tool Tails™" – A system component that is captured by the "Trap" and
includes a tethering connection point.
"Tool Traps™" – A system component that's applied over the "Tail," fixing it securely to
the tool and securing it in the event of a drop.
WARNINGS: All warnings and instructions must be read and understood before using this
product. Failure to do so may result in property damage, serious injury, or death.
• Do not use tool attachments in temperatures below -40°F / -40°C
or above 150°F / 65°C.
• Refer to individual component labels for specific weight ratings (see selection grid).
Maximum capacity is equal to the lowest capacity within the tethering system.
• Always inspect Tool Tails™ prior to, and after, each use (refer to INSPECTION
instructions).
• Only use Tool Tails™ with specifically designated Tool Traps™ or as otherwise
instructed for use.
• Squids® Tool Tails™ should NOT be used with other manufacturers tapes, shrinks or
other attachments.
• Do not wrap Tool Tails™ around sharp or rough edges.
• Never modify or alter your Tool Tails™.
• Never modify a tool that could result in manufacturer guideline deviation.
• Do not use this product if it interferes with the tools safe working condition.
• Use extra precaution around moving machinery or parts, electrical hazards, chemical
hazards or other apparent hazards.
• Never attach a tool with a Squids® Tool Attachment to a lanyard that is longer than
the Maximum Lanyard Length indicated on the product label of the tool attachment
(refer to the "Using a Tethering System" portion of the instructions).
PREPARING FOR APPLICATION
• Ensure tools are clean, dry and free of grease, oil or other substances during
application.
• Read instructions completely before and during assembly.
REQUIRED ITEMS FOR ATTACHING ELASTIC LOOP/CINCH TOOL TAILS™
• Appropriate Tool Tails™ (see selection grid)
• Appropriate Tool Trap™ model (see selection grid)
1. Measure the diameter and weigh your tool to determine the appropriate Tool Tail™
(see selection grid - note that, in some situations, there are multiple options, so the
user may choose their preference). If the tool is tapered, measure the largest tool
shaft diameter.
2. For attachment to tools with a captive hole or handle engineered hole into the tool
[fig. 1], locate the tools connection point and slide the Tool Tail™ through the captive
hole or handle and feed the d-ring end back through the loop choking it onto tool
pulling it tight to remove slack. Snug barrel lock down if applicable.
3. For non-captive tools, choke or cinch the elastic loop Tool Tail™ onto the tool by
wrapping it around a straight shafted area that does not inhibit the use of the tool
[fig. 2].
4. Feed the D-ring end through the loop end of the Tool Tail™ [fig. 3]. Pull the loop tight
to remove slack. Snug barrel lock against the tool if applicable [fig. 4].
a. Ensure the tail is positioned as far up the tool shaft as possible without affecting
its use. A minimum of 1 in. / 25mm away from the end of the tool is suggested.
b. If the tool is tapered, position the tail on or near the largest diameter.
5. Select and apply the appropriate Tool Trap™ using the selection grid to secure your
elastic loop Tool Tail™ [fig. 5].
6. Attach a tool lanyard to complete an appropriate tethering system [fig. 6].
*For further instructions, watch the product video at www.ergodyne.com.
REQUIRED ITEMS FOR ATTACHING WEB TOOL TAILS™
• Appropriate Tool Tails™ (see table)
• Appropriate Tool Trap™ model
1. Measure the diameter and weigh your tool to determine the appropriate Tool Tail™
(see selection grid - note that, in some situations, there are multiple options, so the
user may choose their preference). If the tool is tapered, measure the largest tool
shaft diameter.
2. Place web tail on top of tool in a location that does not inhibit the use of the tool.
3. Ensure that the web catch points are facing up [fig. 7].
a. Ensure the tail is positioned as far up the tool shaft as possible without affecting
its use. A minimum of 1 in. / 25mm away from the end of the tool is suggested.
b. If the tool is tapered, position the tail on or near the largest diameter.
5. Select and apply the appropriate tool trap using the selection grid to secure your Web
Tool Tail™ [fig. 8]. DO NOT use Cold Shrink Traps with Web Tool Tails™
6. Attach a tool lanyard to complete an appropriate tethering system [fig. 9].
*For further instructions, watch the product video at www.ergodyne.com.
