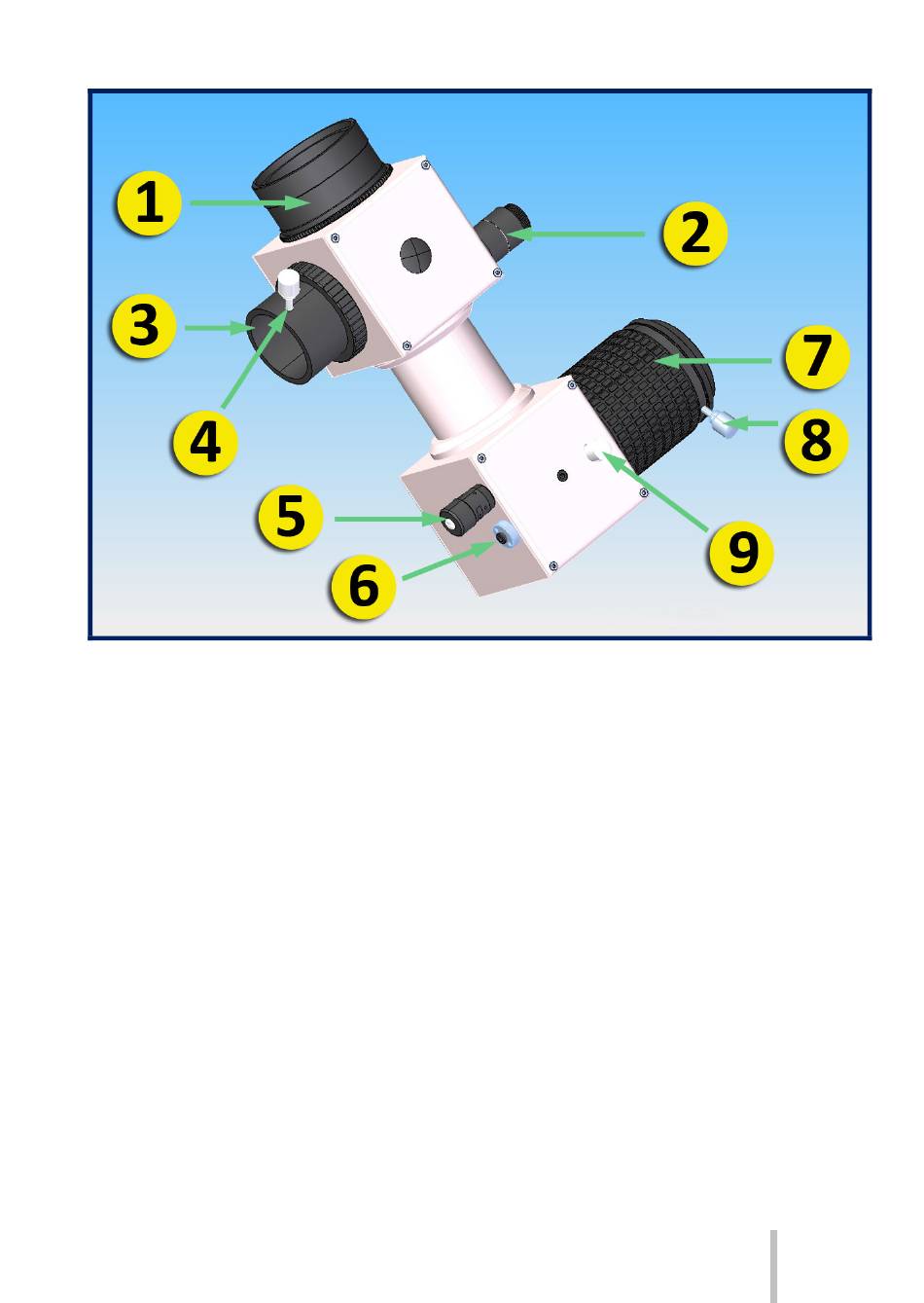

Part description
1. 2" Nosepiece
2. Slit illuminator
3. 1 ¼" Slit viewer port
4. Slit-viewer port locking screws
5. Micrometer
6. Rotation stage counter spring
(pre-adjusted, do not touch)
7. Focuser
8. Focuser locking screw
9. Grating angle locking screw
For a full list of accessories see Appendix D
5
