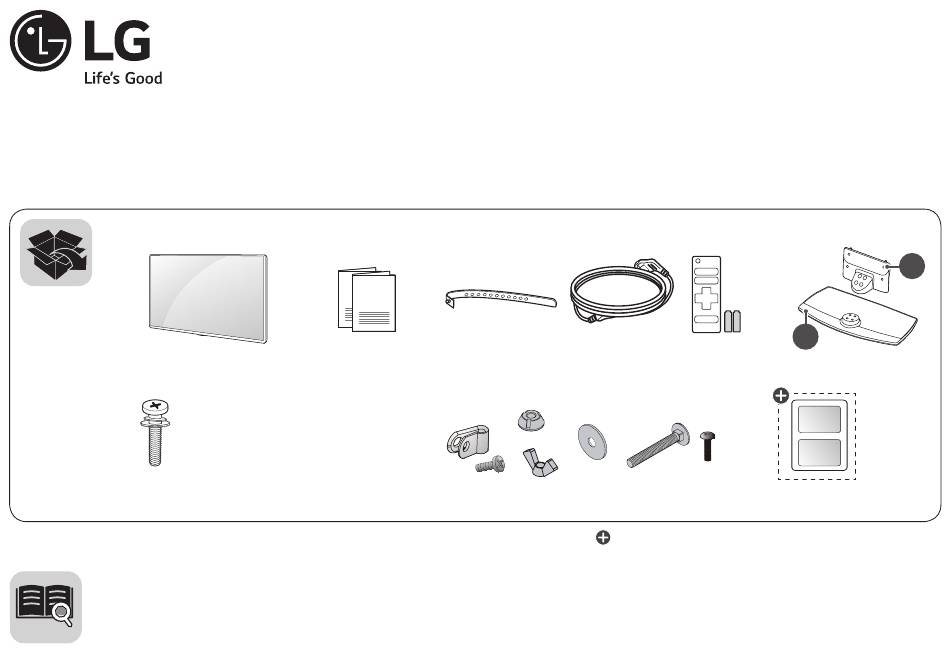

12
14
16
20
X 6
(M4 x L20)
32/40LV560H,
32/40LV570H
www.lg.com
ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras
consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir
vous y reporter ultérieurement.
X 8
(M4 x L20)
43/49/55LV560H,
43/49/55LV570H
X 2
X 2
X 2
: Depending upon model / Según el modelo / Selon le modèle
P/No: MFL69843818 (1906-REV03)
LED TV
32LV560H
32LV570H
40LV560H
40LV570H
43LV560H
43LV570H
49LV560H
49LV570H
55LV560H
55LV570H
AAA
AAA
AAA
b
X 2
Printed in Korea
a
Advertisement
Table of Contents
Related Manuals for LG 40LV560H
Summary of Contents for LG 40LV560H
- Page 1 LED TV ENGLISH Easy Setup Guide 32LV560H 32LV570H Please read this manual carefully before operating your set and retain it for future reference. 40LV560H 40LV570H ESPAÑOL 43LV560H 43LV570H Guía Rápida de Configuración 49LV560H 49LV570H Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
- Page 2 ADVERTENCIA : Para prevenir daños, este aparato debe ser instalado a la mesa/pared de acuerdo a la guía de Seguridad y Consultas. Lisez Sécurité et références. FRANÇAIS AVERTISSEMENT : Pour éviter les blessures, cet appareil doit être solidement fixé au bureau ou au mur, conformément aux directives du manuel Sécurité et références. 32/40LV560H, 43/49/55LV560H, 32/40LV570H 43/49/55LV570H 43/49/55LV560H,...
- Page 3 SPEAKER OUT LINE OUT...
- Page 7 1,0 A / 60 W 32LV570H-UA (29) (29) (19.4) (19,4) (9.4) (9,4) (17.3) (17,3) (3.3) (3,3) (13.3) (13,3) (10.6) (10,6) 40LV560H-UA 55.3 55,3 0.9 A / 90 W 0,9 A / 90 W 40LV570H-UA (35.8) (35,8) (22.6) (22,6) (9.4) (9,4) (20.7) (20,7) (2.1) (2,1) (19.1)
-
Page 9: Safety And Reference
OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 32LV560H 43LV560H 55LV560H 32LV570H 43LV570H 55LV570H 40LV560H 49LV560H... - Page 10 Warning! Important Safety • Only use attachments/accessories specified by the manufacturer. instructions • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution Read these instructions. Keep these instructions. when moving the cart/apparatus combination to Heed all warnings.
- Page 11 • Do not attempt to modify this product in any • Use only an authorized AC adapter and power way without written authorization from LG cord approved by LG Electronics. Otherwise, this Electronics. Unauthorized modification could may result in fire, electric shock, malfunction, or void the user’s authority to operate this product.
- Page 12 Preparing • Keep the product away from direct sunlight. • Never touch this apparatus or antenna during a lightning storm. • Image shown may differ from your TV. • When mounting a TV on the wall, make sure not • Your TV’s OSD (On Screen Display) may differ to install the TV by hanging the power and signal slightly from that shown in this manual.
-
Page 13: Lifting And Moving The Tv
Lifting and Moving the TV Using the Button When moving or lifting the TV, read the following You can operate the TV functions, using the to prevent the TV from being scratched or button. damaged and for safe transportation regardless of its type and size. -
Page 14: Mounting On A Table
Mounting on a Table Attaching the TV to a desk (Depending upon model) 1 Lift and tilt the TV into its upright position on a If mounting the TV on a table, make sure it is table. installed according to the method outlined in - Leave a 10 cm (4 inches) (minimum) space from ‘Attaching the TV to a desk’... - Page 15 [TYPE 1-3] [TYPE 2-2] 4-Screws (Not provided as parts of the product.) 2-Screws, 2-Washers, 2-Nuts (provided as parts of the product.) Stand Stand Desk Desk [TYPE 2-3] • Screw: M5 x L (*L: Table depth + 8~10 mm) ex) Table depth: 15 mm, Screw: M5 x L25 [TYPE 2-1] 2-Screws, 2-Washers, 2-Nuts (provided as parts of the product.)
-
Page 16: Using The Kensington Security System
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall Securing the TV to a Wall (optional) mount is easy to adjust or to connect the cables. -
Page 17: Connections (Notifications)
Connections (Notifications) 32LV560H 49LV560H 65LV570H 32LV570H 49LV570H 40LV560H 55LV560H Model You can connect various external devices to the TV. 40LV570H 55LV570H Supported external devices are: HD receivers, DVD 43LV560H players, VCRs, audio systems, USB storage devices, 43LV570H PC, gaming devices, and other external devices. For... -
Page 18: Other Connections
Other Connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. • HDMI Audio Supported Format: Dolby Digital (32 kHz / 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz) (Depending on model) •... - Page 19 Settings To select picture mode • PICTURE • Picture Mode Select the picture mode optimized for the viewing environment or the program. • Vivid Heightens contrast, brightness and sharpness to display vivid images. • Standard Displays images in standard levels of contrast, brightness and sharpness.
-
Page 20: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code Manufactured under license from Dolby to you on CD-ROM for a charge covering the cost Laboratories. -
Page 21: Troubleshooting
LG Electronics software. If needed, please - Electrical circuit humming/panel buzzing consult with LG Electronics and update new A low level noise is generated from a high-... -
Page 22: Supported Photo Formats
RGB (PC), HDMI (PC) supported mode Supported Photo Formats • Category: 2D (.jpeg, .jpg, .jpe) (Use HDMI IN 1 for PC mode) [Available file type] Horizontal Vertical Resolution SOF0: Baseline, Frequency (kHz) Frequency (Hz) SOF1: Extend Sequential, 640 x 350 31.46 70.09 SOF2: Progressive... -
Page 23: Supported Video Formats
Supported Video Formats Maximum: 1,920 x 1,080 @ 30p (only Motion JPEG 640 x 480 @ 30p) • .asf, .wmv [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream •... -
Page 24: Fcc Notice
Regulatory FCC RF Radiation Exposure Statement [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled FCC NOTICE environment. This transmitter must not be colocated or operating in conjunction with any (For USA) other antenna or transmitter. - Page 25 RSS-247 Requirement WARNING! (For Canada) Never place a television set in an unstable [For product having the wireless function using 5 location. A television set may fall, causing serious GHz frequency bands] personal injury or death. Many injuries, particularly to children, can be avoided by taking simple (1) The device for operation in the band 5150–5250 precautions such as: MHz is only for indoor use to reduce the potential...
- Page 26 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 27: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 28 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Model 32LV560H-UA, 32LV570H-UA, USA, Commercial User 1-888-865-3026 40LV560H-UA, 40LV570H-UA, CANADA 1-855-286-2456 43LV560H-UA, 43LV570H-UA, 49LV560H-UA, 49LV570H-UA, 55LV560H-UA, 55LV570H-UA, 65LV570H-UA Responsible LG Electronics USA, Inc.
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com P/NO : MFL71445401 (1901-REV00) -
Page 30: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C) RS-232C IN converter which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 32: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 33: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 34: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 37 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 38 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 40 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
