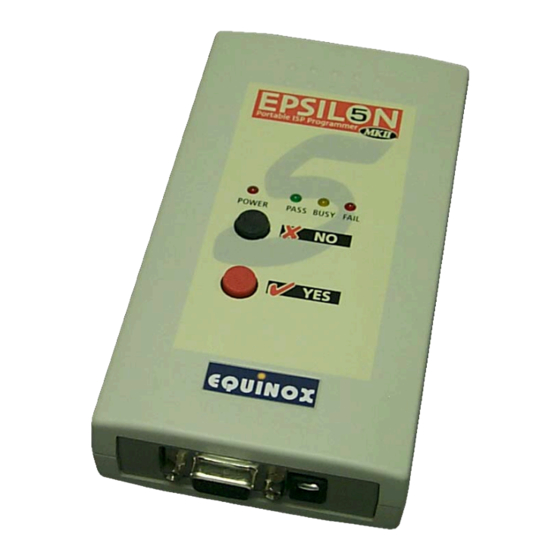

- Page 2 Portable ISP Programmer for Atmel, Atmel Wireless (Temic) and Philips FLASH Microcontrollers User Guide...
-
Page 3: Table Of Contents
Cont e nt s Copyright Information ......................iii Equinox Warranty Information ....................iv Electromagnetic Compatibility (EMC) Compliance.............vi RoHS Compliance........................vi Technical Support........................vii Product Documentation .......................viii 1.0 Programmer Overview ......................1 1.1 System Contents ......................1 1.2 Hardware Overview (external layout) ................2 1.3 Hardware Overview (internal layout) ................3 1.4 Push Button Functions....................4 1.5 Programmer Specifications ....................5 1.5.1 Programmer Specifications Overview..............5... - Page 4 3.0 Programmer / Target System Power Supply Scenarios + Standalone Mode Programming Instructions ....................37 3.1 Overview ........................37 3.2 Programmer / Target System Power Supply Schematic ..........38 3.3 Earthing requirements....................40 3.3.1 Overview.......................40 3.3.2 Laptop earthing issues ..................40 3.3.3 Desktop PC earthing issues .................40 3.3.4 Earthing recommendations ..................41 3.4 Programmer Powers the Target System ..............42 3.4.1 Overview.......................42...
-
Page 5: Copyright Information
Copyright I nfor m at ion Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. The software described in this document is furnished under license agreement or nondisclosure agreement and may be used or copied only in accordance with the terms of the agreement. -
Page 6: Equinox Warranty Information
Equinox Wa rra nt y I nfor m at ion This product is guaranteed by Equinox Technologies UK Limited for a period of 12 months (1 year) after the date of purchase against defects due to faulty workmanship or materials. One guarantee covers both parts and labour. - Page 7 Disclaimer Whilst every effort has been made to ensure that programming algorithms are correct at the time of their release, it is always possible that programming problems may be encountered, especially when new devices and their associated algorithms are initially released. It is Equinox’s Company Policy to endeavour to rectify any programming issues as quickly as possible after a validated fault report is received.
-
Page 8: Electromagnetic Compatibility (Emc) Compliance
Ele c t rom a gne t ic Com pat ibilit y (EM C) Com plia nc e The ‘EPSILON5’ is a CE Approved Product. It is designed for use in an ESD controlled environment i.e. development or production. This means, therefore, that the user must ensure that there is no possibility of damage from electrostatic discharge (ESD). -
Page 9: Technical Support
Te chnic a l Suppor t It is often the case that users experience problems when installing or using a product for the first time. If you have a technical support problem, please consult the following list for help: Manual On-line help Press <F1>... -
Page 10: Product Documentation
Produc t Doc um e nt at ion This manual provides an overview of the contents of the EPSILON5 Programming System plus associated hardware and software. References may be made to other hardware and software products which are not covered in detail in this manual. Please refer to the table below for a list of sources of documentation and/or browse to: http://www.equinox-tech.com/products/downloadsearch.asp Software:... - Page 11 ISP Pro – Manual This software is used to control the programmer in a production environment. It is not supplied as standard with this programmer. The following sources of documentation are available for this software: • Installation and User Manual •...
- Page 12 Downloading up-to-date documentation and software: In line with our policy of continuous improvement, the software and associated documentation for this product are updated on a regular basis. Please refer to the ‘Downloads Page’ for this product on our website at http://www.equinox-tech.com/products/downloadsearch.asp for the most up-to-date information for this product.
-
Page 13: Programmer Overview
1 .0 Progra m m e r Ove r vie w 1.1 System Contents Hardware • EPSILON5 MKII Programmer • 2 x Jumper Links for internal jumpers Cables • DC Power Cable • 9-way Female to 9-way Male Serial Cable •... -
Page 14: Hardware Overview (External Layout)
1.2 Hardware Overview (external layout) Top Panel ISP Cable Slot ISP cable plugs into relevant ISP Header internally and then exits the case through this slot. Front Panel <Target Vcc> LED - Indicates when ‘Target Vcc (Power)’ is ON - Does not indicate ‘Programmer Power’... -
Page 15: Hardware Overview (Internal Layout)
1.3 Hardware Overview (internal layout) Hardware 1. Atmel 6-way ISP (SPI) Header 2. Equinox 10-way ISP (SPI / UART) Header 3. Atmel 10-way ISP (SPI) Header 4. Jumper (J9) – Vcc Link 5. Jumper (J10) – Enable Target Power LED 6. -
Page 16: Push Button Functions
1.4 Push Button Functions The EPSILON5 programmer features two push buttons, <YES> and <NO>, which are used to control the programmer when it is operating in ‘Standalone Mode’. The function of these buttons is described below. Button Function of button The <No>... -
Page 17: Programmer Specifications
1.5 Programmer Specifications 1.5.1 Programmer Specifications Overview The table below details the hardware specifications for the programmer. Please refer to the stated section for further information about any specific parameter. Parameter Description / comment Refer section Target Device See Device Support List 1.6.1 Support Target Device... - Page 18 PC Control Software The programmer can be controlled using: • EQTools (as standard) • ISP-PRO (chargeable upgrade) • Standalone Upload Wizard (chargeable upgrade) • ConsoleEDS Evaluation version • ConsoleEDS PRO (chargeable upgrade) • ASCII Text Mode (chargeable upgrade) 10 PC requirements PC running Windows 95 / 98 / 2000 or ME / NT4 / XP 11 Power Supply There are 3 possible modes for powering the Programmer /...
- Page 19 19 ISP Headers 4 x ISP Headers (inside enclosure) Atmel 10-way (SPI) Atmel 6-way (SPI) iii. Atmel 10-way (JTAG) Equinox 10-way (SPI+UART) 20 Frequency generator Programmer can output a configurable square wave frequency output (SCK2) on the SCK2 pin. This is used to clock the Target Device in the absence of a Target Oscillator.
-
Page 20: Voltage Range
1.5.2 Voltage range The programmer is designed to operate from a supply voltage in the range defined in the table below. Correct operation outside of these limits is not guaranteed. The programmer supply voltage can be derived from either the CON1 connector or the Target Vcc pin on any of the ISP Headers. The CON1 centre pin and the Target Vcc are physically joined together inside the programmer if the jumper J9 is fitted. -
Page 21: Current Consumption / Parameters
1.5.3 Current Consumption / Parameters 1.5.3.1 Current Consumption The programmer can either be powered from the Target System via one of the ISP Headers or from an independent power supply via CON1. The table below details the programmer current consumption with a supply voltage of 5.0V and 3.3V for both ‘Standby’ mode and during a typical programming operation when the programmer is independently powered. -
Page 22: Dc Power Input Connector (Con1)
Fig. 1.5.3.2 Programmer – maximum current ratings Programmer mode Comments Units • Programmer supplying Power is supplied from External power to the Target System Power Supply via CON1 • J9 is fitted connecting the CON1 Vcc to the Target Vcc 1.5.4 DC Power Input Connector (CON1) It is possible to power the programmer from an external power supply by plugging the DC Power Cable supplied with the programmer into CON1. -
Page 23: J5 - Rs-232 Communications Port & Serial Cables
1.5.6 J5 – RS-232 Communications Port & Serial Cables 1.5.6.1 Connecting the programmer to the PC COM port The EPSILON5 programmer communicates with a PC via the RS-232 Communications Port (J5). A suitable 9-way to 9-way serial cable is supplied with the programmer. The programmer is supplied with the following PC Serial Cables / Adaptors: 1. - Page 24 1.5.6.3 Serial Cable Pin-outs Fig. 1.5.6.1 Pin-out of J5 - RS-232 Communications Port Pin No. RS232 pin Description Not Connected Receive Transmit Not Connected 0 Volt Not Connected Not Connected Not Connected RING Not Connected Fig. 1.5.6.2 Connections for 9-way to 9-way Serial Cable (Straight through cable) 9-way (Male) 9-way (Female) Fig.
- Page 25 EPSILON5 MKII Programmer - User Guide V1.12 – 1 August 2007...
-
Page 26: Device Support
1.6 Device Support 1.6.1 Devices supported by the programmer The programmer supports the following devices: Silicon Family Programming Device support vendor algorithm Atmel AT89S LV SPI - AT89(L)S8252/53 - AT89(L)S51/52 (including ‘L’ versions) - AT89S 2051 / 4051 - AT89S8253 Atmel AT90S (AVR) LV SPI...
