All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 ADL Embedded Solutions ADLE3800PC...
Solutions will be covered, provided a written claim for service under warranty is received by ADL Embedded Solutions no less then 30 days prior to the end of the warranty period of within 30 days of discovery of the defect – whichever comes first. Warranty coverage is contingent upon proper handling and operation of the product.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. page 8 ADL Embedded Solutions ADLE3800PC...
Page 9
FCC Approvals for the United States of America Chapter: Introduction ADL Embedded Solutions ADLE3800PC page 9...

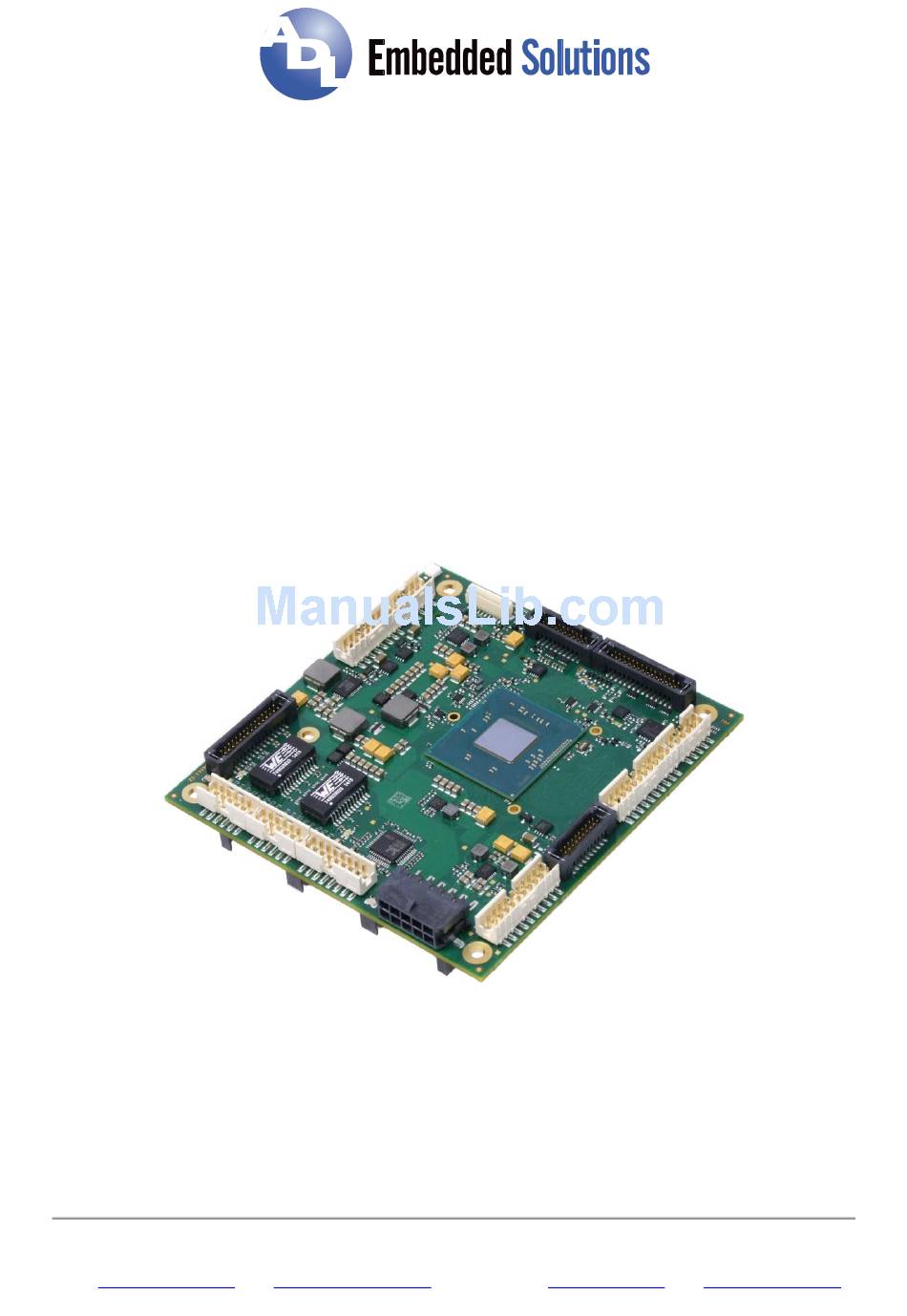

2 Overview 2.1 Features The ADLE3800PC is a highly complex motherboard in the PC/104™ form factor, complying with the state-of-the-art "PCIe/104™" standard. It's based on a System-On-Chip (SoC) of Intel®'s Atom E3800 product family. Modern low voltage DDR3 technology provides top-notch memory performance, accomodating up to 8 GByte of RAM (DDR3L-1600) via SO-DIMM204.
Chapter: Connectors Features 3 Connectors This section describes all the connectors found on the ADLE3800PC. page 12 ADL Embedded Solutions ADLE3800PC...
P1302 "System/SM-Bus" p. 15 P1303 "Monitoring Functions" p. 31 U600* "Memory" p. 16 P1100* "PCI/104-Express Bus" p. 19 P1101* "PCI-Express Mini Card with mSATA" p. 21 * not pictured (see bottom of the board) ADL Embedded Solutions ADLE3800PC page 13...
For this to work, PS_ON# must be connected to the power supply's PS_ON input. If PS_ON# is not otherwise connected, the ADLE3800PC can be damaged beyond repair if a thermal shutdown event occurs. In rare instances, if power is not shut down, the board will continue to heat up until failure occurs.
16 DQ16 DQ20 data 20 data 17 DQ17 DQ21 data 21 ground ground data strobe 2 - DQS2# data mask 2 data strobe 2 + DQS2 ground ground DQ22 data 22 page 16 ADL Embedded Solutions ADLE3800PC...
Page 17
45 data 41 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ADL Embedded Solutions ADLE3800PC page 17...
Page 18
58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current page 18 ADL Embedded Solutions ADLE3800PC...
Chapter: Connectors 3.6 PCI-Express Mini Card with mSATA As a soldering option, the ADLE3800PC can be equipped with PCI-Express Mini Card connector to interface with approved peripherals, such as Wi-FI and storage cards via miniPCIe. In addition the PCIe Mini Card connector supports storage modules via mSATA.
Chapter: Connectors DVI/HDMI/VGA 3.7 DVI/HDMI/VGA The ADLE3800PC provides a DVI/HDMI/VGA interface which is realized as a 2x15pin header (TFM-115-02-S-D-WT, mating connector e.g. SFM-115-02-S-D-xx). For parallel use of DVI- and CRT signals a custom cable design will be OTICE required. Please ask your distributor for recommended products.
Chapter: Connectors 3.8 DisplayPort The ADLE3800PC offers a DisplayPort interface which is realized as 2x10pin connector (TFM-110-02-S-D-WT, mating connector SFM-110-02-S-D-xx). This interface can also be operated in HDMI/DVI mode. To achieve this, pin 2 must be connected to 3.3V (e.g. pin 5).
USB+ data lane 3 ground ground ground ground USB+ data lane 5 USB5 USB6 USB+ data lane 6 USB- data lane 5 USB5# USB6# USB- data lane 6 5V for USB5 USB5VCC USB6VCC 5V for USB6 page 24 ADL Embedded Solutions ADLE3800PC...
USB x data - USB3-x.D- ground ground reserved USB x transmit + SSTXx+ reserved USB x transmit - SSTXx- ground ground reserved USB x receive + SSRX+ reserved USB x receive - SSRX- reserved power supply reserved ADL Embedded Solutions ADLE3800PC page 25...
LAN1# LAN0# LAN channel 0 minus LAN channel 3 plus LAN3 LAN2 LAN channel 2 plus LAN channel 3 minus LAN3# LAN2# LAN channel 2 minus LAN speed 100Mbit SPEED100 3.3V 3.3 volt supply page 26 ADL Embedded Solutions ADLE3800PC...
Chapter: Connectors 3.12 Audio The ADLE3800PC's audio functions are provided via a 2x8pin connector (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). This interface provides eight output channels for full 7.1 sound output. Two microphone inputs and two AUX inputs are also available.
SATA Interfaces 3.13 SATA Interfaces The ADLE3800PC provides two SATA interfaces allowing transfer rates of up to 3 Gbit per second. These interfaces are made available via two 7 pin connectors. The required settings are made in the BIOS setup.
The serial interfaces COM1 and COM2 are provided via a 2x5pin connector (FCI 98424-G52-10LF, mating connector e.g. FCI 90311-010LF). Description Name Name Description reserved reserved receive data request to send transmit data clear to send reserved reserved ground SVCC 5V standby supply ADL Embedded Solutions ADLE3800PC page 29...
(e. g. temperature sensor), are accessible via an 10 pin connector (JST BM10B-SRSS-TB, mating connector: SHR-10V-S(-B)). Name Description 3.3V 3.3V supply CS-SMB-CLK SMBus clock CS-SMB-DAT SMBus data ground 5V supply FANPWM FAN control TACH FAN monitoring reserved reserved reserved ADL Embedded Solutions ADLE3800PC page 31...
RGB LED Chapter: State LEDs 4.2 RGB LED The ADLE3800PC has a tricolor LED, which signals status messages by using different colors and flash intervals. Status Codes RGB LED: Color Interval Meaning solid Invalid system state White once Powerfail Cyan...
Chapter: State LEDs LAN Activity LED 4.3 LAN Activity LED The ADLE3800PC has two unicolor LEDs, which signal LAN activity of the current LAN port. LAN link activity: Color Interval Meaning none solid no LAN activity green flashing LAN active...
Chapter: State LEDs 4.4 LAN Speed LED Two bicolor LEDs show the links speed of the current LAN port. LAN speed: Color Interval Meaning none solid 10 Mbit/s orange solid 100 Mbit/s green solid 1000 Mbit/s ADL Embedded Solutions ADLE3800PC page 35...
Each setup entry has a short help text associated with it. This is displayed in the upper right hand corner of the screen. page 36 ADL Embedded Solutions ADLE3800PC...
Options: none BayTrail SoC Options: none Total Memory Options: none System Date Options: The system date can be adjusted here. System Time Options: The system time can be adjusted here. ADL Embedded Solutions ADLE3800PC page 37...
Temperature (Min/Max) Options: none ext. USB-Port Voltage Options: Off in S3-5 / by SVCC int. USB-Port Voltage Options: Off in S3-5 / by SVCC WatchDogTimer Mode Options: Normal Mode / Compatibility Mode ADL Embedded Solutions ADLE3800PC page 53...
Options: Do not launch / UEFI only / Legacy only Video Options: Do not launch / UEFI only / Legacy only Other PCI devices Options: Do not launch / UEFI / Legacy ADL Embedded Solutions ADLE3800PC page 55...
│ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc. North Bridge Sub menu: see "North Bridge" (page 60) South Bridge Sub menu: see "South Bridge" (page 64) ADL Embedded Solutions ADLE3800PC page 59...
Restore AC Power Loss Options: Power Off / Power On / Last State Onboard Gigabit LAN X Options: Enabled / Disabled mPCIe select pin Options: none mPCIe select pin Options: none page 64 ADL Embedded Solutions ADLE3800PC...
USB2 Link Power Management Options: Enabled / Disabled USB 2.0(EHCI) Support Options: Disabled / Enabled USB Per Port Control Options: Enabled / Disabled USB Port x Options: Disabled / Enabled page 66 ADL Embedded Solutions ADLE3800PC...
The program should be started as follows: DecdFlsh BIOS-Filename After checking the name of the BIOS file and its length the BIOS will be programmed. The flashing takes nearly 75 seconds. The firmware will get updated automatically. page 74 ADL Embedded Solutions ADLE3800PC...
Medium heat spreader: Blue and red holes Full size heat spreader: Blue and green holes To determine which heat spreaders are available for the ADLE3800PC, please refer to the ADLE3800PC datasheet. Dimensions are in inch (1 in = 2.54cm; 1 mil = 0.0254 mm)
5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s , for packaged boards Shock and vibration figures pertain to the motherboard alone and do not OTICE include additional components such as heat sinks, memory modules, cables etc. page 80 ADL Embedded Solutions ADLE3800PC...
In case the temperature exceeds 110°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. The ADLE3800PC includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector.
(POST code card). The meaning of these codes is described in the document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their website http://www.ami.com. The following additional OEM POST codes are generated: Code Description BIOS-API started PCA9535 started PWRCTRL-Firmware started ADL Embedded Solutions ADLE3800PC page 83...
If interrupts must exclusively be available on the ISA side, they have to be reserved through the BIOS setup. The exclusivity is not given and not possible on the PCI side. Address Function IRQ0 Timer IRQ1 IRQ2 (8) IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 IRQ13 IRQ14 IRQ15 page 84 ADL Embedded Solutions ADLE3800PC...
