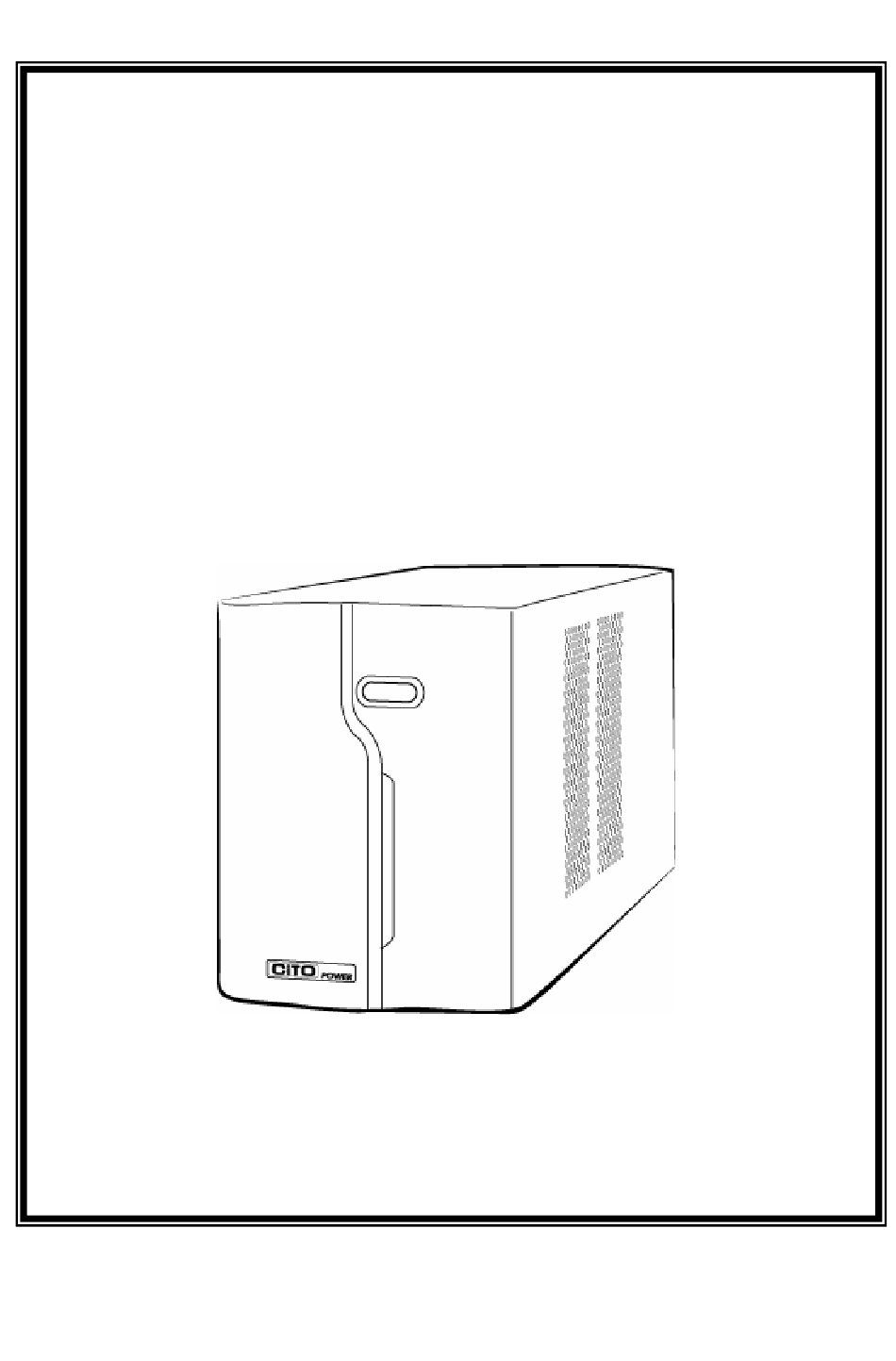

- Page 1 USER MANUAL CiTO Power - POLO Series CiTO Power Line-Interactive CPL-B1000/CPL-B1400/CPL-B2000 Uninterruptible Power System...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual contains important instructions for models Line Interactive CPL-B1000/CPL-B1400/CPL-B2000 that should be followed during installation and maintenance of the UPS and batteries. -
Page 3: Safety Caution
Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. Internal battery voltage is 24Vdc. Sealed, lead-acid, 6 cells battery. Connection to any other type of receptacle other than a two-pole, three-wire grounding receptacle may result in a shock hazard as well as violate local electrical codes. -
Page 4: Wichtige Sicherheitshinweise
Servicing of batteries should be performed or supervised by qualified personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries. When replacing batteries, replace with the same number of the sealed lead-acid batteries. This pluggable type A equipment with battery already installed by the supplier is operator installable and may be operated by laymen. -
Page 5: System Description
System Description Front Panel— 1. Fault LED 2. AC Mode: Load Level LEDs Backup Mode: Battery Capacity LEDs 3. AC Mode: Green Lighting Backup Mode: Green Flashing 4. Power “ON/OFF” Switch Back Panel—... - Page 6 Installation and Operation Installing the UPS is as easy as following the steps shown. Be aware of the Power Switch must be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure. 1.
- Page 7 4. Computer Connection Connect one computer-related device into each of the power receptacles supplied on the back of the UPS (maximum of three devices). 5. Modem/Phoneline Connection Plug incoming internet line into the “In” socket at the back of the UPS. Use one more Internet line cable and plug one end of the Internet line cable to the “Out”...
- Page 8 6. Serial Cable Connection To allow for unattended system shutdown for your operating system, connect the serial cable as per diagram below. 7. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.
- Page 9 Chart 2 After removing battery cover, gently extract battery disconnecting the two wires connecting to the Polo series. Be sure to replace the same type of batteries and dispose of old batteries properly at an appropriate recycling facility. Chart 3...
- Page 10 Software Installation -- WinPower -- WinPower is a brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPS.
-
Page 11: Troubleshooting
Trouble Shooting Symptom Possible Cause Remedy No LED display 1. Battery weak. 1. Re-charge battery up on the front to 8 hours. panel. 2. Battery defect. 2. Replace with the same type of battery. 3. Power switch is not 3. Press power switch pressed. -
Page 12: Specification
Specification CPL-B1000 CPL-B1400 CPL-B2000 MODEL CAPACITY VA/W 1000VA/600W 1400VA/840W 2000VA/1080W Voltage 115VAC or 220/230/240VAC INPUT Voltage Range 85-140VAC / 162-290VAC Voltage 115VAC or 220/230/240VAC Voltage Regulation +/- 10% (Battery Mode) OUTPUT Frequency 50Hz or 60Hz Frequency Regulation +/-1 Hz (Battery Mode) Output Waveform Modified Sinewave 12V7Ah...
