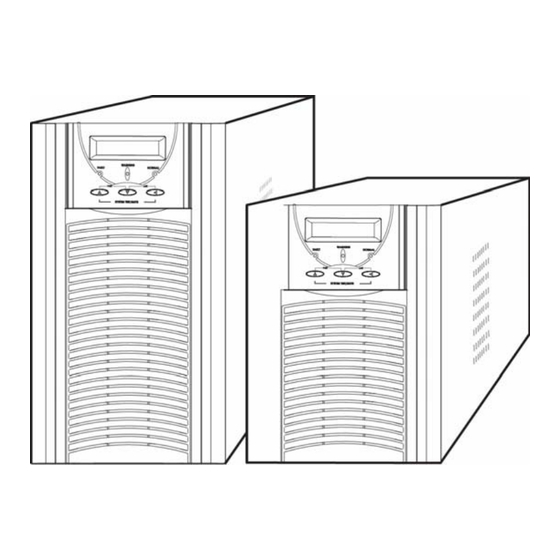

USER'S MANUAL
CiTO Power - ON-SAFE Series
CPO-S1000 / CPO-S2000 / CPO-S3000 /
CPO-S1000R / CPO-S2000R / CPO-S3000R
Uninterruptible Power Supply
CONTENTS
1. INTRODUCTION ...........................................................
2. SAFTY INSTRUCTION...............................................
3. SYSTEM DESCRIPTION..............................................
4. CABLE CONNECTION .................................................
5. OPERATION .................................................................
6. TROUBLE SHOOTING GUIDE.....................................
7. OPERATION MODES OF THE UPS ............................
8. COMPUTER INTERFACE ............................................
9. SPECIFICATIONS.......................................................
1
1
2
4
7
8
13
17
19
21
