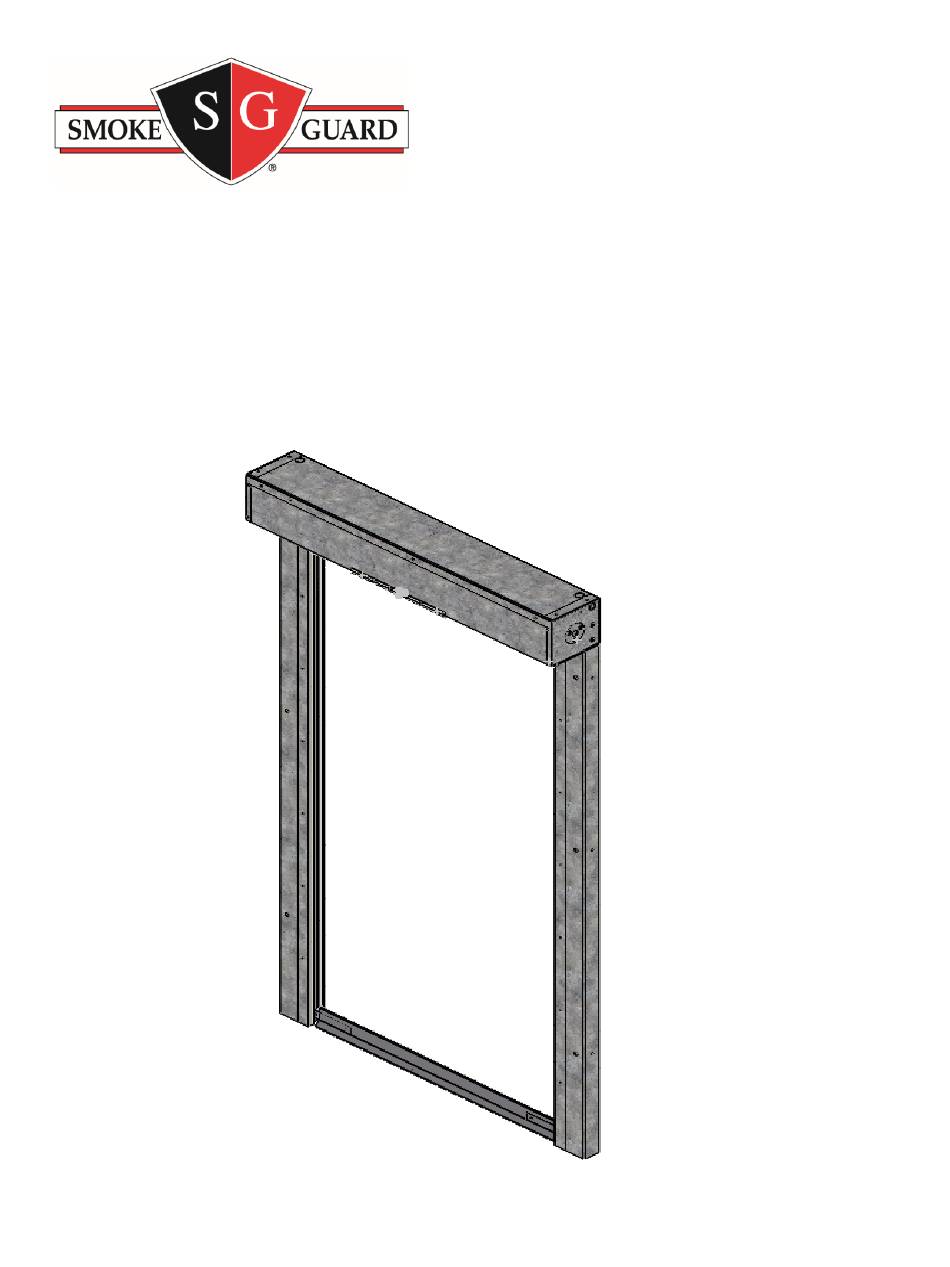

M1000 Install Manual
GENERAL
The M1000's operation is simple and reliable, containing no motors or electronics. The system is always
held in the fully open position by a corrosion resistant fusible link that will break when temperatures reach
165⁰F. The curtain then drops to the floor protect the opening. It is easily rewinds manually with a 1/2''
ratchet using the rewind screw on the Left side of the housing.
M1000 rev.2
Advertisement
Table of Contents
Related Manuals for Smoke Guard M1000
Summary of Contents for Smoke Guard M1000
- Page 1 M1000 Install Manual GENERAL The M1000’s operation is simple and reliable, containing no motors or electronics. The system is always held in the fully open position by a corrosion resistant fusible link that will break when temperatures reach 165⁰F. The curtain then drops to the floor protect the opening. It is easily rewinds manually with a 1/2’’...
- Page 2 5. Remove the Front cover of the housing, 6. Loosely Zip Tie around the Bottom Bar and curtain roll inside the housing. 7. Mount the housing using predrilled holes in the 4 corners of the Back of the housing. Note: Housing is 25lbs per foot M1000 rev.2...
- Page 3 9. Use provided strap to drill and pop rivit extra screen onto the screen barral to prevent curtain from over traveling. Please see the DO Not Drill locations marked on the strap, these mark the dampener and electronic locations along the curtain barral. See pics below Do Not Drill Do Not Drill 4’’ 4’’ M1000 rev.2...
- Page 4 ½’’ Retract bolt Left side only If the guides are to be recessed into a pocket, verify that a guide with the following dimensions will fit Side Guides in the pocket: width: 3’’ depth: 3 ½’’ ° ° M1000 rev.2...
- Page 5 3. Verify that the bottom bar completely seats on the floor. The curtain strap is set to the designed drop length, however dependent on field conditions it may be necessary to reset the drop height by moving the curtain strap. (See strapping instructions on pg. 3 or contact Smoke Guard if necessary).
- Page 6 4. Close latch and reattach fusible link with provided hardware Front of housing Bottom Bar Bottom Bar Fusible link assembly Finishing 1. Run a bead of fire calking or paintable silicone around the inside of the system where it meets the wall. See pic below M1000 rev.2...
- Page 7 M1000 rev.1...
