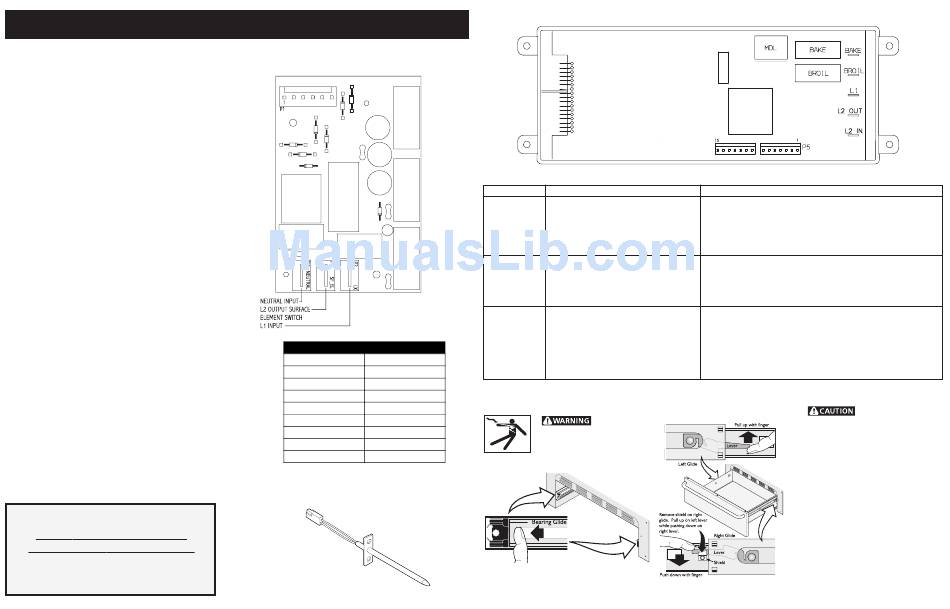

Frigidaire FEFS66DSG Service Data Sheet

SERVICE DATA SHEET
Electric Ranges with ES 200/205/300 & 305 Electronic Oven Controls
-
NOTICE
This service data sheet is intended for use by persons
having electrical and mechanical training and a level of knowledge
of these subjects generally considered acceptable in the appliance
repair trade. The manufacturer cannot be responsible, nor assume
any liability for injury or damage of any kind arising from the use
of this data sheet.
SAFE SERVICING PRACTICES
To avoid the possibility of personal injury and/or property damage, it is
important that safe servicing practices be observed. The following are
examples, but without limitation, of such practices.
1. Before servicing or moving an appliance remove power cord from
electrical outlet, trip circuit breaker to OFF, or remove fuse.
2. Never interfere with the proper installation of any safety device.
3. GROUNDING: The standard color coding for safety ground wires
is GREEN or GREEN WITH YELLOW STRIPES. Ground leads are
not to be used as current carrying conductors. It is extremely
important that the service technician reestablish all safety
grounds prior to completion of service. Failure to do so will
create a potential safety hazard.
4. Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from
sharp edges, high-temperature components, and moving parts.
• All uninsulated electrical terminals, connectors, heaters, etc. are
adequately spaced away from all metal parts and panels.
• All safety grounds (both internal and external) are correctly and
securely reassembled.
OVEN CALIBRATION
Set the electronic oven control for normal baking at 350°F. Obtain an
average oven temperature after a minimum of 5 cycles. Press STOP/
CLEAR to end bake mode.
TEMPERATURE ADJUSTMENT
1. Set EOC to bake at 550°F.
2. Within 5 seconds of setting 550°F, press and hold the bake pad for
approximately 15 seconds until a single beep is heard (longer may
cause F11 shorted keypad alarm).
3. Calibration offset should appear in the display.
4. Use the slew keys to adjust the oven temperature up or down 35°F
in 5°F increments.
5. Once the desired (-35° to 35°) offset has been applied, press
STOP/CLEAR.
Note: Changing calibration affects normal Bake mode. The adjustments
made will not change the Self-Cleaning cycle temperature.
IMPORTANT
DO NOT REMOVE THIS BAG
OR DESTROY THE CONTENTS
WIRING DIAGRAMS AND SERVICE
INFORMATION ENCLOSED
REPLACE CONTENTS IN BAG
P/N 316417613 REV A (0410)
SIMMER SELECT PCB (some models)
RTD SCALE
Temperature (°F) Resistance (ohms)
32 ± 1.9 1000 ± 4.0
75 ± 2.5 1091 ± 5.3
250 ± 4.4 1453 ± 8.9
350 ± 5.4 1654 ± 10.8
450 ± 6.9 1852 ± 13.5
550 ± 8.2 2047 ± 15.8
650 ± 9.6 2237 ± 18.5
900 ± 13.6 2697 ± 24.4
RESISTANCE TEMPERATURE DECTECTOR
ELECTRONIC OVEN CONTROL (REAR VIEW)
ELECTRONIC OVEN CONTROL FAULT CODE DESCRIPTIONS
Fault Code
Likely Failure Condition/Cause
F10 Runaway Temperature.
F11 Shorted Keypad.
F12 Bad Micro Identification.
F13 Bad EEPROM Identification/Checksum error.
F30 Open probe connection.
F31 Shorted Probe connection.
F90 Maximum oven door unlock time exceeded.
F91 Maximum oven door unlock attempts exceeded.
F92 Maximum oven door open time exceeded.
F93 Maximum oven door lock time exceeded.
F94 Maximum oven door lock attempts exceeded.
REMOVING AND REPLACING WARMER DRAWER (some models)
Electrical Shock
Hazard can occur and result in serious
injury or death. Disconnect appliance
from electric power before cleaning and
servicing the warmer drawer.
Fig.2
Suggested Corrective Action
1. (F10 only) Check RTD Sensor Probe & replace if necessary. If oven is overheating, disconnect
power. If oven continues to overheat when the power is reapplied, replace EOC. Severe overheating
may require the entire oven to be replaced should damage be extensive.
2. (F11, 12 & 13) Disconnect power, wait 30 seconds and reapply power.
3. (F11, 12 & 13) If fault returns upon power-up, replace EOC.
1. (F30 or F31) Check resistance at room temperature & compare to RTD Sensor resistance chart.
If resistance does not match the RTD chart replace RTD Sensor Probe. Check Sensor wiring
harness between EOC & Sensor Probe connector.
2. (F30 or F31) Check resistance at room temperature, if less than 500 ohms, replace RTD Sensor
Probe. Check for shorted Sensor Probe harness between EOC & Probe connector.
1. (F90, 91, 92, 93 & 94) Check the wiring between EOC & Lock Motor Micro Switch.
2. (F90, 91, 92, 93 & 94) Replace the Motor Door Latch assembly if necessary.
3. (F90, 91, 92, 93 & 94) Check for binding of the Latch Cam, Lock Motor Rod & Lock Motor Cam.
4. (F90, 91, 92, 93 & 94) Check to see if Lock Motor Coil is open. If open, replace Lock Motor
Assembly.
5. (F90, 91, 92, 93 & 94) Lock Motor continuosly runs - if Micro Switch is open, replace Lock Motor
Assembly.
6. (F92, 93 & 94) Check oven door Light Switch - if open, replace Switch.
7. If all situations above do not solve problem, replace EOC.
To Remove Warmer Drawer:
1. Turn power off before removing
the warmer drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with
a hex-head screw (See Fig. 1). Using a 1/4"
socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull up
on the left glide lever and push down on the right
glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer
body.
2. Pull the bearing glides to the front of the
chassis glide (See Fig. 2).
3. Align the glide on each side of the drawer with the
glide slots on the range.
4. Push the drawer into the range until levers "click"
(approximately 2"). Pull the drawer open again to
seat bearing glides into position. If you do not
hear the levers "click" or the bearing glides do
not feel seated remove the drawer and repeat
Fig.1
steps 2-4. This will minimize possible damage to
the bearing glides.
