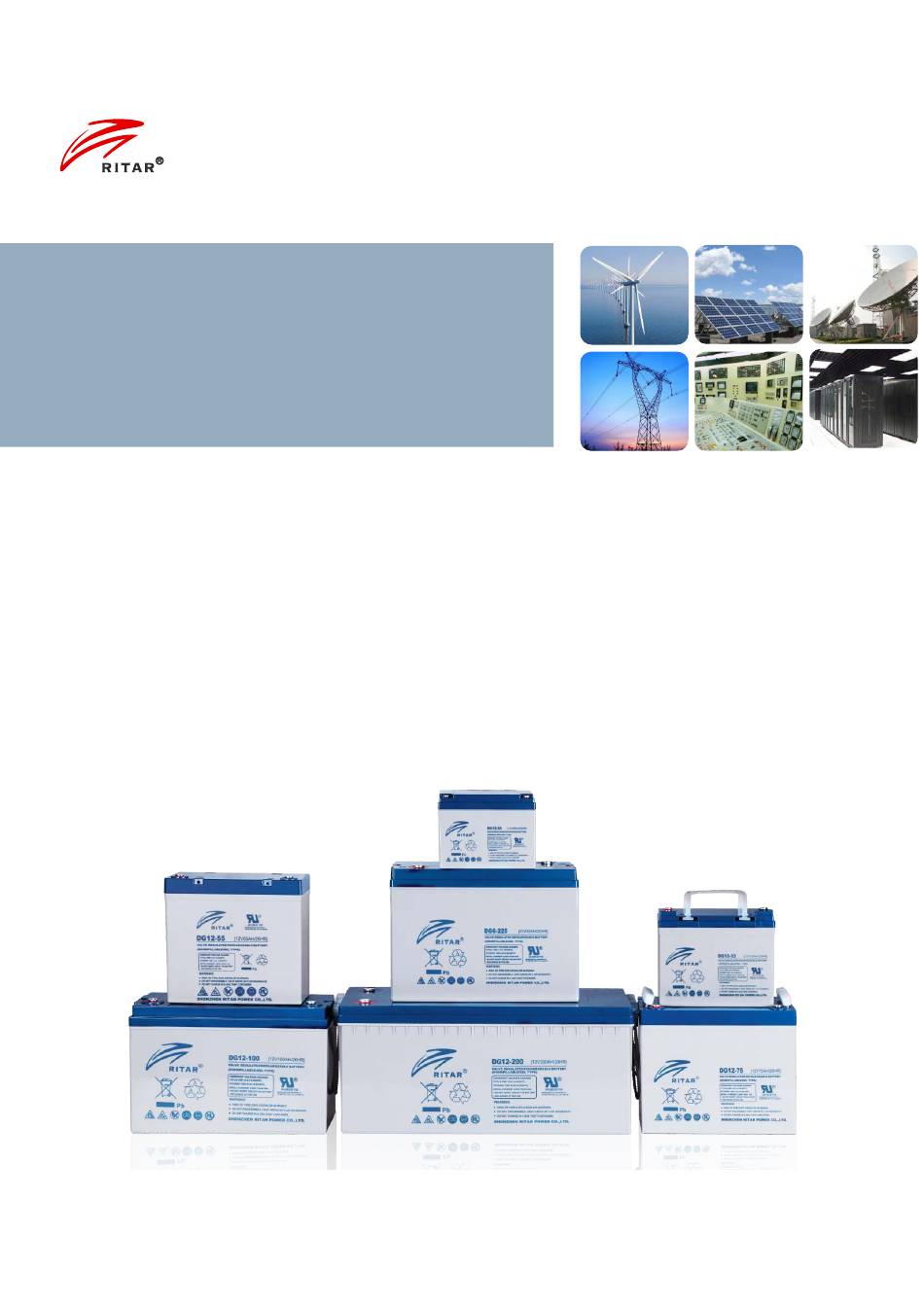

- Page 1 RITAR INTERNATIONAL GROUP LIMITED Technical Manual DG Series VRLA Battery...
-
Page 2: Table Of Contents
Contents Page Item Prolegomenon 1 Application Range 2 Check 3 Storage before Installation 4 Installation Cautions 5 Battery Features 6 Working Principle 7 Battery Charge, Discharge & Life 8 Record 9 Maintenance 10 Common Faults & Solutions... -
Page 3: Prolegomenon
Prolegomenon In order to use RITAR GEL series battery correctly and safely, please read this technical manual and other data together with battery carefully for a comprehensive understanding. ★Pay attention to safety during installation to avoid accident. ★It is required for users to read this manual carefully and keep it properly. -
Page 4: Installation Cautions
10 years standby use under optimal float charge conditions and below optimal operating temperature of 25 C 2.Patent Designed Construction RITAR batteries are equipped with PE compound separator construction, which ensures that gel electrolyte is distributed evenly through-out the inner battery and ensures the best evenness of all parts of the battery. -
Page 5: Working Principle
4.Low Self Discharge Because of the use of lead-calcium grids alloy, RITAR batteries have low self discharge and reliable performance. In room temperature, self discharge ratio per month of RITAR battery is about 3% of the battery capacity. -
Page 6: Battery Charge, Discharge & Life
VRLA batteries, because equalizing charge will increase water loss and grid corrosion, which will cause early failure. Equalizing charge requirements for RITAR battery are as follows: ※ The equalizing charging voltage is related to the ambient temperature. The equalizing charging voltage of single cell is 2.35v-2.45v/cell at 25 ℃. - Page 7 5. Charge Curve of Cycle Use The batteries for cycle service adopt the constant Charge Characteristic Curve of Cycle Use voltage but limited current method. At 20℃ ~25℃ , 2.42 2.60 the charge voltage of GEL series battery is 2.40V Charge Voltage 2.36 2.40...
- Page 8 C25 Discharge capacity at 25 ℃ (AH) Discharge capacity at t℃ (AH) Environment temperature during discharge (℃) Temperature compensation coefficient 20Hr rate discharge：K=0.006/℃；5Hr rate discharge ：K=0.007/℃ rate discharge ：K=0.008/℃；1Hr rate discharge ：K=0.010/℃ Temperature vs Capacity Curve as below: Temperature vs Capacity Curve 1 2 0 1 1 0 1 0 0...
-
Page 9: Record
Record The operating record of stationary batteries is very important for battery maintenance and protection. This information is useful for user to confirm battery life and adjust the longevity. Battery is allowed to operate at a temperature lower than 25℃ , however, the charging time will be relatively long. -
Page 10: Common Faults & Solutions
1.3 Yearly inspection and initial inspection For Yearly inspection and initial inspection, conduct all the 1.1, 1.2 and following checking items and record them. ） Check and record internal resistance of all connectors; ） Try to check AC current and voltage from rectifier. 1.4 Special inspection Batteries need inspection to check if they get damaged in special situations (such as over-discharge, abuse use due to charging machine failure, etc).
