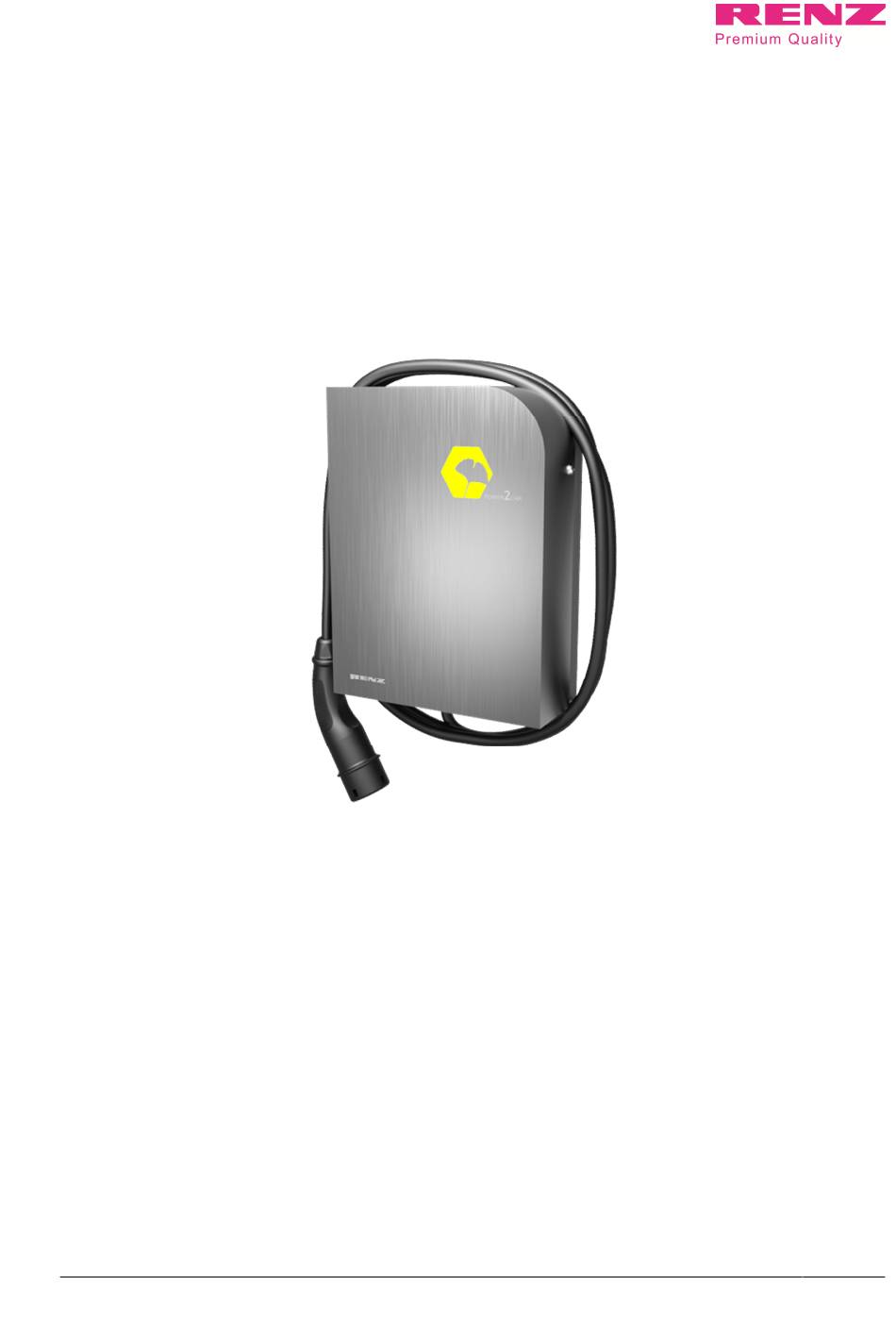

POWER2CAR STEEL + CITY Wallbox
Translation of the original operating instructions
Impressum
Chr. Renz GmbH
Rechbergstraße 44
73540 Heubach
Telefon: +49 (0) 7173 - 186-0
Fax: +49 (0) 7173 – 186-86
E-Mail: mail@renz.com
www.renz.com
www.renz-germany.de
Document information
Type:
Instruction
Version:
1.4
Date:
13.10.2021
Order No.:
8198010102
© Chr. Renz
MR
1/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renz POWER2CAR STEEL + CITY Wallbox
Summary of Contents for Renz POWER2CAR STEEL + CITY Wallbox
- Page 1 __________________________________________________________________________________ POWER2CAR STEEL + CITY Wallbox Translation of the original operating instructions Impressum Chr. Renz GmbH Rechbergstraße 44 73540 Heubach Telefon: +49 (0) 7173 - 186-0 Fax: +49 (0) 7173 – 186-86 E-Mail: mail@renz.com www.renz.com www.renz-germany.de Document information Type: Instruction...
-
Page 2: Table Of Contents
End charging process ................12 Maintenance ....................12 Annual......................12 Technical data ....................13 EU Declaration of Conformity according to Low Voltage Directive 2014/35/EU Annex IV ..................14 Appendix Service ..................15 Illustration LED code sticker................15 Information, help and questions about the product .........15 © Chr. Renz 2/18... -
Page 3: Safety
Designs of the charging station and documentation There are also different documents for the respective versions, which can be downloaded from the In- ternet as PDF files at www.renz.com. POWER2CAR STEEL Wallbox can be used outdoors and in covered areas and is described in these instructions. -
Page 4: Installation, Maintenance And Servicing
The manufacturer cannot guarantee the functional reliability of the unit. No liability is accepted for consequential damage. 2. Disposal If the charging station is finally taken out of service, the individual components must be disposed of properly at a recycling facility. © Chr. Renz 4/18... -
Page 5: Structure And Type Plate
1. Position of the type plate Figure 2 This illustration shows the position of the type plate. In case of questions with the technical support, the most important data for the assignment of the charging station can be read here. © Chr. Renz 5/18... -
Page 6: Installation
The unit has a stainless steel wall housing with which the unit is fixed to the wall. The unit is fixed to the wall by means of the 4 fixing holes in the wall casing using 12 mm dowels and 10 mm hexagonal wood screws. Dowels and screws are included in the scope of delivery of the unit © Chr. Renz 6/18... -
Page 7: Connection Or Supply Line
RCD installed in the distribution system trips sporadically. The following residual current circuit breakers are immune to these spikes and have proven themselves in practice: Manufacturer F204xx FS453E FS453M Döple DFS 4B SK xx/0,03A DFS 4 xxx/0,03-EV Table 2 © Chr. Renz 7/18... -
Page 8: Checking The Residual Current Device
When pressed, a 6 mA DC residual current is generated. The DC monitor then generates an AC residual current which triggers the residual current circuit breaker in the house distri- bution system. This function must be checked when the unit is put into operation and later once a year. © Chr. Renz 8/18... -
Page 9: Electrical Connection
(see chapter 4.8.) Release from car (white wire) (When charging plug is in the car) Charging cable with type 2 plug (Mounted on delivery) Fine-wire fuse 5 x2 0 1A slow-blow Communication interface K1 RS485 Table 3 © Chr. Renz 9/18... -
Page 10: Release Contact
Charging current setting to the vehicle DIP 1 ON, rest OFF => 10 A DIP 2 ON, rest OFF => 16 A Activation RS485 interface DIP 8 OFF => RS485 switched off DIP 8 ON => RS485 switched on Table 4 © Chr. Renz 10/18... -
Page 11: Operation
The POWER2CAR STEEL wallbox uses a type 2 charging plug, which is used in Europe and is sup- ported by all common vehicles there. The associated charging cable has a length of 5m. The entire device including the plug is designed for 11 kW, 16 A. © Chr. Renz 11/18... -
Page 12: Load Vehicle
If the charging station is operated in public areas, additional maintenance must be car- ried out in accordance with the DGUV regulations! Danger: Defective or damaged components must be replaced immediately! Danger: Only use original spare parts! © Chr. Renz 12/18... -
Page 13: Technical Data
Maximum on-site fuse protection 20 A 6mm² with wire end ferrules Connection terminals 10mm² without ferrules Operation and charge monitoring Multicolour LED Colours: White, green, blue Interfaces Release contact External potential-free NO contact RS485 19200 Baud © Chr. Renz 13/18... -
Page 14: Eu Declaration Of Conformity According To Low Voltage Directive
__________________________________________________________________________________ 8. EU Declaration of Conformity according to Low Voltage Directive 2014/35/EU Annex IV Translation of the original declaration of conformity The manufacturer / distributor Chr. Renz GmbH Rechbergstraße 44 D-73540 Heubach hereby declares that the following product Product designation:... -
Page 15: Appendix Service
__________________________________________________________________________________ 9. Appendix Service Illustration LED code sticker Artikelnummer: 989900113 Information, help and questions about the product Up-to-date information on the product is provided on the power2car.de website. © Chr. Renz 15/18... - Page 16 Minimum requirement for a foundation: Dimensions: 20 x 27 x 1230 cm Concrete quality min.: C20/25 1. Mounting holes for the wall housing. 2. Cable gland. 3. Fixing holes for the foundation. 4. Cable entry through the base plate. © Chr. Renz 16/18...
- Page 17 The fastening holes are already present on the square tube. This means that the cable holder can be easily screwed on. 1. Wallbox POWER2CAR STEEL / CITY. 2. Stand for Renz Wallbox. 3. Cable holder for Renz wallbox. © Chr. Renz 17/18...
- Page 18 The cable holder must be installed in such a way that neither the insulation of the cable nor the plug can be damaged during use. 1. Wallbox POWER2CAR STEEL or CITY. 2. Cable holder. 3. Charging cable to the vehicle. 4. Connection cable (house connection). © Chr. Renz 18/18...
