6. The Scan Tool automatically starts a check of the vehicle's
computer to determine which type of communication protocol it is
using. When the Scan Tool identifies the computer's communication
protocol, a communication link is established.
A PROTOCOL is a set of rules and procedures for regulating
data transmission between computers, and between testing
equipment and computers. As of this writing, five different types
of protocols (ISO 9141, Keyword 2000, J1850 PWM, J1850
VPW and CAN) are in use by vehicle manufacturers.
If the Scan Tool fails to link to the vehicle's computer, a
"Communication Error" message shows.
- Ensure your vehicle is OBD2 compliant.
- Verify the connection at the DLC, and verify the ignition is ON.
- Turn the ignition OFF, wait 5 seconds, then back ON to reset
the computer.
- Press the LINK
If the Scan Tool cannot link to the vehicle's computer after three
attempts, the message "Contact Technical Support" displays.
- Press SYSTEM MENU
- Turn
disconnect the Scan Tool.
- Contact Technical Support for
assistance.

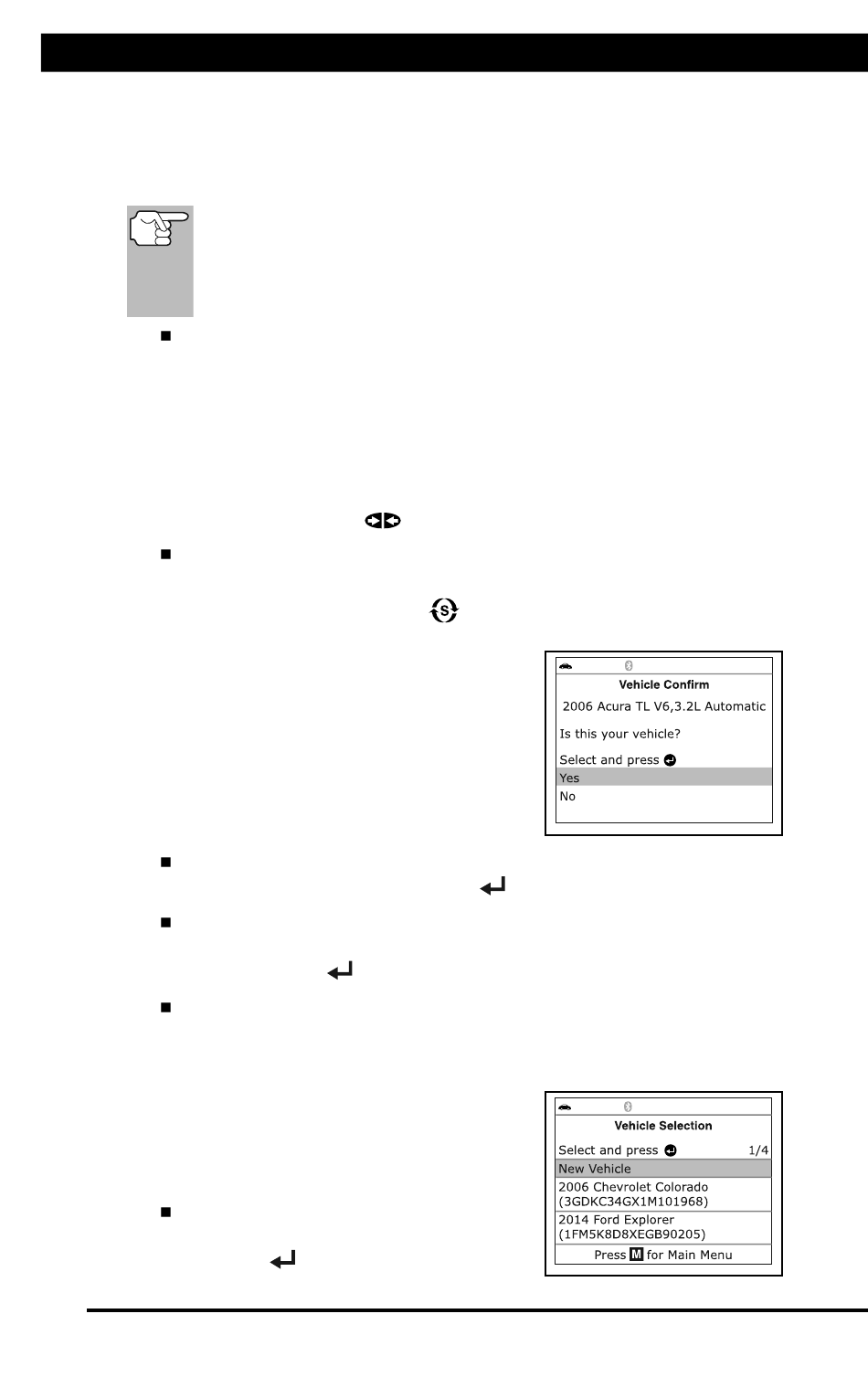

7. If the Scan Tool can decode the Vehicle
Identification Number (VIN) for the
vehicle under test, the Confirm Vehicle
screen displays.
If the information shown is correct for the vehicle under test,
select Yes, then press ENTER
If the information shown is not correct for the vehicle under test,
or if you wish to manually select the vehicle, select No, then
press ENTER
If the Scan Tool cannot decode the Vehicle Identification
Number (VIN) for the vehicle under test, the Select Vehicle
screen displays. Proceed to step 8.
8. When No is selected from the Vehicle
information screen, the Select Vehicle
screen displays. The Select Vehicle
screen lists the three most recently
tested vehicles.
To select a previously tested vehicle,
select the desired vehicle, then press
ENTER
For technical questions, please call 1-888-866-5797
CODE RETRIEVAL PROCEDURE
to continue.
the ignition off,
. Proceed to step 8.
. Proceed to step 10 .
Using the Scan Tool
CODE RETRIEVAL PROCEDURE
to return to the System Menu.
and
. Proceed to step 10 .
