VIEWING DRIVE CYCLE PROCEDURES

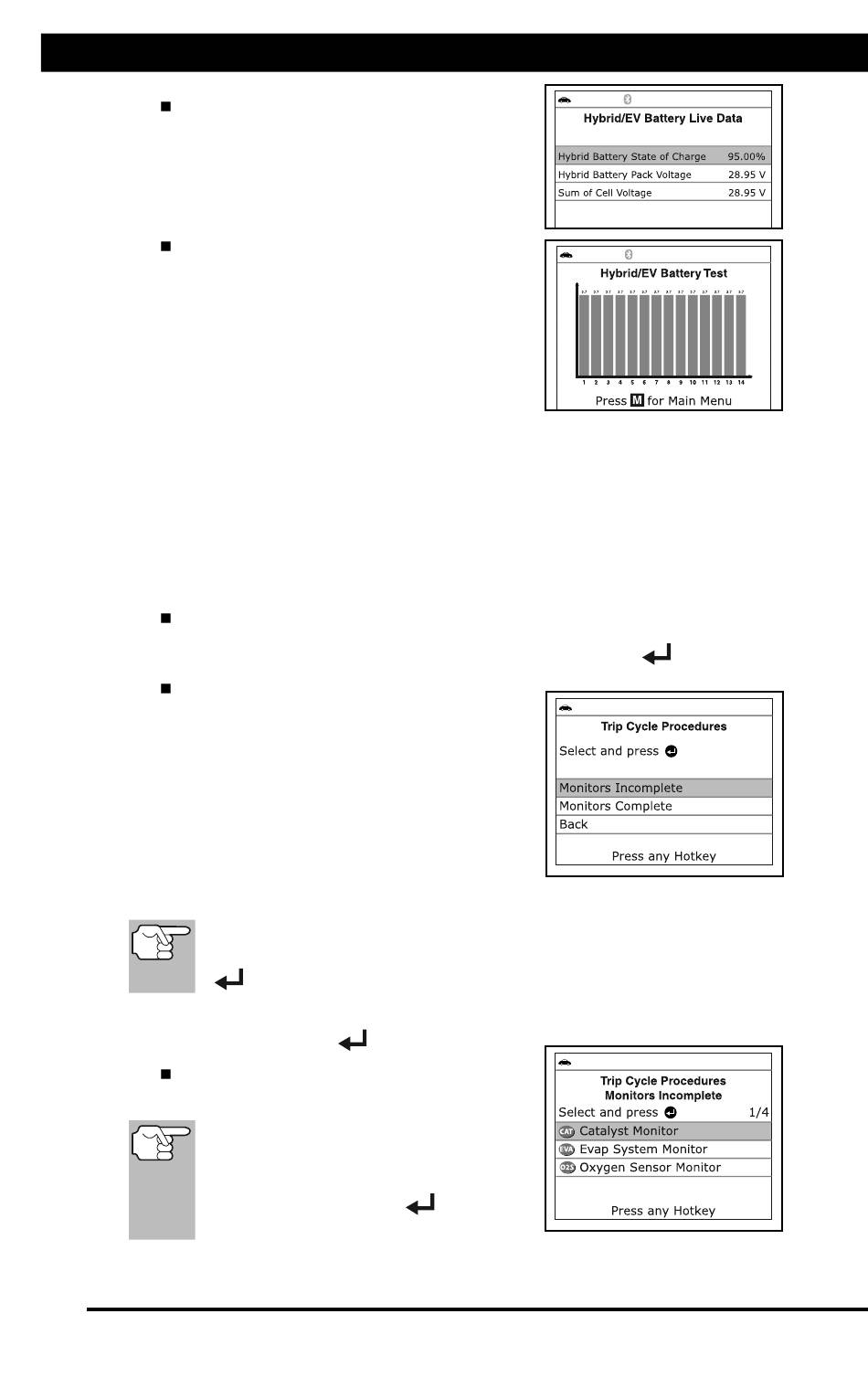

If the vehicle supports battery Live
Data, the Battery Live Data screen
displays. The screen shows the state
of charge, battery pack voltage and
sum of cell voltages for the battery
pack.
If the vehicle supports battery cell
display, a graphic display of the
current state of charge for all cells in
the battery pack displays.
4. When you have finished viewing the
retrieved information, press M to return
to the Main Menu.
VIEWING DRIVE CYCLE PROCEDURES
A Drive Cycle for a Monitor requires that the vehicle is driven in such a
way that all the required "Enabling Criteria" for the Monitor to run and
complete its diagnostic testing are met. You can use the Scan Tool to
view the Drive Cycle procedures for a selected Monitor.
1. While linked to a vehicle, press M.
The Main Menu displays.
2. Select Drive Cy cle Procedures, then press ENTER
A "One moment please..." message
displays
retrieves Monitor status from the
vehicle's computer.
3. When Monitor status has been retrieved,
the Drive Cycle Procedures menu
displays. Depending on Monitor status,
you can view Drive Cycle procedures
for Monitors Incomplete or Monitors
Complete.
If Drive Cycle Procedures are not available for the vehicle, an
advisory message shows. Select Back, then press ENTER
to return to the Main Menu.
4. Select Monitors Incomplete or Monitors Complete, as desired,
then press ENTER
A list of the available Monitors for
the selected status displays.
If no Monitors for the selected
status are detected, an advisory
message shows. Select Back,
then press ENTER
to the Main Menu.
For technical questions, please call 1-888-866-5797
VIEWING TRIP CYCLE PROCEDURES
while the Scan
.
to return
Additional Tests
Tool
.
39
