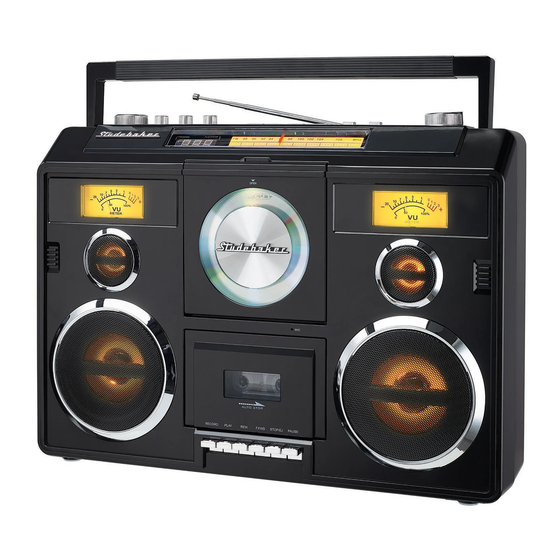

Summary of Contents for Studebaker SB2140
-
Page 2: Important Safety Instructions
WARNING TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Caution Marking is located at the back enclosure of the apparatus. - Page 3 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 19.
-
Page 4: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS FCC ID: 2ASQA6962140 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Protect Your Furniture
-4º to 140ºF (–20º and 60ºC). Do not leave the unit in your car because temperatures in parked cars can exceed this range. Protect your SB2140 from higher temperature conditions and activities that might cause damage to the unit or affect performance •... - Page 6 DEAR STUDEBAKER ® CUSTOMER Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
-
Page 7: Location Of Controls
LOCATION OF CONTROLS 4 5 6 10 11 12 13 14 TAPE BLUETOOTH 21 22 23 24 15 16 17 18 AUTO STOP DC 12V RECORD PLAY F.FWD STOP/EJ PAUSE 1.5A 30 31 33 34 35 36 MASTER VOLUME BLUETOOTH OUT BUTTON TREBLE KNOB CD / USB MODE;... -
Page 8: Power Source
POWER SOURCE This unit can be operated using either AC power or the built-in Li-Polymer rechargeable battery AC POWER OPERATION An AC-DC Adaptor with the output of DC 12V, 1.5A (included) is required for operating the main unit when using AC power mode. To connect the AC-DC Adaptor to the unit and 120V~ 60Hz AC Outlet: Firmly and securely insert the DC plug of the adaptor into the DC Jack on the back of the unit. -
Page 9: Charging Instructions
Notes: 1.) Charging time will vary if you are listening to music while charging the internal battery. We recommend you place the unit in Power off mode during the charging process or until SB2140 batteries are fully charged. 2.) To prolong the life of a rechargeable battery, it is recommended to completely discharge it before fully charging it again. -
Page 10: Repeat Mode
TIPS FOR BEST RADIO RECEPTION AM - The AM antenna is built inside the radio. If AM reception is weak, change the position of the unit until the internal antenna picks up the strongest signal. FM - If a stereo broadcast program is being received, the FM STEREO INDICATOR will light. During FM Stereo reception, always keep the FM TELESCOPIC ANTENNA fully extended for best performance. -
Page 11: Program Operation
PROGRAM OPERATION This function allows the tracks to be played in a programmed sequence. NOTE: Programs can be set in STOP mode. In CD stop mode, press REPEAT/PROGRAM button, the PROG indicator will light and Program Number “P01” will show on LED display. Press the SKIP button to select the desired track. -
Page 12: Bluetooth Operation
To establish a new link, turn on the Bluetooth function of your Bluetooth enabled device and enable the search or scan feature to find “SB2140” in the list of discoverable Bluetoot devices. Select the “SB2140” from your available device list when it appears on its screen and a brief welcome melody will be heard if pairing and connection is successful. - Page 13 NOTE: 1.) If you have several Bluetooth receivers, switch off those receivers that are not in use and place the one to be linked near the unit to avoid SB2140 linked to other unwanted Bluetooth enabled devices. 2.) The effective distance between your external device and this apparatus is within...
-
Page 14: Aux In Operation
Green steadily to indicate a connection has been established. Play music on SB2140 in CD, USB, Tape or AUX mode, unit speaker sound will be off, you can listen to music by using your Bluetooth receiver such as a headphone or speaker wirelessly. -
Page 15: Cassette Operation
CASSETTE OPERATION Press the Cassette STOP/EJECT button to open the Cassette Door and insert a pre-recorded cassette tape with the exposed tape facing downwards. Push the Cassette Door to close it. Slide the FUNCTION SWITCH to “POWER OFF/TAPE” position, press the Cassette PLAY Button to start playback and adjust the Rotary Volume Control to obtain the desired sound level. - Page 16 2 - 3 inches from microphone. When recording from AM radio, you may receive interference. Keep SB2140 at least 3 feet (1 meter) away from mobile phone or WiFi router to avoid any possible interference noise from being recorded.
-
Page 17: Care And Maintenance
R R E E S S E E T T T T I I N N G G T T H H E E U U N N I I T T In case of malfunction due to electrostatic discharge, reset the unit by sliding the FUNCTION switch to POWER OFF position to reset the unit. -
Page 18: Head Cleaning
HEAD CLEANING The tape heads, pinch roller and capstan require periodic cleaning. This removes particles of the metal oxide coating that wear off the tape and accumulate on these parts and impair performance. Switch off the power, press the Stop/Eject button to open the cassette door, and press the Play button. -
Page 19: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Solution Symptom Possible Cause The unit does not The unit is disconnected from Reconnect to the AC outlet. respond (no power) the AC outlet. The AC outlet has no power. Try the unit on another outlet. Unit is ON but there is Volume set too low. -
Page 20: Specification
SPECIFICATION Radio Frequency Range : AM: 530 – 1710 KHz : FM: 88 – 108 MHz Audio Output Power : 2 X 5W (RMS) Tweeter : 2 x 1.5 inch / 6 ohms Woofer : 2 x 4 inch / 6 ohms Bluetooth : V5.0 + EDR : Support USB device up to 32GB... - Page 21 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
