AV Proconnect AVPro Edge AVP-AC-EX40-444-KIT User Manual

Ultra slim 40m (70m hd) 4k60 4:4:4, hdr hdbaset extender audio extraction, edid management, scaling
Hide thumbs

Advertisement

Quick Links

Download this manual
AC-EX40-444-KIT
AC-EX40-444-KIT
Ultra Slim 40m (70m HD) 4K60 4:4:4, HDR
HDBaseT Extender Audio Extraction, EDID
Management, Scaling
A V P r o C o n n e c t
3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4
1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5
s u p p o r t @ a v p r o c o n n e c t . c o m
pg. 1
AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~
support@avproconnect.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVPro Edge AVP-AC-EX40-444-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for AV Proconnect AVPro Edge AVP-AC-EX40-444-KIT

Summary of Contents for AV Proconnect AVPro Edge AVP-AC-EX40-444-KIT

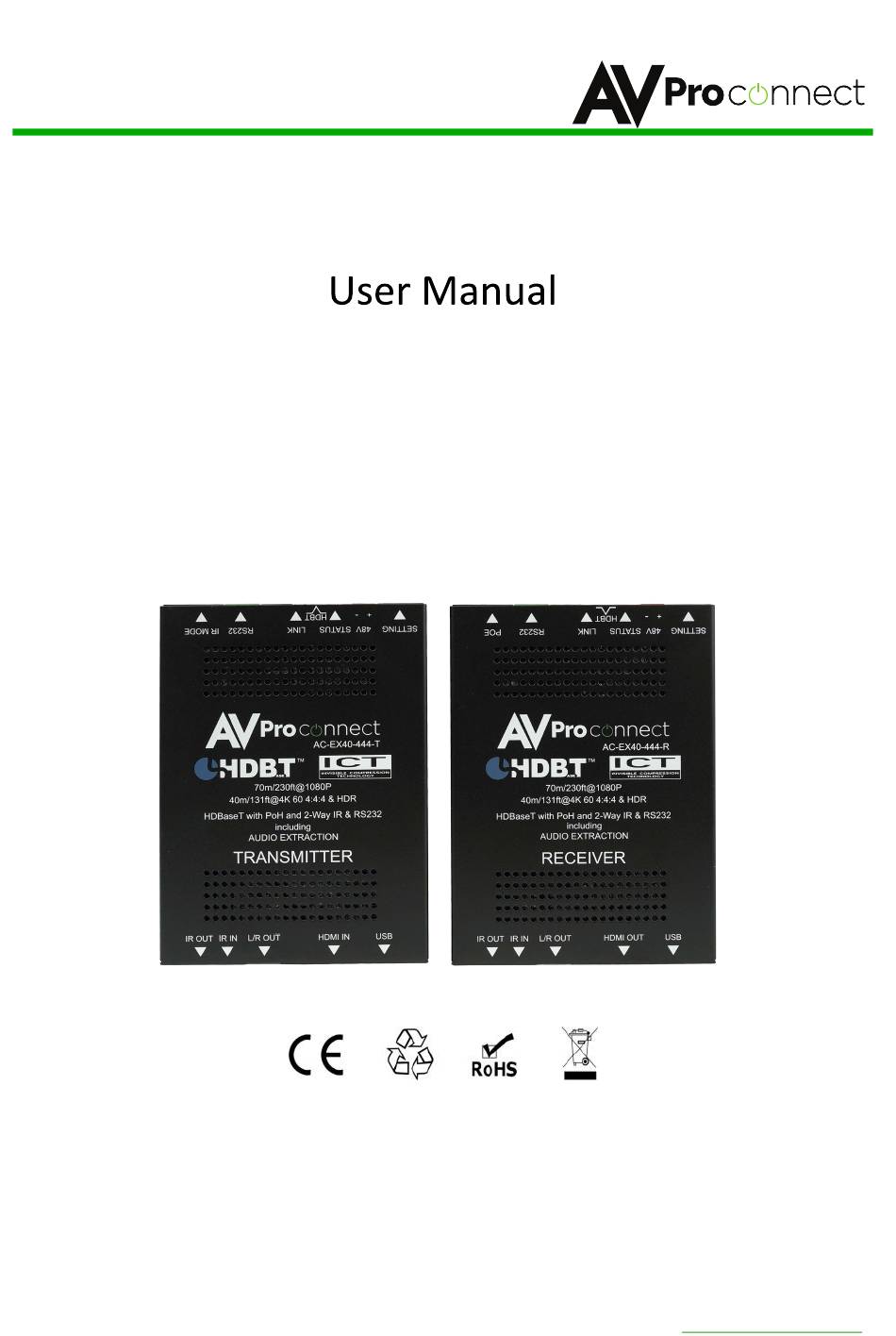

  • Page 1 AC-EX40-444-KIT AC-EX40-444-KIT Ultra Slim 40m (70m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio Extraction, EDID Management, Scaling A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
  • Page 2 AC-EX40-444-KIT AVProConnect presents its first 18Gbps over CAT extender. Using ICT (Invisible Compression Technology) we have achieved what was thought to be impossible. The AC-Ex40-444 delivers a virtually lossless, high bandwidth, 4K HDR signal with support for any signals up to 18Gbps.
  • Page 3 AC-EX40-444-KIT Long Range Extender w/ Ethernet, EDID & Control Product Overview ■ Model Numbers: ■ AC-EX40-444-T ~ HDBaseT Transmitter w/ Audio Extraction, IR, • RS-232, EDID, Bi-Directional PoE and Scaler AC-EX40-444-R ~ HDBaseT Receiver w/ IR, RS-232, Bi-Directional • Features ■...
  • Page 4 AC-EX40-444-KIT  Notice AVProConnect reserves all rights to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.

  • Page 5: What's Included

    AC-EX40-444-KIT What's Included ■ Whats in the box? • AC-EX40-444-T (Transmitter) AC-EX40-444-R (Receiver) • • 48V Power Supply (One supplied) 1x IR Tx Unit • 1x IR Rx Unit • • 4x 3 Pin Terminal blocks for Audio and RS232 Ports Mounting Ears •...
  • Page 6 AC-EX40-444-KIT Specifications ■ pg. 6 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
  • Page 7 AC-EX40-444-KIT The Transmitter ■ Back IR Mode RS232 HDBaseT Micro USB L/R Out (PCM Only) HDMI In Front (Firmware) IR Out IR In Indicator Troubleshooting Lights on the Transmitter: POWER - On the back by power supply input: (Red) This is an indicator that the power is connected. There are only two states for light: •...
  • Page 8 AC-EX40-444-KIT Indicator Troubleshooting Lights on the Transmitter cont.: LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Tx and Rx is in tact. This light should ALWAYS be solid. If this light is flashing or not present attempt following: 1.
  • Page 9 AC-EX40-444-KIT Functions & Setup of the Transmitter: IR Mode Slide Switch: (On Back) This is used to select a preferred IR Mode: IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye. I-PASS - The IR Input will be configured to safely operate with a direct connection from a control system using a mono or stereo 3.5mm cable.
  • Page 10 AC-EX40-444-KIT Functions & Setup of the Transmitter Cont.: Test Pattern Generator: Press and hold the setting button (for 4 seconds) while powering up the transmitter. You should see the color bar pattern to the right on screen. When in this mode, you can quick press to toggle the resolution. Quick press the setting button---Select the test pattern timing •...
  • Page 11 AC-EX40-444-KIT The Receiver ■ PoE Setting Back RS232 HDBaseT Micro USB L/R Out (PCM Only) HDMI Out Front (Firmware) IR Out IR In Indicator Troubleshooting Lights on the Receiver: POWER - On the back by the power supply input: (Red) This indicator shows that the power is connected.
  • Page 12 AC-EX40-444-KIT Indicator Troubleshooting Lights on the Receiver cont.: LINK - Above RJ45 (HDBT) Port: (Green) This indicator shows that the AV HDBT link between the Transmitter and Receiver is in tact. This light will ALWAYS be solid. If this light is flashing or not present do the following: 1.
  • Page 13 AC-EX40-444-KIT Functions & Setup of the Receiver: PoE Mode Slide Switch: (On the back) This is used to select how you want to PoE is to be directed. There are two options (you are choosing where the power is ORIGINATING from): •...
  • Page 14 AC-EX40-444-KIT RS-232 Configuration ■ RS2-32 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
  • Page 15 AC-EX40-444-KIT RS-232 Cable Prep ■ RS-232 Sample Application ■ pg. 15 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
  • Page 16 AC-EX40-444-KIT IR Configuration ■ IR can be used in three ways: 1. From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "IR IN" port on the AC-EX40-444 Transmitter to pass IR signals directly to the remote end. NOTE - Be sure the IR MODE Slide Switch is set to "I-PASS"...
  • Page 17 AC-EX40-444-KIT IR Connections to AC-EX40-444-T (Transmitter) ■ IR Connections to AC-EX40-444-R (Receivers) ■ pg. 17 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
  • Page 18 AC-EX40-444-KIT Audio Extraction on AC-EX40-444 ■ A feature that is always active on the AC-EX40-444 (Tx and Rx) is Audio Extraction. This feature extracts PCM Audio (2ch) from the source device in order to be run to a separate amplifier or AVR. BOTH of the audio ports are always active (on Tx &...
  • Page 19 AC-EX40-444-KIT Stereo Cable Preparation ■ NOTE: Pre-made audio cables can be purchased from www.avprostore.com. The part number is: AC-CABLE-3PIN-2CH. pg. 19 AVProConnect ~ 3518 N Casco Ave. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproconnect.com...
  • Page 20 AC-EX40-444-KIT Maintenance ■ Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Damage Requiring Service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged; ...
  • Page 21 AC-EX40-444-KIT ● Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred during shipment, failures which are caused by products not supplied by the warrantor, failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of...
  • Page 22 AC-EX40-444-KIT Thank you for choosing AVProConnect! Please contact us with any questions. We are happy to be of service! A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
