Product Introduction
Thank you for using the IP LPR Camera, which plate machine low light Sony CMOS,
newest ISP, high speed MCU, The day and night can clearly capture the front and rear of the
vehicle speed 150KM / h below grade. Built-in 1.8-inch LCD screen, Support both English
and Chinese, Support SD card, maximum 64G , Support external trigger grab, Support
remote monitoring, Mobile APP: CAMHI, Machine built ONVIF / GB28181 protocol,
compatible with Hikvision, Dahua, Jufeng, in peacekeeping and other mainstream NVR
1.
Technical specification
Model
Image Sensor
Max. White LEDs Length
video resolution
Focal Length
SD Card
Special function control board
Power Supply
Power Consumption
Working Environment
Ingress Protection
Dimensions
Weight
statement:
1.The contents of the manual may be described with a certain product that you are now using
subtle differences , a problem cannot be solved if you use this manual, please contact our
technical support department or product vendor.
2.This manual will be updated from time to time, the company has the right without prior
notice
.

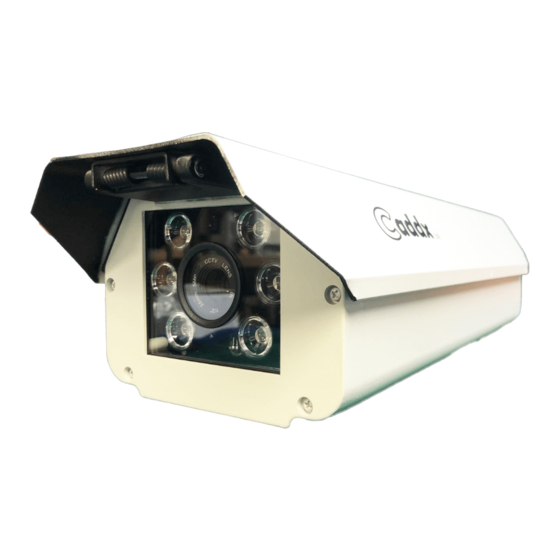

Use Manual For IP LPR Camera
CA-CAR25IP/ 4
1/2.8" 2Megapixel progressive scan Sony Sensor
6pcs white LEDS array/30m
first stream: 1080P(1920*1080) and 720P(1280*720) optional
25mm
maximum 64G
Function control panel（With LCD ）
Mode/Speed/HSBLC/ LED light/ WDR / HLC four files/CDS Start/ language
can be adjusted
DC12V/2a
<11.5W (with IR on, motorized lens working)
-30°C~+60°C, Less than 95% RH
IP66
370mm × 145mm× 115mm
2.5kg
Advertisement
Related Manuals for CADDX CA-CAR25IP/4
Summary of Contents for CADDX CA-CAR25IP/4
- Page 1 Use Manual For IP LPR Camera Product Introduction Thank you for using the IP LPR Camera, which plate machine low light Sony CMOS, newest ISP, high speed MCU, The day and night can clearly capture the front and rear of the vehicle speed 150KM / h below grade.
-
Page 2: Internal Structure
2: Internal structure 3.Installation guide 3.1:Installation of parking lots and roads, please refer to the following illustration 3.2:The camera should be installed as the front body is tilted downwards, and the rear part is upward, so as to effectively avoid zhe car's lights to reach the CDS which is at the end of the camera, Otherwise, once the CDS effected by improper lights, it will lead zhe camera's LEDs switch on and off continuously... -
Page 3: Adjustment Guide
4 Adjustment guide 4.1 Turn the camera tail buckle counterclockwise and open the camera cover. Before you operate, read the camera's internal instructions panel carefully. speed setting effect diagrams is as follows, please refer to Low speed setting Right speed setting 4.3environment Brightness setting effect chart as follows, please refer to Too high ambient brightness settings Right ambient brightness settings... - Page 4 4.4:lights results refer to the brightness setting. Is shown below Light brightness is too bright Right Light brightness 4.5brightness setting renderings below, please refer to WDR effect mode is set to a low Wide dynamic setting to Medium mode effect Strong light suppression setting effect chart is as follows, please refer to Strong light suppression is not turned Right strong light suppression...
