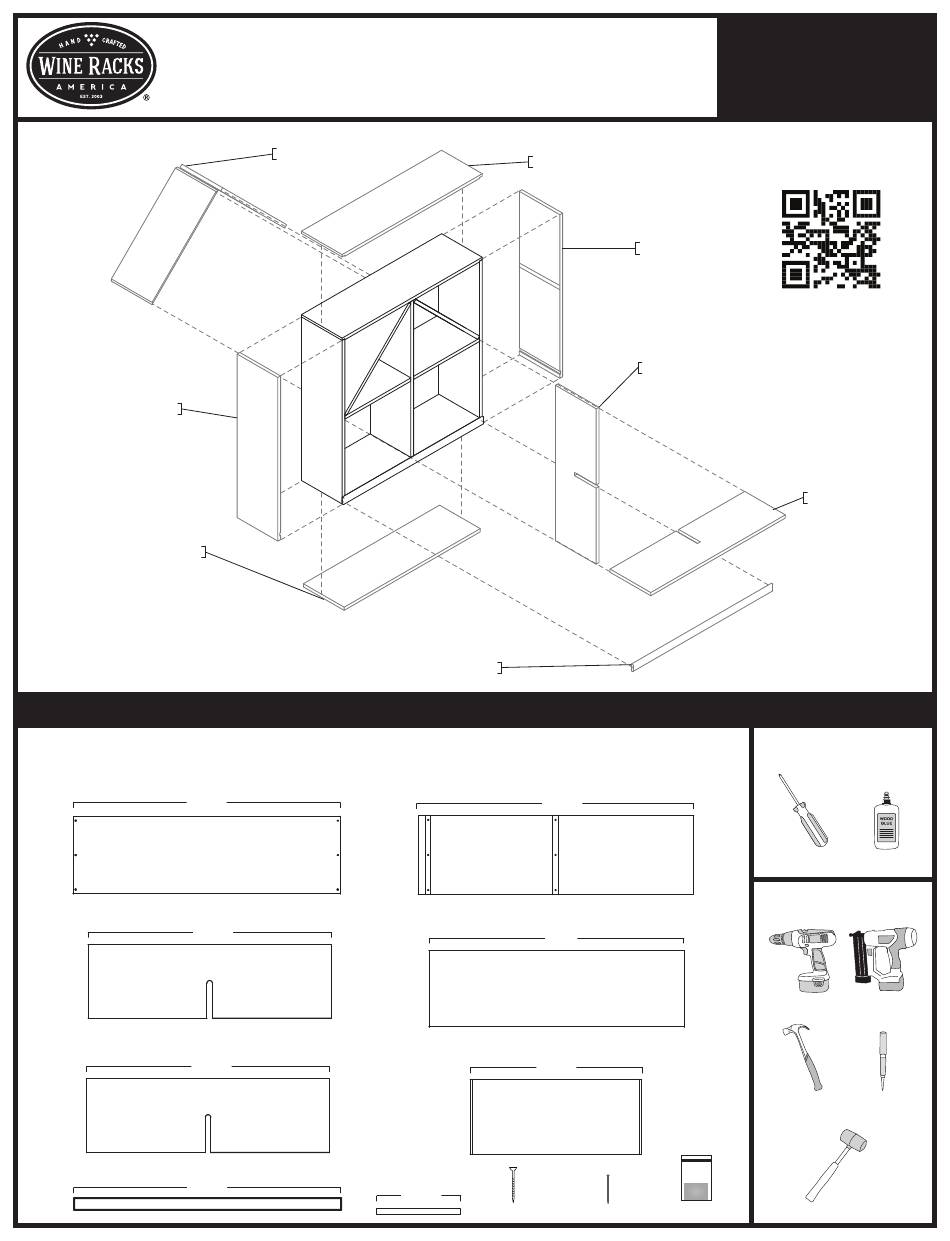

Solid Diamond Bin
Assembly GUIDE
Shelf Divider
Side Panel
Bottom Panel
*Please verify that you have the correct number of parts before proceeding.
Depending on the model you purchased, your bundle should contain the following:
TOP PANEL (x1)
34 7/8"
HORIZONTAL SHELF PANEL (x1)
33 7/8"
VERTICAL SHELF PANEL (x1)
33 1/2"
BOTTOM TRIM PIECE (x1)
34 7/8"
Trim Piece
Package Contents
SHELF DIVIDER (DEPENDS ON MODEL)
SHIM (x1)
10"
WOOD SCREWS
Top Panel
Side Panel
Vertical Shelf Panel
SIDE PANEL (x2)
35 5/16"
BOTTOM PANEL (x1)
33 7/8"
23 1/8"
FINISH NAILS
WOOD PUTTY
Questions?
888.373.6057
or visit
wineracksamerica.com
Page 1
SCAN FOR
ASSEMBLY VIDEO
Horizontal
Shelf Panel
tools for assembly
Required
Screwdriver
Suggested
Finish Nailer
Cordless Drill
Nail Setter
Hammer
Rubber Mallet
Wood Glue
Advertisement
Related Manuals for Wine racks America Solid Diamond Bin
Summary of Contents for Wine racks America Solid Diamond Bin
- Page 1 Solid Diamond Bin Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 1 SCAN FOR Shelf Divider Top Panel ASSEMBLY VIDEO Side Panel Vertical Shelf Panel Side Panel Horizontal Shelf Panel Bottom Panel Trim Piece Package Contents tools for assembly *Please verify that you have the correct number of parts before proceeding.
- Page 2 Solid Diamond Bin Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 2 1. Find an open, flat area in which to work. Carefully remove all components from the box and remove banding or protective wrapping. Check the parts list to verify you have received a complete package.
- Page 3 Solid Diamond Bin Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 3 4. Insert horizontal shelf panel into the grooves on the two side panels. Make sure the notch on the shelf panel is facing downward. Attach using provided wood screws. (figure 3) * The horizontal shelf panel is similar to the vertical shelf panel.
- Page 4 Solid Diamond Bin Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 4 6. Insert the shelf dividers into the frame to match your configuration (figure 5). If your rack did not include any shelf dividers, please proceed to the next step.
- Page 5 Solid Diamond Bin Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 5 8. To prevent the bottom of the rack from bowing under the weight of your bottles, slide the bottom frame shim under the back of the rack. (figure 7)
