High Reveal Rack
Questions?
888.373.6057
Assembly GUIDE
or visit
wineracksamerica.com
Page 1

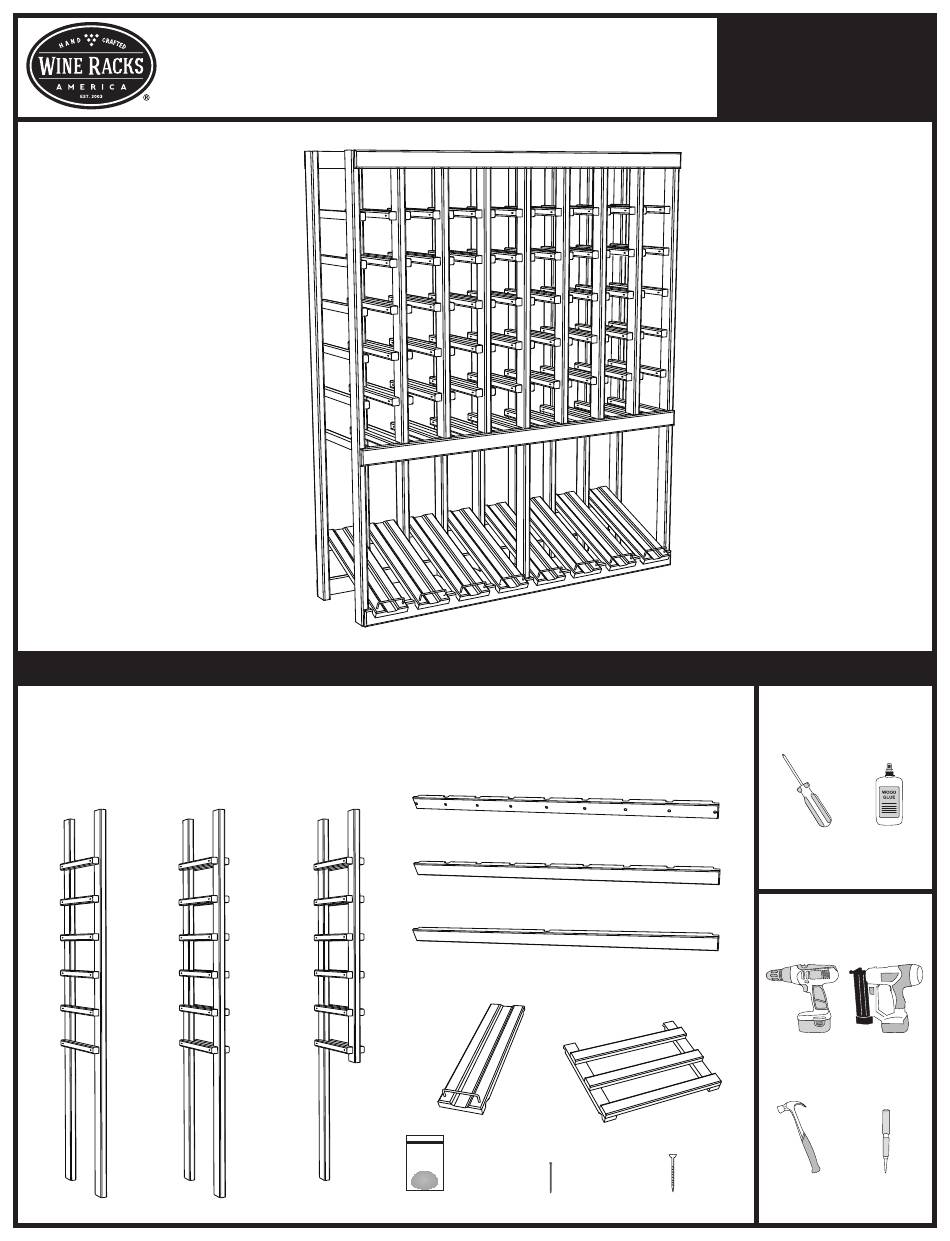

Package Contents
tools for assembly
Package Contents
tools for assembly
* All models follow the same assembly procedure varying only in the number of middle ladders your rack will require.
Required
*Please verify that you have the correct number of parts before proceeding.
Depending on the model you purchased, your bundle should contain the following:
END LADDER
CENTER LADDER
MIDDLE LADDER
STANDARD CONNECTOR (X3)
(X2)
(X1)
(X6)
Wood Glue
Screwdriver
SCREWLESS CONNECTOR (X2)
Suggested
REVEAL CONNECTOR (X1)
SIDE DISPLAY PIECE
DISPLAY TRAYS
(OPTIONAL X2)
Cordless Drill
Finish Nailer
+
Nail Setter
Hammer
WOOD SCREWS
WOOD PUTTY
FINISH NAILS
Advertisement
Related Manuals for Wine racks America High Reveal Rack
Summary of Contents for Wine racks America High Reveal Rack
- Page 1 High Reveal Rack Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 1 Package Contents tools for assembly Package Contents tools for assembly * All models follow the same assembly procedure varying only in the number of middle ladders your rack will require.
- Page 2 High Reveal Rack Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 2 1. Find an open, flat area in which to work. Carefully remove all components from the box and remove banding with a utility knife. Check the parts list to verify package contents.
- Page 3 High Reveal Rack Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 3 4. Secure the remaining standard connector so that the top of the connector is 6" from the bottom of the rack. (figure 3) ATTACH REMAINING STANDARD CONNECTOR Bottom of rack 6"...
- Page 4 High Reveal Rack Questions? 888.373.6057 Assembly GUIDE or visit wineracksamerica.com Page 4 SECURE SCREWLESS CONNECTOR TO TOP SECURE SCREWLESS CONNECTOR TO MIDDLE SECURE REVEAL CONNECTOR TO BOTTOM 6. Stand your rack upright. Secure the display trays to the rack by adding a bead of wood glue to each of the two grooves on the back of the tray.
- Page 5 (figure 9) 9. The assembly of your high reveal rack is now complete and you are ready to place the rack above any base rack of your choice.
