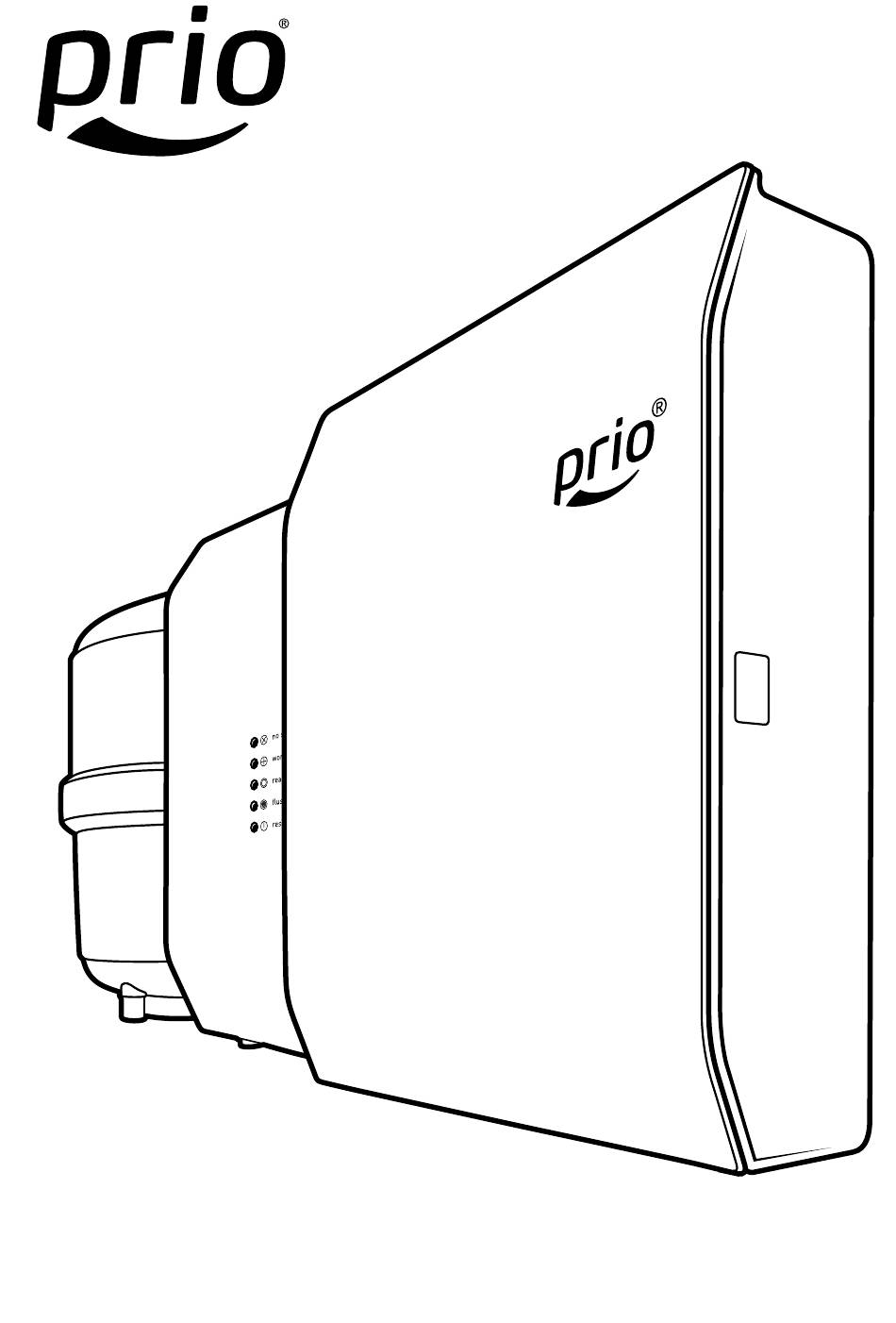

- Page 1 Prio Expert ® MO600 Reverse Osmosis Filtration System with Pump Box (Storage Tank, Pump Box Unit with Auto-Flush, Main Filtration Unit Set) User’s Guide...
- Page 2 Before operating this appliance, please read the instructions carefully. You may want to save this guide for your future reference. Failure to follow the instructions or meet the operating requirements may lead to the product’s failure, malfunction, property damage or personal injury. Safety Warning Plug the pump unit into an electrical outlet only after you finish the installation.
- Page 3 Description Congratulations on your purchase of the Prio® Expert R.O. filtration system! With proper installation and maintenance, it will provide you with high quality drinking water for many years. This R.O. system removes odor and most harmful substances such as heavy metal ions and total dissolved solids from tap water making it tasty, fresh and vital.
- Page 4 How It Works: The MO600 reverse osmosis system is a multi-stage automatic filtration machine. The system consists of the two main units – the pump box and the R.O. unit – which are connected with three tubes. This inter-unit connection distance is up to 50 ft. Water supply is done through the inlet valve, filtered water is first stored in the water tank and then delivered through the faucet, and waste water is drained through the drain saddle.
- Page 5 LED Indicators (on the Pump Box Unit): No Source: there is no water in the inlet line or it’s pressure is ■ ■ less than 7.25 psi (0.05 MPa). Make sure the inlet tube is con- nected and not kinked, and the water inlet valve is open. Working: the pump is working and connected R.O.
- Page 6 R.O. Membrane: The third and main stage of the filtration is R.O. membrane. It is “semi-permeable”, which means that it allows water to pass through but prevents dissolved particles from passing through. It splits the feed water into two streams: clean water goes to the post-filter and then onto the tank and faucet.
-
Page 7: Installation
Tank full refill time, typical: 35-45 min ■ ■ Idling protection: 120 minutes (the pump box unit shuts down the pump and goes into ‘reset ■ ■ required’ mode if working mode continuous duration reaches 2 hours without interruption) Weight and Size: Pump box unit: Size (WDH), body only, excluding protrusions: 8.74 x 4.80 x 12.44”... - Page 9 IMPORTANT: Cut Tubing At 90° to Ensure a Watertight Seal: No skewed cut! No skewed cut! To Connect the Tubing to a Fitting: 1. Remove the lock if present (not present in self-locking fittings). 2. Push. Insert the tube firmly until full stop. 3.
- Page 10 The maximum length of hose connections between the pump box unit and R.O. filtration unit is 50 ft. You may place both units under your kitchen sink, or you may place the R.O. filtration unit with the water storage tank under the sink in your kitchen near the faucet, and the pump box unit in your bathroom near the electrical outlet, cold water supply and drain pipes.
- Page 11 1/2” 3/8” 1/2” 3/8” 1/2” 3/8” Drill a ¼” hole in the drain pipe above the trap and on the ver- mount drain 1/2” tical or horizontal tail piece. Lo- 3/8” 1/2” saddle here never cate the drain connection away mount from the garbage disposal to here...
- Page 12 never mount saddle here never here mount here never mount Initial Washing: here After installation it is recommended to perform the initial washing of the system. For this: shut off the tank open cold water open the filtered plug the pump ■...
- Page 13 Regular Use To get clean water just open the filtered water faucet. The filtered water stored in the tank will be delivered. The pump will turn on automatically and will refill the tank gradually even after you shut off the faucet. The system will shut off automatically when the tank will become full again.
- Page 14 3 min repeat 3 min 5-10 times 3 min To prevent leakage or cracks and ensure the safety of operation and top performance do not disassemble the filters or try to regenerate them. repeat 3 min 5-10 To change filter(s) or membrane: times repeat 3 min...
- Page 15 Note: For a pre- or post-filter you only need to connect its inlet and outlet. For the membrane you have to connect the third outlet – to the waste water line. This outlet is located off the center of the membrane housing. Elbow check valve fitting (with the arrow) has to be con- nected to the central (permeate) outlet of the membrane housing.
- Page 16 Check to see if there is still water in the ■ ■ and your system needs a new tank. storage tank. If the tank feels heavy, Prio, Prio logo are the trademarks of DWT Deutsche Wassertechnologien GmbH, Germany. As used herein, ® denotes registered trademark status in Germany only.
