ADDITIONAL INFORMATION 12.A GUARANTEE 12.B ADDRESS OF TECHNICAL ASSISTANCE ( BY DISTRIBUTOR GUIDE-DIAGRAM FOR MAINTENANCE OPERATIONS FLOWFAST H FRONT and SIDE DIAGRAMS 14.A FRONT DIAGRAM 14.B SIDE DIAGRAM CABINET MOUNTING ASSEMBLY of SUPPORT TABLE ASSEMBLY OF THE CABINET ON THE TABLE (optional) SIDE DIAGRAM WITH U.V.
Assembly of equipment Floriculture Furthermore FlowFAST H cabinets fulfil the armonized standards EN 61010-1 as well as EN 61326 according to the applicable European directives regarding the CE marking. cabinets comply with the above-mentioned standards ONLY if the instruments connected to FlowFAST H the electrical socket positioned inside the work chamber are "CE"...
2 INSTALLATION 2.A INSTRUCTIONS AND CHECKS ON DELIVERY Considering the critical nature of the use of the FLOWFAST H cabinet and the need to keep it in optimum condition, installation is very important. FLOWFAST H cabinets are positioned on a pallet, wrapped in an extensible film and contained in a package of multi-layer strapped cardboard.
2.C ELECTRIC/GAS CONNECTIONS The electrical connection of FLOWFAST H cabinet is made by connecting the power cable located on the upper of the right side of the cabinet to a 230V, 50 Hz outlet (if not distinct voltages/frequencies are shown on the label stuck...
Page 6
D:GROUP company Techincal Features Table FlowFAST H 15 Description Unit FlowFAST H 09 FlowFAST H 12 FlowFAST H 18 Overall Dimensions (L x H x P) 945x1195x925 1250x1195x925 1555x1195x925 1860x1195x925 Usefull dimensions (L x H x P) 885x734x600 1190x734x600...

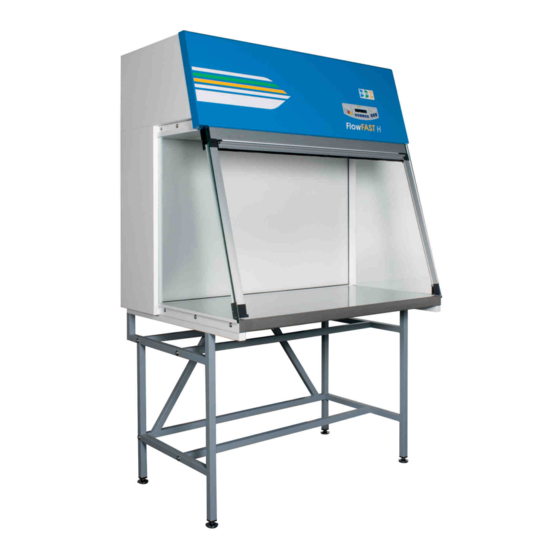

3 OPERATION PRINCIPLES The system described herein - FLOWFAST H horizontal laminar airflow cabinet - works as follows. The air is sucked in by the motor-fan placed in the upper part of the cabinet through a pre-filter, which eliminates the dust in order to protect the motor-fan and preserve the HEPA filter from premature clogging.
4.B CONTROL and REGULATION SYSTEMS The FLOWFAST H cabinet is provided with a manual electronic regulation system, or, if installed, with an automatic regulation system, to keep the airflow velocity (0.45 m/sec) constant. This system counters the effects of the gradual clogging of the HEPA filter up to pressure levels of nearly 350 Pa.
a D:GROUP company 4.C SYMBOLS of CONTROL BOARD List and description of all the symbols and controls of the control board : MAIN SWITCH: Position "0" in the "0" position, the green light of the mains voltage is on [12]; the LCD displays the model name.In this position the operator can activate only the fluorescent light [7], the U.V.
Page 10
a D:GROUP company STAND BY (speed reduction) By pushing the corresponding red key the password (the same to start the ventilation) is requested. Once confirmed the password the function is enabled. When it is enabled, the corresponding red LED lights up and, for single fan cabinets, the air speed is about 30% lower than their nominal speeds.
Page 11
a D:GROUP company 5-6 LEFT/RIGHT ARROWS Use the arrow keys to scroll the menu: if pressed the following data will appear on the display: U.V. Lamp Residual Lifetime: Shows the operating time of the U.V.lamp pre-set by the user with the appropriate keys. The LCD will display (for example) "U.V. TIME=XXXX h"...
Page 12
a D:GROUP company 11 SET SET key lets you enter the different functions or confirm the data input going back to the upper level. 12 LINE The green mains light switches on if the unit is connected to the mains and the line is live 13 DISPLAY (optional) Rearlight liquid crystal "LCD"...
a D:GROUP company 4.D OPERATOR MENU (OPTIONAL) It’s possible enter the operator menu, with the cabinet in stand-by mode and when the cabinet is switched on, by pressing at the same time the keys “ESC” (7) and “ARROW UP” (6). If enter the operator menu while the cabinet is running, it’s possible to set only the “ALARM CLOCK”...
Page 14
a D:GROUP company U.V. LAMP RESIDUAL LIFETIME: • use "UP/DOWN arrow" keys [5/6] to choice the desired menu • select “U.V. LAMP RESIDUAL LIFETIME.” and press "SET" [10] key; the display will show: U.V. LAMP RESIDUAL LIFETIME set XXXX • where XXXX shows the number of the hours set for lifetime of the U.V.
Page 15
a D:GROUP company SET UP THE CLOCK • use "UP/DOWN arrow" keys [5/6] to choice the desired menu • select “SET UP THE CLOCK.” and press "SET" [8] key; the display will show: SET UP THE CLOCK set XXXX • Use the “left and right arrow” keys to select the desired parameter and set it using the “up and down arrow” keys •...
Page 16
a D:GROUP company ALAEM CLOCK • use "UP/DOWN arrow" keys [5/6] to choice the desired menu • select “ALARM CLOCK” and press "SET" [8] key; the display will show: Alarm clock set up Set up XXXX • Use the “left and right arrow” keys to select the desired parameter and set it using the “up and down arrow” keys •...
Page 17
a D:GROUP company UV TIMER • use "UP/DOWN arrow" keys [5/6] to choice the desired menu • select “UV TIMER” and press "SET" [8] key; the display will show: UV TIMER Duration XXXX • Use the “left and right arrow” keys to select the desired parameter and set it using the “up and down arrow” keys •...
a D:GROUP company 4.E DISPOSAL OF WASTES AND CONTAMINATED MATERIALS DISPOSAL OF ELECTRIC AND ELECTRONIC DEVICES NFORMATION FOR UROPEAN NION USER This symbol on the device means that when it needs to be disposed, it must be handled separately from urban waste. At the moment of the disposal, contact the dealer, to receive information about the collect and disposal in accordance with the laws in force in the country.
PRECAUTIONS FOR THE CORRECT USE OF THE CABINET. Listed below are the most important guidelines to be followed and the main substances to be avoided to ensure the correct use of the FLOWFAST H cabinet: NEVER handle pathogenic materials of any group or biosafety level.
CABINETS (by users) To clean the outside of the FLOWFAST H cabinet, made of varnished iron-carbon sheet steel, use a damp cloth soaked in soapy water or some other commonly available products for varnished metal surfaces. To clean the outside of special FLOWFAST H cabinets made of stainless steel AISI 304/316, use a damp cloth soaked in alcohol or soapy water or some other commonly available product for stainless steel sheets.
a D:GROUP company 7.C REPLACEMENT OF HEPA FILTER (by technical assistance personnel) IMPORTANT: For the safety of the personnel and the environment, the use of PVC gloves is recommended as well as the collection of the replaced HEPA filters in polyethylene bags.
a D:GROUP company 7.E REPLACEMENT OF FLUORESCENT LAMPS (by user). [See chapter 13 – diagram for maintenance operations]. Switch the cabinet off and disconnect it from the power supply. Remove the prefilter/s [10]. Unscrew the nuts [16] and remove the lampholder [15]. Replace the lamp [17] and the starter.
D:GROUP company 7.G LIST OF SPARE PARTS FLOWFAST H CODE DESCRIPTION V50000000100 DDM 7/9 motorfan, 300 W – IP55 V50000100450 HEPA filter 915x762x69 mm (36"x30"x2,5") V50000100460 HEPA filter 1220x762x69 mm (48"x30"x2,5") V50000100470 HEPA filter 1524x762x69 mm (60"x30"x2,5") V50000100480 HEPA filter 1830x762x69 mm (72"x30"x2,5") P75007507500 Pre-filter - 855x385x22 mm.
a D:GROUP company 8 TROUBLESHOOTING PROBABLE CAUSES OF MALFUNCTIONS PROBLEM CAUSE REMEDY Cabinet does not work – the electricity supply has – check the voltage input to the been cut off at the mains cabinet – Electronic board out of order –...
a D:GROUP company 9 TECHNICAL SPECIFICATIONS Housing carbon steel varnished with epoxy powder electro- spraying. of AISI 304 glazed stainless steel sheet (on request). Working surface AISI 304 glazed stainless steel sheet or plastic laminate (on request) Pre-filter Polyurethane filter washable in water or cleanable with compressed air. 75 % Minimum efficiency, dust weight arrestance (ASHRAE);...
Position the upper and lower glass fastener frame [6] and screw the fitting screws hand tight [5] Place the side panels [4] and fasten the screws.- If the FLOWFAST H cabinet is to be moved or transported into another room please disassemble it reversing the above instructions...
Cardboard base to be laid on the pallet of the following dimensions: FLOWFAST H 09: 79,5 x 108 x 1 cm (thick) FLOWFAST H 12 : 138,5 x 83,5 x 1 cm (thick) FLOWFAST H 15 : 79,5 x 199,5 x 1 cm (thick) FLOWFAST H 18: 79,5 x 199,5 x 1 cm (thick) 00020EN Rev.09 –...
Page 29
FLOWFAST H 09: 109,5 x 82,5 x 149 cm (1 cm. thick) FLOWFAST H 12 : 140 x 85 x 145,5 cm (1 cm. thick) FLOWFAST H 15 : 202,5 x 82 x 147 cm (1 cm. thick) FLOWFAST H 18: 202,5 x 82 x 147 cm (1 cm.
In addition to those cases specifically indicated in Chapter 5 relating to improper use of the cabinet, the guarantee offered by Faster S.r.l. also excludes certain improper uses described in the instruction manual, of which the most important are listed again below : installation in a place which does not conform to the manufacturer’s recommendations...
D:GROUP company 14 FLOWFAST H FRONT and SIDE DIAGRAMS 14.A FRONT DIAGRAM FlowFAST H 09 FlowFAST H 12 1190 1250 FlowFAST H 15 1495 1555 FlowFAST H 18 1800 1860 00020EN Rev.09 – 12/2012...
a D:GROUP company 19 SENSORS LIST PLUG Software name Description J4-CPULAF Air flow sensor J3- CPULAF J2- CPULAF J3-PWLAF Magnetic sensor for U.V. J2- PWLAF Proximity switch for U.V. 00020EN Rev.09 – 12/2012...
D:GROUP company 21 DECLARATION OF CONFORMITY The undersigned legal representative of the company Faster S.r.l. hereby declares that the follow products: FlowFAST H are in compliance with the following directives: 2006/42/EC Directive of the European Parliament and of the Council on machinery...
