Vita-Mix Mix'n Machine Use And Care Manual

Frozen treat mixer
Hide thumbs Also See for Mix'n Machine:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Vita-Mix
Corporation
®
Use and Care Manual
Read and Save These Instructions
MIX'N MACHINE
TM
Frozen Treat Mixer
MIX'N MACHINE
TM
ADVANCE
MIX'N MACHINE
TM
All Models
F O O D S E R V I C E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mix'n Machine and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vita-Mix Mix'n Machine

Summary of Contents for Vita-Mix Mix'n Machine

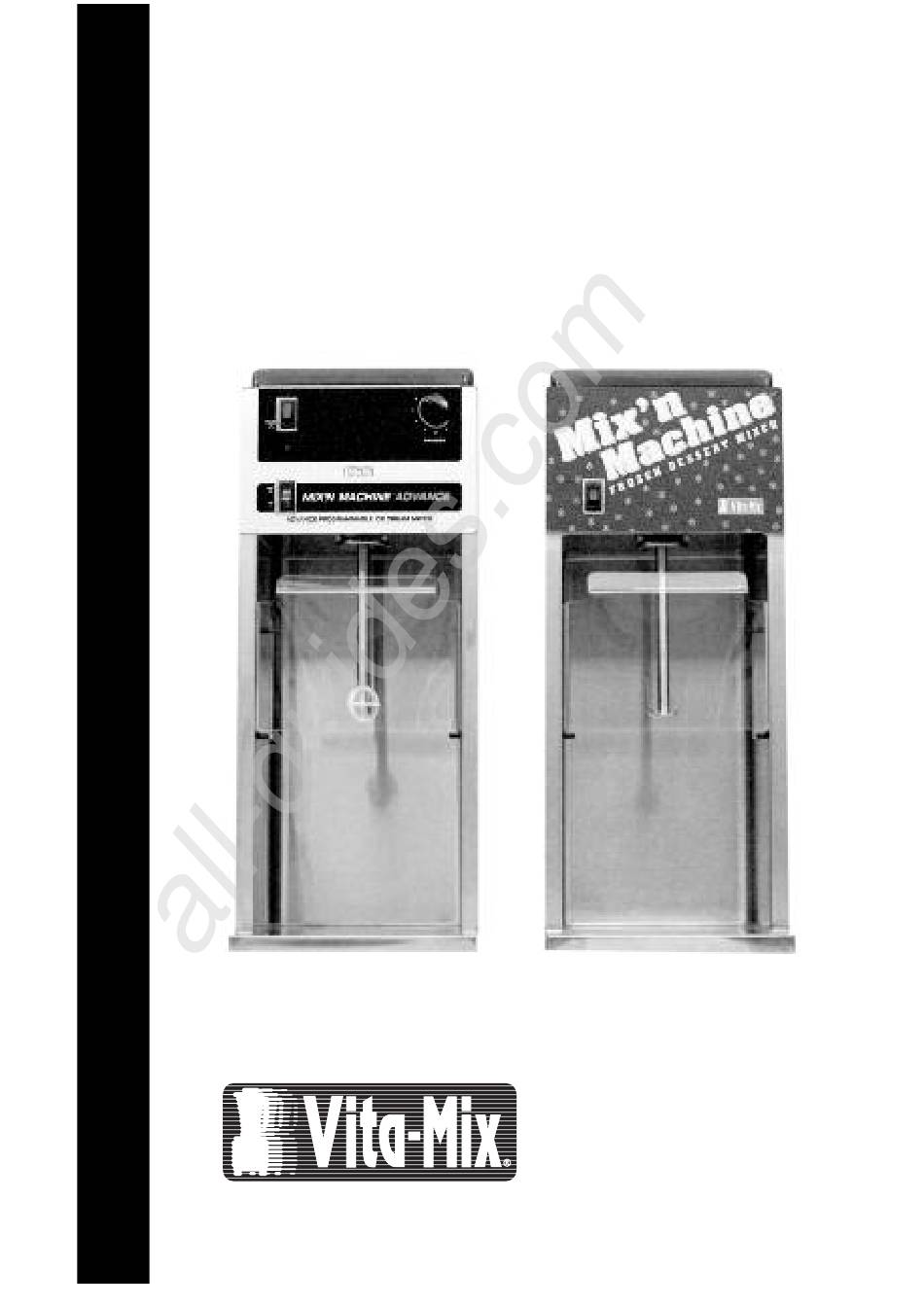

  • Page 1 All manuals and user guides at all-guides.com Vita-Mix Corporation ® Use and Care Manual Read and Save These Instructions MIX’N MACHINE Frozen Treat Mixer MIX‘N MACHINE ADVANCE MIX‘N MACHINE All Models F O O D S E R V I C E...
  • Page 2 4. Make sure the machine is sitting or mounted solidly on a sturdy surface or wall before using. 5. Unplug the power cord from the wall outlet when the Vita-Mix machine is not in ®...

  • Page 3: Important Notes

    Shut OFF power switch at night or whenever machine will be left unattended. Enjoy the safety of this grounded machine. The Vita-Mix machine’s U.S. power cord comes equipped with a three-prong (grounding) plug which mates with a standard three-prong wall outlet (Figure A).

  • Page 4: Control Panel

    All manuals and user guides at all-guides.com CONTROL PANEL IMPORTANT NOTES Vita-Mix machines come with several different control options. Please be sure you are following the ® instructions for your model. MOUNTING KITS: Mounting Kits, with detailed instructions, are available for both the countertop and wall mount Mix’n Machines.
  • Page 5 All manuals and user guides at all-guides.com Program Dial Pulse Switch Indicator Light Power ’ N MACHINE ADVANCE Switch Actuator Agitator Mix’n Machine Advance Programmable Model Pre-programmed with six blending options and pulse switch. COUNTERTOP ON/OFF Power Switch. This is a lighted switch. When light is lit, power is ON. Located on the front of the machine, the ON/OFF switch controls the power to the machine.
  • Page 6 All manuals and user guides at all-guides.com CONTROL PANEL IMPORTANT NOTES Vita-Mix machines come with several different control options. Please be sure you are following the ® instructions for your model. MOUNTING KITS: Mounting Kits, with detailed instructions, are available for both the countertop and wall mount Mix’n Machines.
  • Page 7 All manuals and user guides at all-guides.com Power Power Switch Switch Agitator Wall Mount Foot Pedal (sold separately) Countertop Mix’n Machine Standard Model COUNTERTOP ON/OFF Power Switch. Located on the front of the machine, the ON/OFF switch controls the power to the machine and starts the agitator. While plugged in, switch to ON to start blending and OFF to stop blending.

  • Page 8: General Instructions

    All manuals and user guides at all-guides.com GENERAL INSTRUCTIONS The Mix’n Machine combines a durable motor with different styles of agitators. By rapidly moving the cup up and around the agitator, a thorough mixing job can be accomplished. Some combinations may take more time depending on additives, product temperature, technique, and desired consistency of finished product.
  • Page 9 All manuals and user guides at all-guides.com and reach under the splash guard. Move the cup under the agitator and lift up so the agitator touches the bottom of the cup. See Figure 2. 5. Turn the machine ON to activate the agitator. Follow ADVANCE PROGRAMMABLE ICE CREAM MIXER instructions based on the specific model: •...
  • Page 10 All manuals and user guides at all-guides.com CONTINUED FROM PAGE 9 mix the product aggressively and thoroughly, so use of a Indicator Light cup holder or sturdy cup is recommended to prevent the agitator from going through the side of the cup. 7.

  • Page 11: Important Note

    The Mix’n Machine Advance Timer Model is preprogrammed with one pre-set timed blending cycle. The programs can be customized by using a programming chip or programmer software kit available from Vita-Mix Corporation. Call your distributor or Customer Service for more information.
  • Page 12 All manuals and user guides at all-guides.com AGITATORS CAUTION! SHOCK HAZARD. Unplug the machine before making any adjustments to the Agitator Shaft. Permanent Soft Ice Cream Agitator – Made of durable NSF-accepted Acetal, this non-metal agitator can be pushed up against the inside of paper or plastic cups with no damage to the cup.

  • Page 13: Splash Guard

    All manuals and user guides at all-guides.com SPLASH GUARD Because of their unique designs, the splash guards catch the product thrown from the agitator and shield the operator during mixing. On the countertop units, the splash guard pivots up and down to prevent thin drinks or desserts from splashing the operator.

  • Page 14: Care And Cleaning

    All manuals and user guides at all-guides.com CARE AND CLEANING Permanent Agitators 1. Fill a durable square or rectangular container to within 1 in. / 3 cm from the top with hot (110˚F / 43˚C) water containing mild liquid detergent (1 oz. per qt. / 30 ml per Ltr.). The container must be deep enough to submerge the entire agitator and the shaft.
  • Page 15 All manuals and user guides at all-guides.com 3. All stainless steel surfaces may be cleaned and disinfected with a commercial cleaning solution. However, do not spray any water or other fluids into the motor chamber. Do not use excess liquid around the switches, motor protector, or cord entry hole.

  • Page 16: Parts List

    All manuals and user guides at all-guides.com PARTS LIST Mix’n Machine Advance and Mix’n Machine Standard Countertop Models Item # Part 30019 Permanent Soft Ice Cream Agitator 30003 Removable/Reusable Agitator (10 pack) 30018 Aggressive/Permanent Hard Ice Cream Agitator 30023 Agitator Shaft – for countertop models 30015 Splash Guard –...
  • Page 17 All manuals and user guides at all-guides.com Kits Sold Separately: Conversion Kit (Permanent Soft/Hard Ice Cream Agitator To Removable/Reusable Agitator) Conversion Kit (Removable/Reusable Agitator To Permanent Soft Ice Cream Agitator) 30006 Conversion Kit (Removable/Reusable Agitator To Aggressive/Permanent Hard Ice Cream Agitator) 15668 Wall and Counter Sure-Support...
  • Page 18 All manuals and user guides at all-guides.com PARTS LIST Mix’n Machine Standard Wall Mount Model Item # Part 30019 Permanent Soft Ice Cream Agitator 30003 Removable/Reusable Agitator (10 pack) 30018 Aggressive/Permanent Hard Ice Cream Agitator 30034 Agitator Shaft – for wall mount models 30029 Splash Guard –...
  • Page 19 All manuals and user guides at all-guides.com Kits Sold Separately: Item # Part Conversion Kit (Permanent Soft/Hard Ice Cream Agitator To Removable/Reusable Agitator) 30004 Conversion Kit (Removable/Reusable Agitator To Permanent Soft Ice Cream Agitator) 30005 Conversion Kit – must be used with #30034 – sold separately (Removable/Reusable Agitator To Aggressive/Permanent Hard Ice Cream Agitator) 30000...

  • Page 20: Troubleshooting

    Regulate your mallet taps to move the shaft towards the center without overshooting. If you cannot fix your machine, call Vita-Mix Technical Support at 800-886-5235, or 440-235-0214. If outside the United States and Canada, contact your local Vita-Mix Distributor or telephone the Vita-Mix International Division at +1.440.782.2450 or email...

  • Page 21: Motor Protection

    All manuals and user guides at all-guides.com MOTOR PROTECTION The Mix’n Machine is equipped with a reset breaker mounted on the motor enclosure. See Figures 1 and 2. Should the motor be kept from turning (locked rotor) or otherwise be overloaded, the breaker will trip.
  • Page 22 3. Complete name, return address and phone number Your machine will be repaired or replaced (with equivalent equipment) at the option of the Vita-Mix Corporation and returned, at owner’s expense, in first class operating condition to the sender. Parts and labor will be at no charge when in accordance with all the conditions in these warranties.

  • Page 23: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS leave 6 in. / 15.24 cm for clearance 24 in. / 24 in. / 60.9 cm 60.9 cm agitator agitator 16.5 in. / 16.5 in. / 41.9 cm 41.9 cm agitator agitator 8.75 in.
  • Page 24 8615 Usher Road, Cleveland, Ohio 44138-2103 USA ©2007 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means or stored in a database or retrieval system without the written permission of the Vita-Mix Corporation. Printed in U.S.A.
