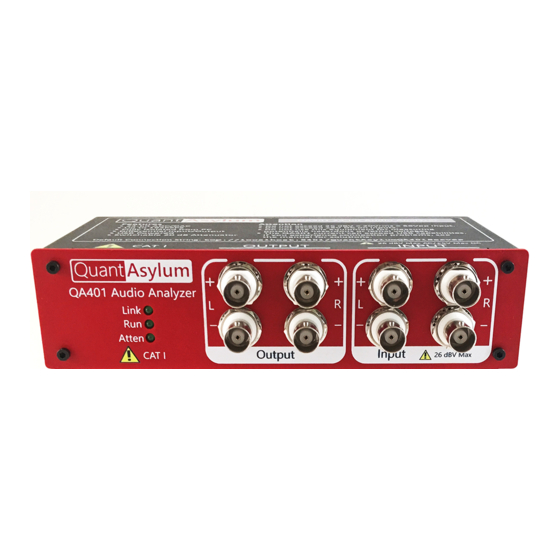

QuantAsylum QA401 Quick Start Manual

Hide thumbs Also See for QA401:

Advertisement

Quick Links

Download this manual
QA401 Quick Start

Advertisement

loading
Need help?

Need help?

Do you have a question about the QA401 and is the answer not in the manual?

Questions and answers

Related Manuals for QuantAsylum QA401

Summary of Contents for QuantAsylum QA401

  • Page 1 QA401 Quick Start...
  • Page 2 Download & Install the QA401 App Download the QA401 Application 2. Make sure you opt to install drivers 3. After installation is complete, click the icon on your desktop...
  • Page 3 Navigation: Scrolling the Panel Depending on your window size, the full control panel might not be visible. If it’s not, click part of the panel without any control and drag up or down to expose more UI...

  • Page 4: Connecting The Hardware

    Connecting the Hardware Plug in the QA401 hardware with a USB cable (not supplied). The OS should recognize the hardware, finish installing it and then you should see the application configure and connect. 2. Once connected, you’ll see an indication in the lower left corner...
  • Page 5 Run/Stop button. 2. Press the Run/Stop button. When it is illuminated, you are running. You should see yellow spectrum data appear. 3. Disable the attenuator. When you click the ATTEN button, you should hear a relay click inside the QA401.
  • Page 6 Shorting the inputs To measure the noise floor of the device, you need to short the inputs with a low impedance shorting block (not included). These are often called “shorting blocks” or “terminators”. You can find these for sale on Amazon or your favorite component supplier.
  • Page 7 Making a noise measurement In the application, press the PWR button. This will enable the reporting of measured power in the indicated bandwidth. Confirm this is around -120 dBFS. If not, verify you have correctly connected the input shorting blocks.
  • Page 8 Loopback Connection Leave the L- shorting block applied and using a BNC cable (not included) connect the left + output to the Left + input...
  • Page 9 Loopback THD Measurement Hold the control key while pressing the GEN1 button. This will bring up the GEN1 context menu. Change the amplitude to -16 dBFS. This is the sweet spot for THD measurements on the QA401...
  • Page 10 Using Knobs Press the THD button. Increase the FFT depth to 32K. To change a knob setting, click on the knob and drag up or down until you see the value you desire appear in the on-screen indication. A small “LED” will light on the knob to indicate it can be dragged.

  • Page 11: Thd Measurement

    THD Measurement With the output connected to the input, this is called “loopback” made. You should see a THD figure around -110 dBFS...

  • Page 12: Need More Help

    Need more help? Contact: Support@QuantAsylum.com The PDF manual is available from the application Select “Help -> Launch Help” Or, check in the installation directory C:\Program Files (x86)\QuantAsylum\QA401\Documentation...
