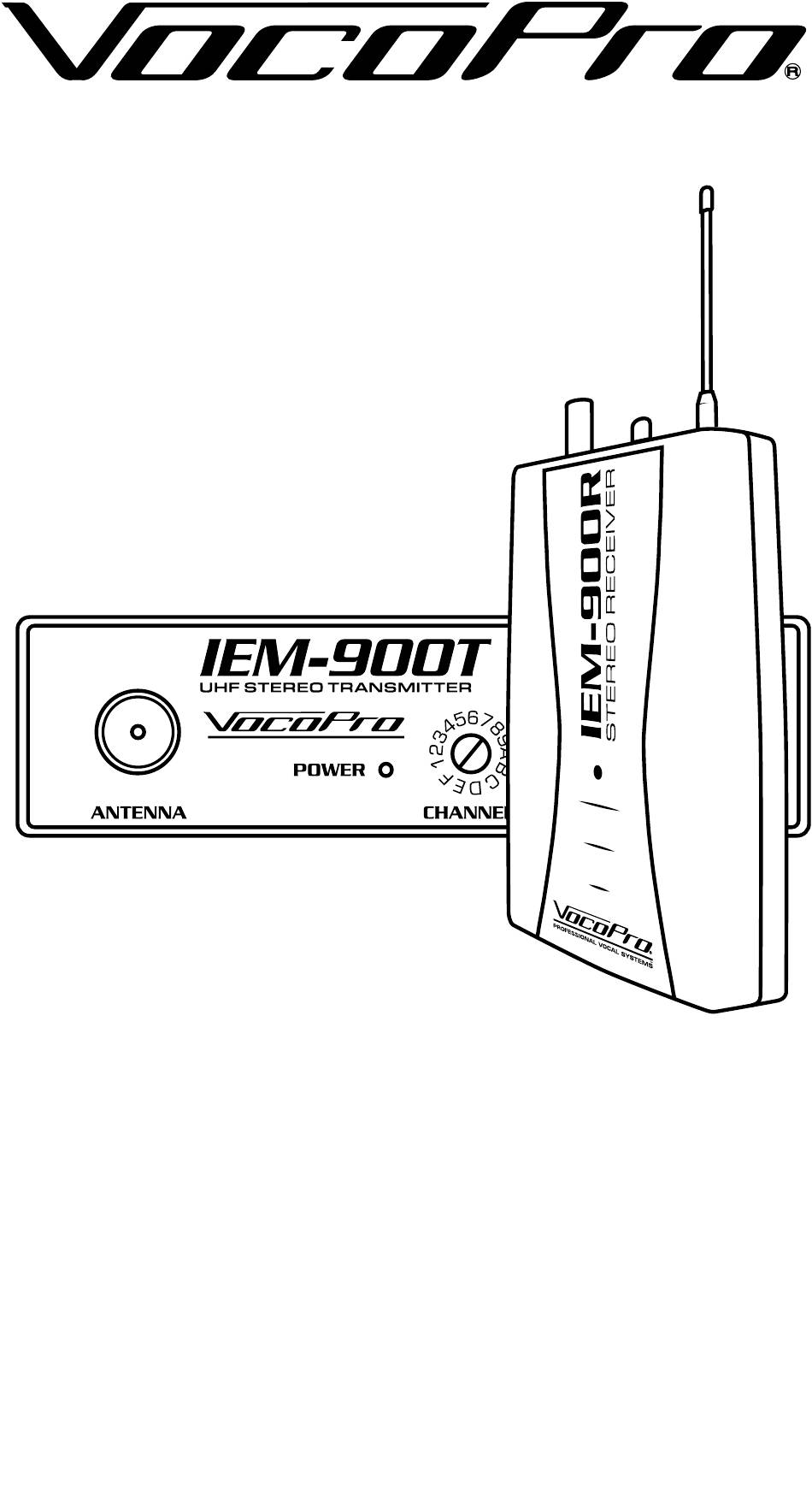

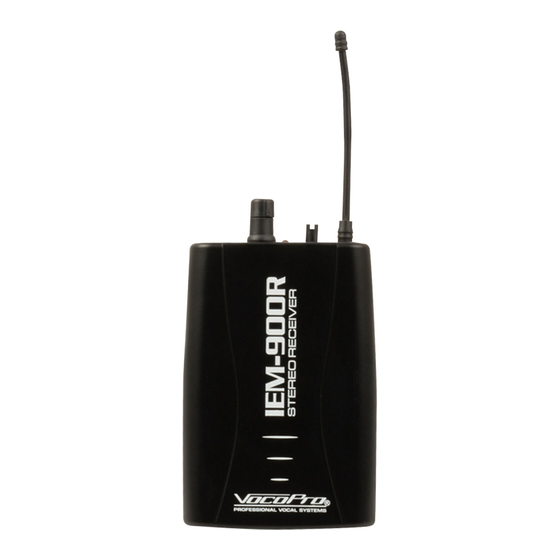

- Page 1 IEM-900R IEM-900T UHF Stereo Receiver and Transmitter OWNER’S MANUAL...
- Page 2 WELCOME And thank you for purchasing the IEM-900T/R from VocoPro. Along with quality products our commitment to customer satisfaction means we have technical support professionals ready to assist you. Please visit our website: www. vocopro.com for the latest information. We are at:...
-
Page 3: Legal Disclaimer
VocoPro hereby disclaims any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the... -
Page 4: California Prop 65 Warning
Printed Circuit Boards can expose you to chemicals including lead and lead compounds which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov 4 | VOCOPRO... - Page 5 The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and servicing instructions. WARNING: To reduce the risk of fire or electric shock, do not expose unit to rain or moisture. IEM-900R/T | 5...
- Page 6 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation slots. 6 | VOCOPRO Continues on next page...
- Page 7 16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. Continues on next page IEM-900R/T | 7...
- Page 8 THIS UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to...
- Page 9 (circuit breaker or fuse) circuits or install AC line filter(s). In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300-ohm ribbon lead, change the lead-in to coaxial type cable. Continues on next page IEM-900R/T | 9...
-
Page 10: Read This Before Operating Your Unit
If these corrective measures do not produce satisfactory results, please contact your local retailer authorized to distribute Vocopro products. If you can not locate the appropriate retailer, please contact Vocopro, 1728 Curtiss Court, La Verne, CA 91750. CAUTION: READ THIS BEFORE OPERATING YOUR UNIT 1. - Page 11 Recording of copyrighted material may infringe copyright laws. Voltage Selector (General Model Only) Be sure to position the voltage selector to match the voltage of your local power lines before installing the unit. IEM-900R/T | 11...
- Page 12 • IEM-900 Transmitter • Antenna • Power Adapter • 1/4 to 1/4 Audio Cable (x2) • 1/8 to 1/8 Stereo Cable • 1/4 to 1/8 Plug Adapter (x2) • 1/8 Stereo to Dual 1/4 Mono Splitter Cable 12 | VOCOPRO...
- Page 13 Inside the IEM-900R (Receiver) Box • IEM-900 Bodypack Receiver • USB Charging Cable • 1/8 to1/8 Stereo Cable USB is for power only, no computer access. IMPORTANT- Use charging cable only if rechargeable batteries have been installed. Charging regular alkaline batteries may cause explosion.
- Page 14 Audio Output: 1/8” stereo output X1. Audio Output level: <0.5V Power supply: DC 12V 350mA Power: 110/220V (DC12-18V Power Adapter) System Transmitter Dimensions: (L x W x H): 8.3’’ x 6.7’’ x 1.7’’ 14 | VOCOPRO Continues on next page...
-
Page 15: Power On The Device
(L x W x H): 4.3’’ x 2.5’’ x 0.8’’ Power On the Device Place 2, AA batteries (rechargeable or regular) into the back of the IEM-900R and replace cover. For the IEM-900T, plug in the DC-12V 350mA power adapter. - Page 16 6. INPUT RIGHT & LEFT- 1/4" inputs to connect from your mixer or amplifier. 7. AUX LOOP OUT- Direct output for monitoring. This connection will output audio even if the transmitter is off. 16 | VOCOPRO Continues on next page...
- Page 17 IEM-900T Diagram IEM-900R/T | 17...
- Page 18 IEM-900R Functions 1. RF– This LED indicates connection status. • If the LED is red, there is a connection between the receiver and transmitter. • If the LED is off, there is no connection. 2. Dual Function Control Dial (see also page 20) 2a- The top knob controls the power and volume.
- Page 19 • If LED is green, the battery level is good. • If LED is red, the battery level is low, change or recharge the batteries. 6. Headphone Out- 1/8 inch stereo output for listening to transmitted signal. Continues on next page IEM-900R/T | 19...
- Page 20 IEM-900R Functions 7. MIX / STEREO- When set to STEREO, it will preserve separation between left and right signals so the left input will go to the left headphone and right input to right headphone. When set to MIX, the left and...
- Page 21 Selecting a Clear Channel on the IEM-900R receiver Power ONLY the IEM-900R on; leave the IEM- 900T transmitter powered off. Change the Channel by twisting the Channel Select knob (Item #4, pg 19). Observe the RF indicator light as the channel changes: •...
-
Page 22: Frequently Asked Questions
A: Any type of rechargeable battery will work so long as they are AA. (i.e.: Lithium-Ion, Nickel Metal-Hydride, Nickel-Cadmium, etc.) Q: What do I do if I’m missing components from my box? A: Please call VocoPro regarding any missing or defective accessories at 1-800-678-5348. 22 | VOCOPRO... - Page 23 Notes:...
- Page 24 Our Team is Here to Help Please do not return to the retailer if you are having a technical issue operating or connecting the unit. Additional information and support can be found at- vocopro.com/support Toll Free: 800-678-5348 TEL: 909-593-8893 FAX: 909-593-8890 Email Tech Support at: techsupport@vocopro.com...
