Congratulations on your latest furniture purchase! Dorel Living furniture has been
developed with quality, convenience and style in mind. We trust it will provide you with
many years of exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new
furniture piece by taking a few minutes to go through this booklet. It contains important
information on our warranty and care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday
to Friday 8am to 5pm (EST) to answer any question you may have. For faster service,
always have the model number ready when calling our toll free number 1-800-295-1980
or emailing us at das@dorel.com .
For more great furniture ideas, check out our website at
You can also keep up to date on all the latest trends by liking our
Date of Purchase: _____ / _____ / _____
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact
our customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model Number:
DL7938B
DL7938W
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

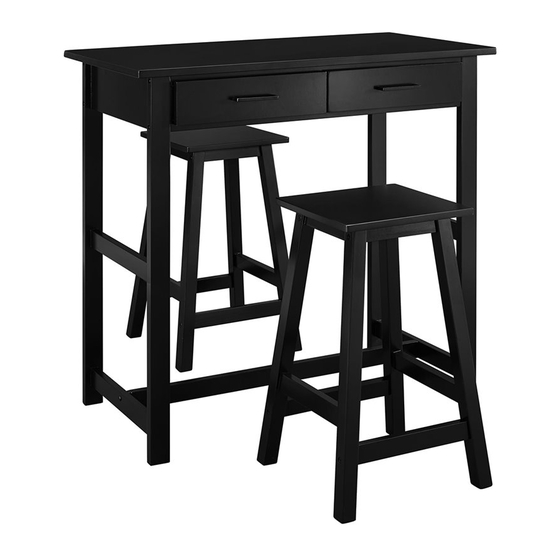

3 PIECE PUB SET
UPC Code:
0-65857-18281-1
0-65857-18282-8
www.dorelliving.com
Lot Number:
(taken from carton)
Color:
BLACK
WHITE
Facebook
page.
Advertisement
Related Manuals for Dorel Living DL7938B
Summary of Contents for Dorel Living DL7938B
- Page 1 0-65857-18282-8 DL7938W WHITE Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with quality, convenience and style in mind. We trust it will provide you with many years of exceptional comfort and service. Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by taking a few minutes to go through this booklet.
-
Page 2: Maintenance
CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No. -
Page 3: Hardware List
3 PIECE PUB SET DL7938W / DL7938B HARDWARE LIST ∅4mm x 25mm ∅1/4" x 36mm ∅8mm x 30mm CAM BOLT FLAT HEAD WOOD SCREW WOOD DOWEL 6 PCS 16 PCS 18 PCS ∅6mm x 3mm x 12mm ∅5/32" x 20mm ∅15mm x 12mm... -
Page 4: Parts List
3 PIECE PUB SET DL7938W / DL7938B PARTS LIST BACK RAIL STRETCHER TABLE TOP 1 PC 1 PC 1 PC LEFT SIDE PANEL RIGHT SIDE PANEL STOOL FRAME 1 PC 1 PC 4 PCS SEAT BOARD APRON SIDE STRETCHER 2 PCS... - Page 5 3 PIECE PUB SET DL7938W / DL7938B PARTS LIST DRAWER FRONT DRAWER BACK DRAWER LEFT SIDE PANEL 2 PCS 2 PCS 2 PCS DRAWER RIGHT SIDE DRAWER BOTTOM PANEL FRONT RAIL PANEL 2 PCS 1 PC 2 PCS...
- Page 6 3 PIECE PUB SET DL7938W / DL7938B STEP 1: Attach right and left drawer side (C & D) to drawer front (A) with flat head wood screws (2). Slide drawer bottom panel (E) into the grooves of the drawer sides (C & D).
- Page 7 3 PIECE PUB SET DL7938W / DL7938B STEP 2: Attach drawer stopper (8) to front rail (F) with round wood screws (4) using a Phillips head screwdriver (not included).
- Page 8 3 PIECE PUB SET DL7938W / DL7938B STEP 3: Attach left side panel (J) to front rail (F) and back rail (G) with barrel nut (13) and bolts (14). Attach stretcher (H) to left side panel (J) with wood dowel (3) and bolts (10).
- Page 9 3 PIECE PUB SET DL7938W / DL7938B STEP 4 Attach right side panel (K) to front rail (F) and back rail (G) with barrel nut (13) and bolts (14). Attach stretcher (H) to right side panel (K) with wood dowel (3) and bolts (10).
- Page 10 3 PIECE PUB SET DL7938W / DL7938B STEP 5: Insert cam bolts (1) to table top (I) with a Philips head screwdriver (not included).
- Page 11 3 PIECE PUB SET DL7938W / DL7938B STEP 6: Attach table top (I) to left and right side panel (J & K) and back rail (G) with cam lock (6) by rotating the cam lock 1/2 turn using the Philips screwdriver (not included).
- Page 12 3 PIECE PUB SET DL7938W / DL7938B STEP 7: Insert the drawers into the unit as shown. You've completed assembly of the table.
- Page 13 3 PIECE PUB SET DL7938W / DL7938B STEP 8: Attach aprons (N) and stretchers (O) to stool frames (L) with wood dowel (3) and bolts (10) as shown using Allen key (12).
- Page 14 3 PIECE PUB SET DL7938W / DL7938B STEP 9: Attach the assembled unit to seat board (M) with flat head wood screws (11) using a Phillips head screwdriver (not included). Repeat the step to assemble the other stool. NOTE: The screws will make their own holes. Do not use power tools to tighten...
- Page 15 3 PIECE PUB SET DL7938W / DL7938B CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 16: Customer Service
MODEL #: DL7938W / DL7938B Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
