Multiplex The Fresh Blender Instruction Sheet

Instruction Sheet
TOOLS REQUIRED
• Phillips Driver (Recommended Magnetic)
• Needle Nose Pliers
• Clean Towels
PARTS REQUIRED
• WBL-96-060B-FRU Duckbill Valve Kit (16 pieces)
- - OR - -
• WBL-96-060-FRU (2 pieces)
PREPARATION

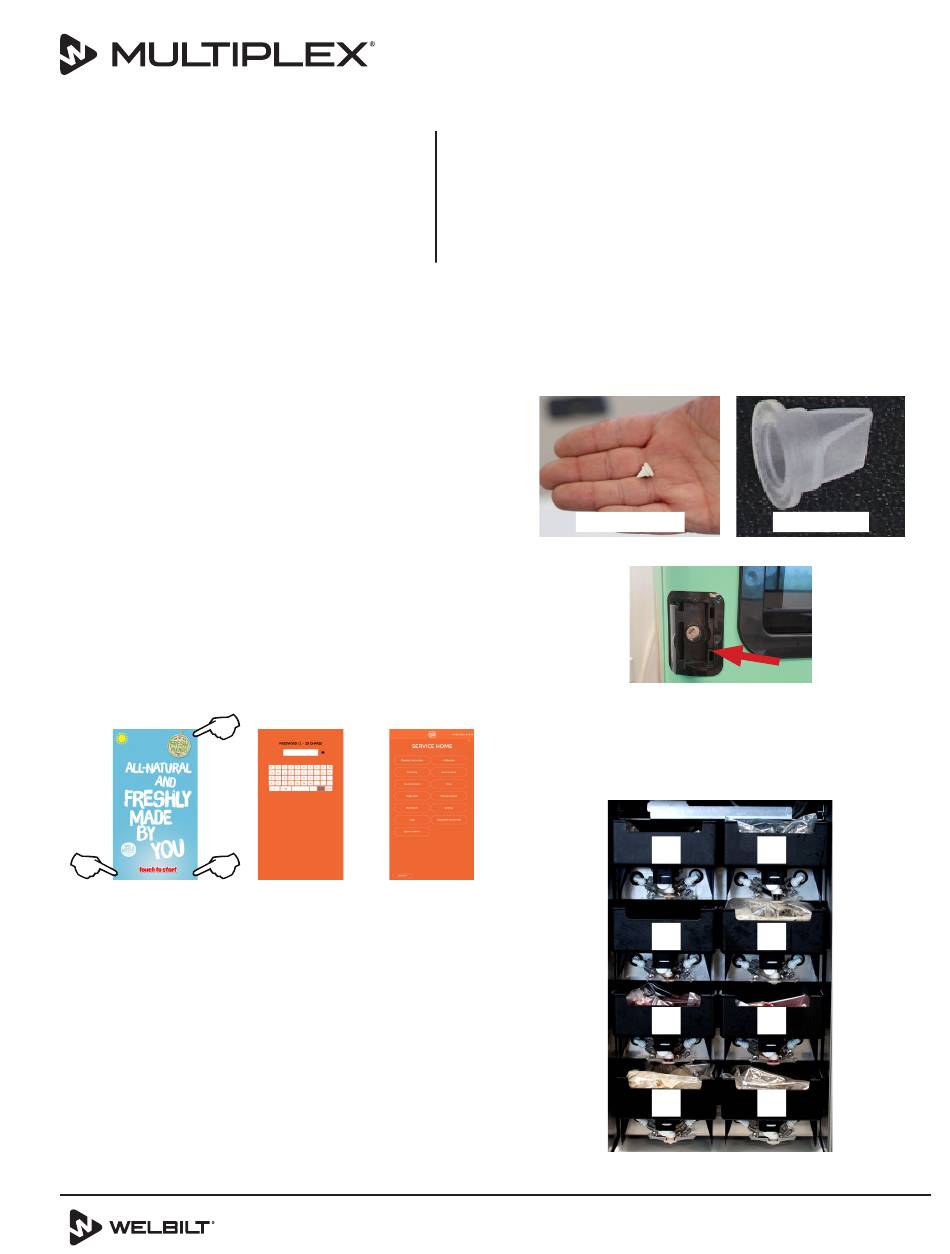

1. Enter the Service Menu.
A. Menu screens are hidden and will require the
SERVICE password. From start screen, touch the
three corners in the order shown to access the
password screen.
B. Enter password for SERVICE MENU and then press
ENTER.
3
1 2
2. Flush product lines.
A. Press SERVICE OUTPUTS.
B. Press CLEANING.
C. Place cup in dispense area.
D. Toggle the corresponding RINSE VALVE until only
water is dispensed into cup.
E. Remove cup and empty contents in store drain. Do
NOT pour down unit drain. Set cup aside.
645 PARK EAST BLVD SUITE 5, NEW ALBANY, IN 47150
Subject: FreshBlender Duckbill Valve Replacement
SCOPE: ALL MULTIPLEX FRESHBLENDER UNITS
3. Locate and set new duckbill valves aside. Verify new
duckbill valves are clear. Do NOT use white duckbill
valves.
NOTE: Old duckbill valves may be white or clear in color.
New duckbill valves MUST be clear.
WHITE VALVE
4. Unlock and open the top door.
5. Open bottom door to access lower refrigeration cabinet.
6. Locate sanitation fitting with duckbill valves that need
to be replaced. Sanitation fittings are located below
corresponding product bin slots.
NOTE: Picture below shows product bin slot numbers.
Document Number: MPX-i-055 June 28, 2021
800-689-0157 OR 844-724-CARE
WWW.MULTIPLEXBEVERAGE.COM
Refreshing the Experience
CLEAR VALVE
1 2
3 4
5 6
7 8
MULTIPLEX
1 of 3
