Summary of Contents for hayneedle NWF004-2

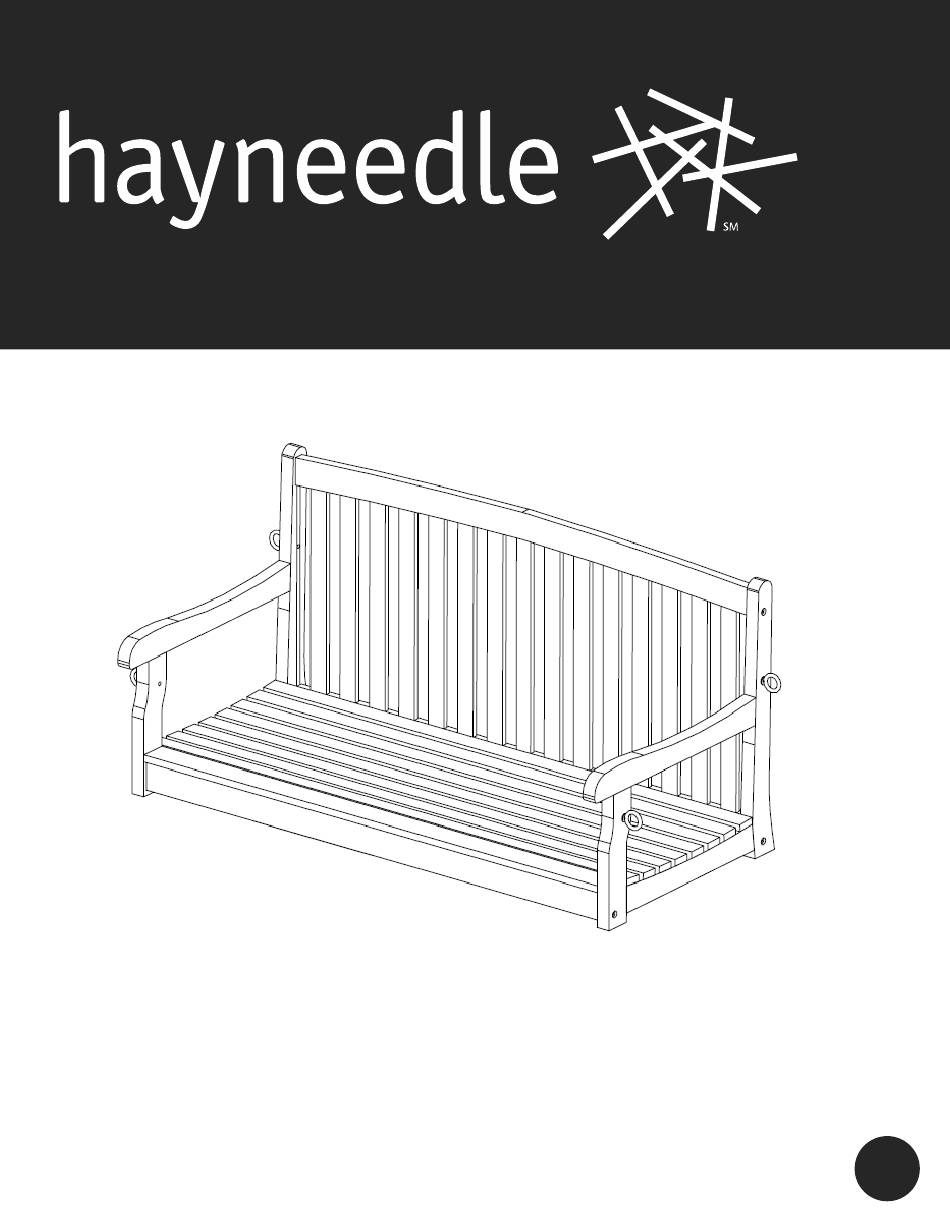

- Page 1 ITEM NAME: Coral Coast Pleasant Bay Painted Porch Swing – 5ft SKU: NWF004-2 & NWF005-2 For assistance with assembly, please contact Hayneedle Customer Care Center 1-888-880-4884...
- Page 2 PRE-ASSEMBLY PREPARATION: THIS PACKAGE MAY CONTAINSMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN • Please check that all parts and hardware are included before beginning assembly. • Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware.
- Page 3 HARDWARE LIST: HARDWARE NAME Q'TY Screw M7x90mm 6Pcs mmmm Allen key 4x60mm Hook bolt 4Pcs Washer 18xø8x2mm 4Pcs 4Pcs Screw M4x30mm Screw M4x40mm 4pcs 2Pcs STEP 1: Attach the Left Arm (A) to the back Frame (D) and two supports (C), using Allen key (2) to tighten four Screws 7x90mm (1).
- Page 4 STEP 2: Put the seat (E) on the frame then turn right side down and fix screw (5) and (6) like showed in picture to tighten the seat STEP 3: Attach the Chain (7) into the Hook bolt (3) Q’TY HARDWARE NAME 2 Set...
- Page 5 ANTI-TIP RESTRAINT ASSEMBLY INSTRUCTION MAINTENANCE AND CARE TIPS FOR OUTDOOR WOOD FURNITURE MAINTENANCE AND CARE TIPS FOR OUTDOOR WOOD FURNITURE The best way to preserve and extend the life of your outdoor wood furniture is to cover it with a waterproof cover when it's not in use, store it in a cool, dry place like a garage or shed during the winter months, and keep the wood hydrated with products like linseed oil a couple times per year.
