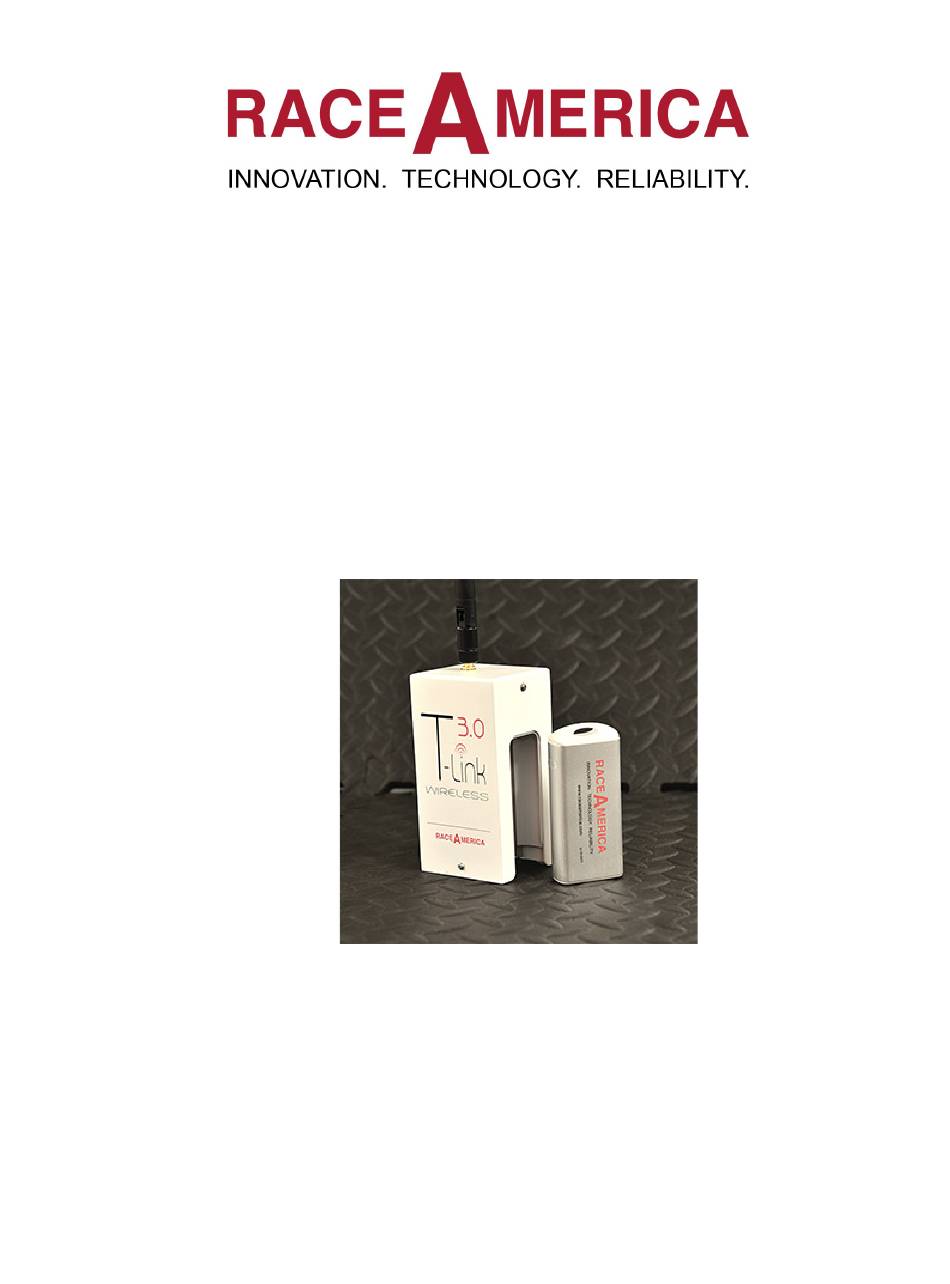

- Page 1 T-Link 3.0 Wireless Models 5840AW/AZ Rev A RaceAmerica Corporation 105 Bonaventura Drive San Jose, CA 95134 (408) 988-6188 www.raceamerica.com info@raceamerica.com Copyright 2021 RaceAmerica Corporation...
-
Page 2: Table Of Contents
RaceAmerica 5840 T-Link 3.0 Wireless Table of Contents PRODUCT INFORMATIONAL LINKS ...................3 PRODUCT OVERVIEW ........................4 PRODUCT SPECIFICATIONS ......................4 T-LINK SETUP ............................4 USING SPARE T-LINKS ........................5 BATTERY CHARGE ..........................5 TYPICAL TRACK SETUP .........................6 TECHNICAL DETAILS ........................7 Connection to a PC or Timer ......................7 Data String Protocol ........................7... -
Page 3: Product Informational Links
RaceAmerica 5840 T-Link 3.0 Wireless PRODUCT INFORMATION LINKS RaceAmerica Website www.raceamerica.com RaceAmerica Online Store store.raceamerica.com Raceamerica Online Forum www.raceamerica.com/forum Product Warranty www.raceamerica.com/legal.html Service & Repairs www.raceamerica.com/service.html Technical Assistance www.raceamerica.com/techcall.html Owner’s Manuals www.raceamerica.com/prodpdf.html Mounting Diagrams www.raceamerica.com/mountpdf.html Product Catalog www.raceamerica.com/catalog.html... -
Page 4: Product Overview
RaceAmerica 5840 T-Link 3.0 Wireless PRODUCT OVERVIEW AVAILABLE OPTIONS T-Link 3.0 Wireless replaces track cables normally 05-5825 Cable for Ext Sensor 25ft used to connect track sensors to the timing system. 6070T3 Blow Molded Carry Case Model 5840 T-Link 3.0 connects to an external 4591A High gain antenna track sensor using a short interconnect track cable. -
Page 5: Using Spare T-Links
RaceAmerica 5840 T-Link 3.0 Wireless receive data indication. It may be easier to align to the new ID code. Unplug the Reconfig Jumper ID A and ID B with 4520 powered off. The 4520 and connect any cables to the T-Link 3.0 unit for initiates the transmit/receive sequence, so the LED normal use. -
Page 6: Typical Track Setup
RaceAmerica 5840 T-Link 3.0 Wireless TYPICAL TRACK SETUP Model 5840 T-Link 3.0 05-5825 Interconnect Cable 5140 Track Sensor Model 4520UIDZ USB Interconnect Cable... -
Page 7: Technical Details
RaceAmerica 5840 T-Link 3.0 Wireless The error codes are sent in the format of: TECHNICAL DETAILS <id> E <error code> 0000000 Connection to a PC or Timer: (example: AE3000000) The output of the 4520UIDZ USB Wireless E1 - Bad trigger data on ID B, C, D, E, F or G unit has the following:. -
Page 8: Support Agreements
RaceAmerica 5840 T-Link 3.0 Wireless SUPPORT AGREEMENTS Support agreements are available from RaceAmerica providing Telephone Assistance on technical issues and operational questions, repair and/or replacement of hardware failures, Software and Firmware updates and bug reporting, and Annual Preventive Maintenance on all system track sensors and beam emitter units. - Page 9 RaceAmerica 5840 T-Link 3.0 Wireless REVISION HISTORY 01/13 - Initial release 07/14 - Logo update 03/15 - T-Link 2 with Power Safety Lock picture...
